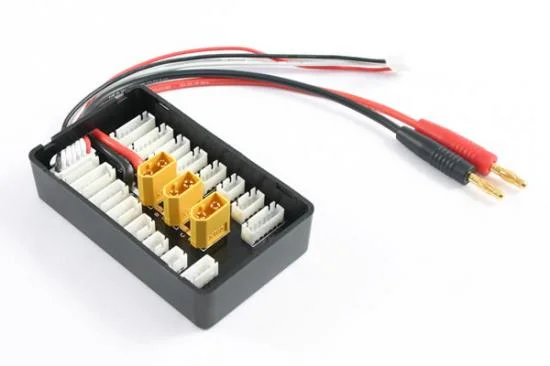

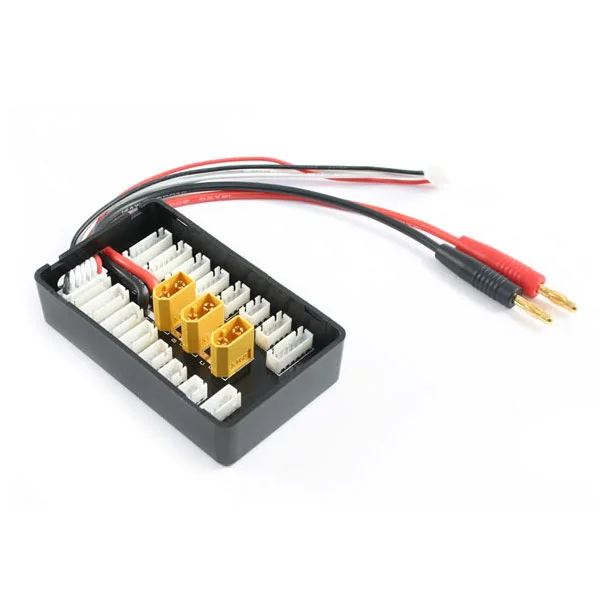

Parallel Charging Board (Paraboard) - XT60 / XH
Brand: eTronix
Part No: ET0290
Shadow Stock: Usually ships next day
The eTronix Parallel Charging Board (Paraboard) XT60/XH ET0290 lets you charge multiple lithium (LiPo) packs in parallel with a balance charger, saving significant time at the bench. Designed to handle high currents, it supports charging 1 to 3 packs from 2S up to 6S using XT60 main connectors and XH balance ports.
Key Features
- Parallel charge between 1 and 3 batteries simultaneously with a balance charger
- Supports 2S–6S via three sets of XH balance ports and three XT60 main plugs
- Ports and connectors are wired in parallel, allowing the plug and balance port to be matched as needed
- 2 oz copper PCB with heavily tinned main power circuit for high current handling
- Tested to 20 A continuous current; suitable for short loads up to 30 A (10–30 minutes)
- Already wired in parallel—simply connect each battery’s charge and balance leads
Important Notes
- Ensure all connected batteries have the same cell count (2S–6S) before charging in parallel
- Use only with a compatible balance charger
Engineered with selected high-quality components, the eTronix ET0290 ParaBoard is a practical RC charging accessory for efficient multi-pack charging using XT60 and XH connections.
Secured by Stripe
The ParaBoard is to be used with a balance charger to simultaneously charge multiple lithium batteries in parallel. By using this method you can significantly save time on the battery charge process. It can be used to connect between 1 to 3 packs of batteries in parallel charge.
Each board has three set balance ports, from 2S-6, and three plugs. Since these ports and connectors are arranged in parallel, a plug and a balance port can be randomly matched for battery charge. The ParaBoard can be used for charging up to three batteries at the same time.
ParaBoard is made of selected high quality components. The PCB is made of two ounce copper and the main power circuit is heavily tinned to allow the use of high current. ParaBoard products have been fully tested under 20 A continuous current, and is safe to be load at 30A for a short time (10 - 30 minutes).
The board is already wired in parallel, all you need to do is plug your batteries’ charge and balance connectors to the board - ensuring that all the batteries are the same cell count. Each board can charge up to three batteries, from 2S up to 6S, at up to a 30A charge rate (20 Amp Continuous)
Key Info:
- Brand: eTronix
- Part No: ET0290
- Barcode: 5055323951244
