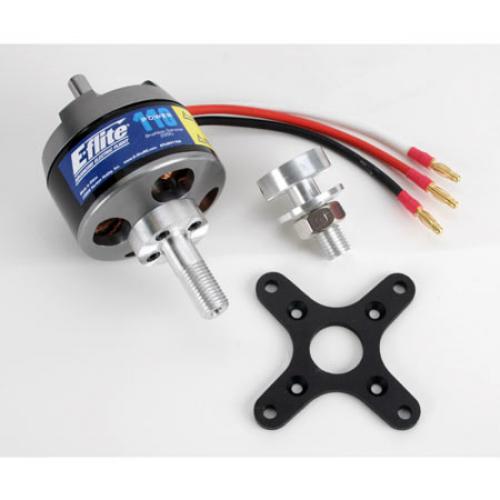

Power 110 BL Outrunner Motor 295KV

The Power 110 is designed to deliver clean and quiet power equivalent to or surpassing the power of a 110-size 2-stroke glow engine for sport and scale airplanes weighing 9 to 15 pounds (4 to 6.8 kg), 3D airplanes up to 11 pounds (5 kg), or models requiring up to 2000 watts of power.

It will provide excellent performance in the new Hangar 9 Funtana X 100 ARF or ShowTime 4D 90 ARF. The Power 110 provides perfect power for the Ultra Stick Lite 120 ARF.

• Equivalent to or surpassing the power of a 110-size 2-stroke glow engine for 9–15 lb (4–6.8 kg) airplanes
• Ideal for 3D airplanes up to 11 lb (5 kg)
• High-torque, direct-drive alternative to inrunner brushless motors

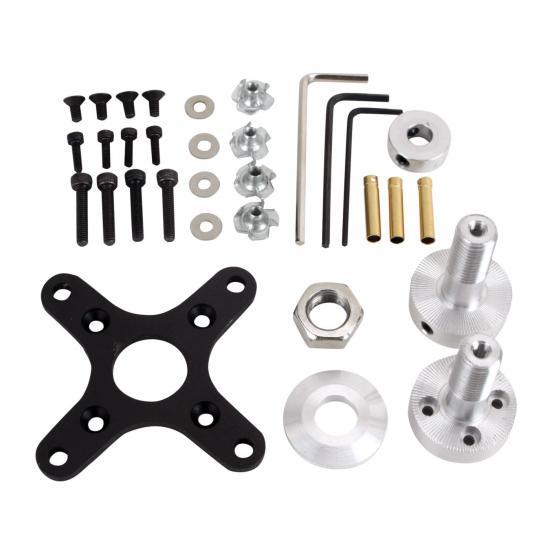

• Includes mount and mounting hardware
• High-quality construction with ball bearings and hardened 8mm steel shaft
• Includes two 12mm prop shaft adapters tapped out for 10–32 threads
• Ideal for models requiring up to 2000 watts of power
• External rotor design for better cooling
• Slotted 14-pole outrunner design

• Application: Airplane
• Bearings or Bushings: One 8 x 19 x 6mm bearing and Two 8 x 16 x 5mm Bearings
• Cells: 24–32 Ni-MH/Ni-Cd or 8S–9S Li-Po
• Continuous Current: 51A +
• Idle Current (Io): 1.20A @ 10V
• Maximum Burst Current: 65A (15 sec)
• Motor Design: Outrunner
• Overall Diameter: 63mm (2.50 in)
• Overall Length: 54mm (2.10 in)
• Power Plant Size : 60-110 Electric
• RPM/Volt (Kv): 295
• Recommended Prop Range: 17x8 to 19x10
• Resistance (Ri): .03 ohms
• Shaft Diameter: 8mm (.3 in) (Includes two 12mm threaded prop shaft adapters with 1.5 pitch)
• Size: 110 & Up
• Speed Control: 85A High Voltage Brushless
• Type: Brushless outrunner
• Voltage: 28.2–38.4
• Weight: 490 g (17.5 oz)
• Wire Gauge: 13
