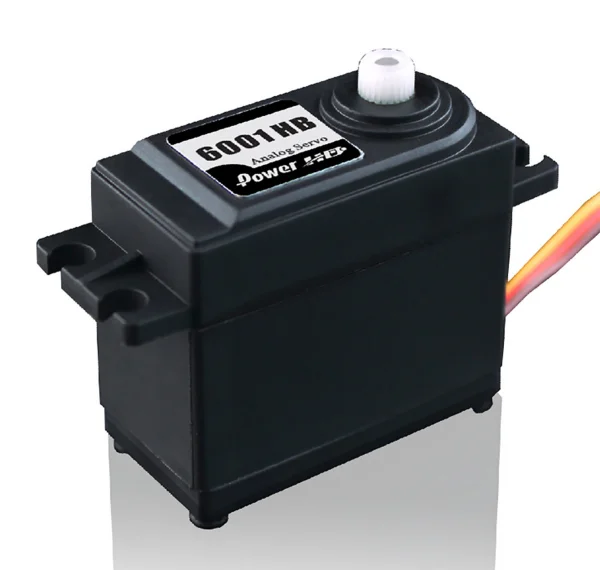

Power HD 6001HB Servo - 6.7Kg - 0.14s

The Power HD 6001HB (part number HD-6001HB) is a 4.8–6.0 V DC servo featuring a nylon/plastic gear train, dual ball bearings and a DC motor. It delivers up to 6.7 kg-cm torque with a 0.14 s speed at 6.0 V, in a 40.7 x 20.5 x 39.5 mm case weighing 43 g.

Key Specifications

• Torque: 5.8 kg-cm (4.8 V); 6.7 kg-cm (6.0 V)
• Speed: 0.16 s (4.8 V); 0.14 s (6.0 V)
• Operating Voltage: 4.8–6.0 V DC
• Weight: 43.0 g (1.52 oz)
• Bearings: Ball Bearing x 2
• Motor Type: DC motor
• Gear Type: Plastic (nylon)
• Operating Temperature: -20°C to 60°C
• Signal/Frequency: 1520 μs / 50 Hz
• Size: 40.7 x 20.5 x 39.5 mm (1.60 x 0.81 x 1.56 in)
