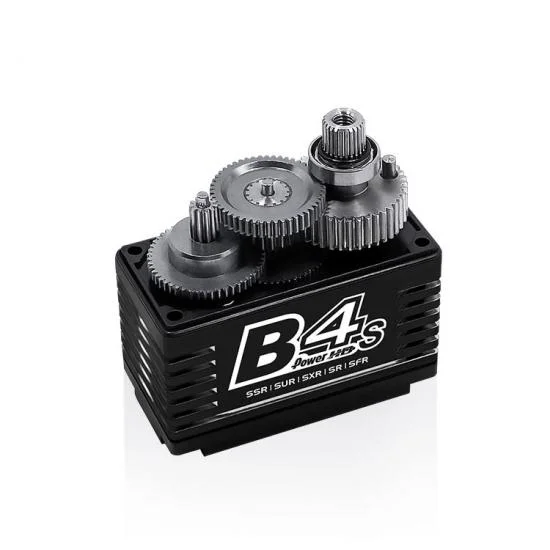

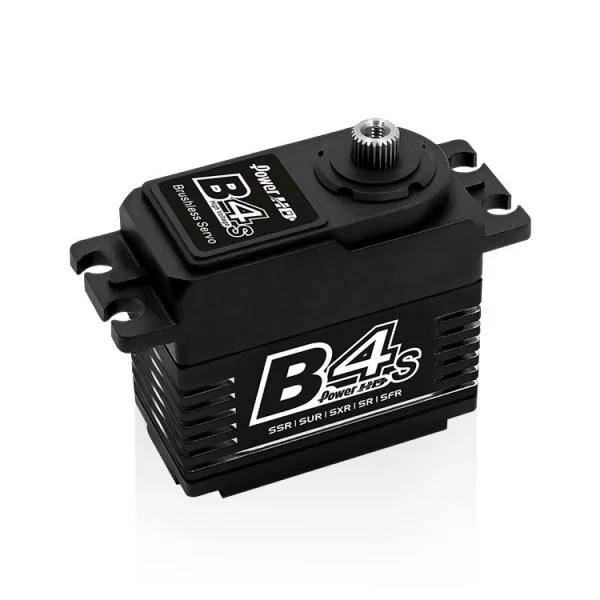

Power HD B4S HV MG Brushless Servo - 32kg - 0.065s — image 1 of 2
Power HD B4S HV MG Brushless Servo - 32kg - 0.065s — image 2 of 2
Power HD B4S HV MG Brushless Servo - 32kg - 0.065s
Power HD B4S HV MG Brushless Servo - 32kg - 0.065s

Power HD B4S Brushless Servo 32kg 0.065s HV MG

Brand: Power HD

Part No: HD-B4S

£84.14 RRP £93.49

Shadow Stock: Usually ships within 4-5 days

Collect Instore

Finance options available at checkout.

Request Price Match Ask a Question Write a Review

Description

The Power HD B4S HV MG Brushless Servo (HD-B4S) delivers high torque and rapid response in a standard-size footprint. Offering up to 32.0 kg-cm at 8.4V with a swift 0.065 s transit time, it pairs a brushless motor with a titanium and steel geartrain and dual ball bearings for precise, consistent control.

Operating across 6.0–8.4V, the B4S is engineered for smooth movement and durability, with a robust case size of 41.0 x 20.5 x 38.3 mm and a 67 g weight. Its control electronics run a 1520µs / 333 Hz working frequency for responsive performance.

Key Specifications

  • Torque: 21.0 kg-cm (6.0V), 25.0 kg-cm (7.4V), 32.0 kg-cm (8.4V)
  • Speed: 0.085 s (6.0V), 0.075 s (7.4V), 0.065 s (8.4V)
  • Operating Voltage: 6.0–8.4 V DC
  • Motor Type: Brushless
  • Gear Type: Titanium & Steel
  • Bearing Type: Dual ball bearings
  • Working Frequency: 1520µs / 333 Hz
  • Operating Temperature: -20 to 60°C
  • Size: 41.0 x 20.5 x 38.3 mm
  • Weight: 67.0 g
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Power HD B4S HV MG Brushless Servo - 32kg - 0.065s Manuals & Guides

Specifications

Torque(6.0V): 21.0 kg-cm (291.6 oz/in) Torque(7.4V): 25.0 kg-cm (347.2 oz/in) Torque(8.4V): 32.0 kg-cm (444.4 oz/in) Speed: 0.085 sec (6.0V) ¦ 0.075 sec (7.4V)¦ Speed: 0.065 sec (8.4V) Operating Voltage: 6.0 ~ 8.4 DC Volts Weight: 67.0 g (2.36 oz) Bearing Type: Ball Bearing x 2 Motor Type: Brushless Motor Gear Type: Titanium & Steel Operating Temperature: -20~60°C Working frequency: 1520µs / 333hz Size: 41.0 x 20.5 x 38.3 mm ( 1.61 x 0.81 x 1.51 in)
  • Torque(6.0V): 21.0 kg-cm (291.6 oz/in)
  • Torque(7.4V): 25.0 kg-cm (347.2 oz/in)
  • Torque(8.4V): 32.0 kg-cm (444.4 oz/in)
  • Speed: 0.085 sec (6.0V) │ 0.075 sec (7.4V)│ 0.065 sec (8.4V)
  • Operating Voltage：6.0 ~ 8.4 DC Volts
  • Weight: 67.0 g (2.36 oz)
  • Bearing Type：Ball Bearing x 2
  • Motor Type：Brushless Motor
  • Gear Type：Titanium & Steel
  • Size：41.0 x 20.5 x 38.3 mm ( 1.61 x 0.81 x 1.51 in)
  • Torque(6.0V): 21.0 kg-cm (291.6 oz/in)
  • Torque(7.4V): 25.0 kg-cm (347.2 oz/in)
  • Torque(8.4V): 32.0 kg-cm (444.4 oz/in)
  • Speed: 0.085 sec (6.0V) │ 0.075 sec (7.4V)│ 0.065 sec (8.4V)
  • Operating Voltage：6.0 ~ 8.4 DC Volts
  • Weight: 67.0 g (2.36 oz)
  • Bearing Type：Ball Bearing x 2
  • Motor Type：Brushless Motor
  • Gear Type：Titanium & Steel
  • Size：41.0 x 20.5 x 38.3 mm ( 1.61 x 0.81 x 1.51 in)


Key Info:
  • Brand: Power HD
  • Part No: HD-B4S
  • Barcode: 6929188004003
  • Max Voltage: 7.4v+ (LiPo)
  • Gear Material: Metal
