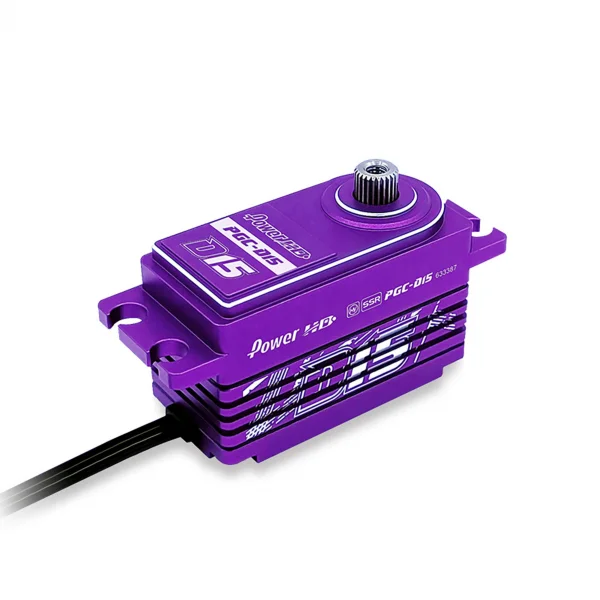

Power HD D15 Purple Low Profile Servo Aluminium Case - 18kg - 0.085s

The Power HD D15 Purple Low Profile Servo (HD-D15P) combines a purple aluminium case with a compact low-profile form factor. It features a coreless motor, titanium & steel gear train and dual ball bearings, designed for dependable performance across a 6.0–8.4V operating range.

With transit speeds down to 0.085s and torque up to 18.0 kg-cm at 8.4V, the D15 delivers fast response and strong holding power in a small footprint. Detailed specifications are listed below to aid installation and setup.

Key Specifications

• Torque: 13.5 kg-cm (6.0V), 16.5 kg-cm (7.4V), 18.0 kg-cm (8.4V)
• Speed: 0.10 s (6.0V), 0.095 s (7.4V), 0.085 s (8.4V)
• Operating voltage: 6.0–8.4 V DC
• Motor: Coreless
• Gears: Titanium & steel
• Bearings: Dual ball bearings (x2)
• Working frequency: 1520 µs / 333 Hz
• Operating temperature: -20 to 60°C
• Weight: 55.0 g
• Size (L x W x H): 41.0 x 20.0 x 26.3 mm
