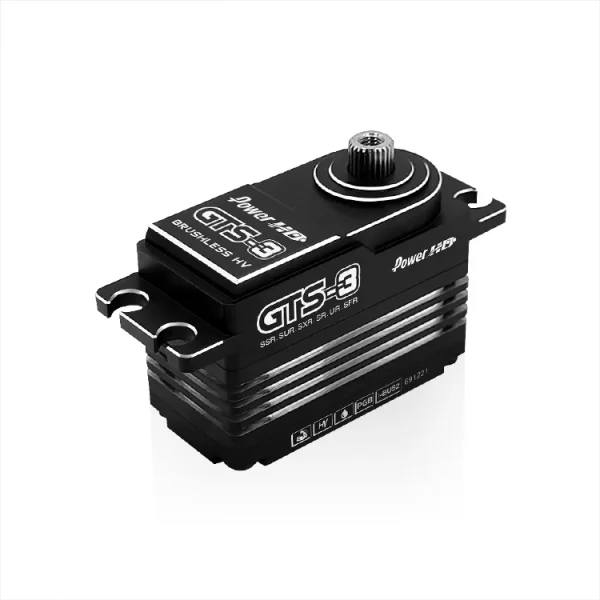

Power HD GTS 3 HV Low Profile Brushless Servo - 30kg - 0.055s

The Power HD GTS-3 HV Low Profile Brushless Servo delivers rapid response and strong holding power in a compact case. With up to 30.0 kg-cm of torque and a 0.055 s transit speed at 8.4V, this CNC aluminium, digital brushless unit is designed for high performance and consistent control. Part number HD-GTS-3.

Key Features

• Four-pole brushless motor: high performance, long life-span, heat-resistant and faster response
• HV operation: 6.0–8.4V DC
• Dual ball bearings for smooth, precise movement

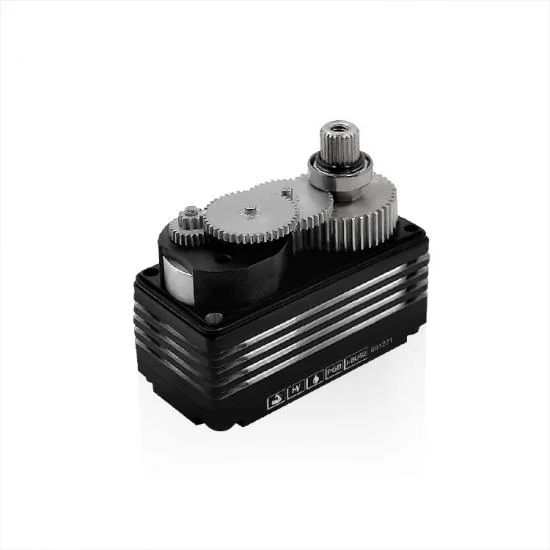

• 7075 + steel gear train for durability
• Supports Power HD program box PG-CB63
• Supports Flysky radio i-BUS2 protocol for servo parameter setup, data logging and warning functions
• Suggested compatibility: high-speed radio modes
  • Noble NB4 Pro: NOR / SR / SFR
  • Futaba: NOR / SR / UR
  • Sanwa: NOR / SHR / SSR / SUR / SXR
• Working frequency: 1520 / 1666 Hz
• Operating temperature: -20 to 60°C
• Max current: 4.0 A
• Low profile case: 41.0 × 20.0 × 29.0 mm; weight: 63 g

Performance Specifications

• Torque @6.0V: 20.0 kg-cm (277.7 oz-in)
• Torque @7.4V: 26.0 kg-cm (361.1 oz-in)
• Torque @8.4V: 30.0 kg-cm (416.6 oz-in)
• Speed @6.0V: 0.083 s
• Speed @7.4V: 0.067 s
• Speed @8.4V: 0.055 s

Construction

• Motor type: Brushless
• Bearing type: Ball bearing ×2
• Gear type: 7075 + steel

Size-conscious installations benefit from the 20 mm low profile height, while the robust gear train and brushless drive offer dependable performance across a wide voltage range. The GTS-3 HV blends speed, torque and control for demanding RC applications.
