Power HD GTS 6 HV Brushless Servo - 60kg - 0.07s

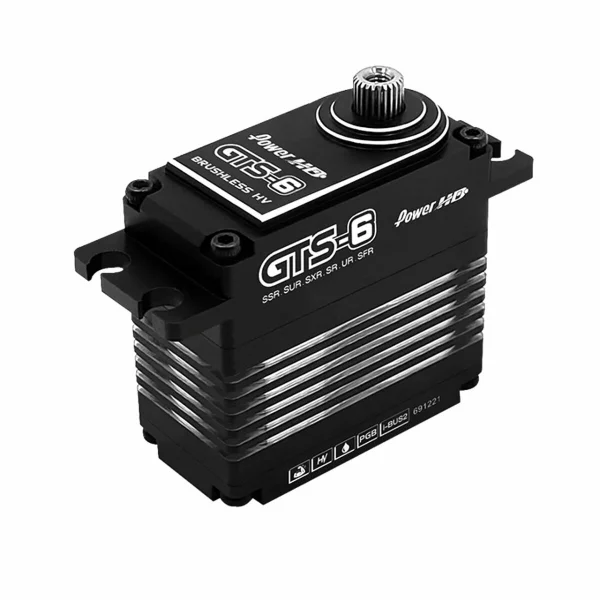

The Power HD GTS-6 HV Brushless Digital Servo (HD-GTS-6) delivers impressive holding power and speed, combining a four-pole brushless motor with CNC construction and hardened 7075/steel gearing. At 8.4V it produces up to 60.0 kg-cm of torque with a rapid 0.07 s transit time, supported by dual ball bearings for smooth, consistent operation.

Features

• Four-pole brushless motor for high performance, long life, heat resistance and fast response
• High-voltage operation across 6.0–8.4 V DC
• Torque: 48.0 kg-cm (6.0V), 56.0 kg-cm (7.4V), 60.0 kg-cm (8.4V)
• Speed: 0.10 s (6.0V), 0.08 s (7.4V), 0.07 s (8.4V)

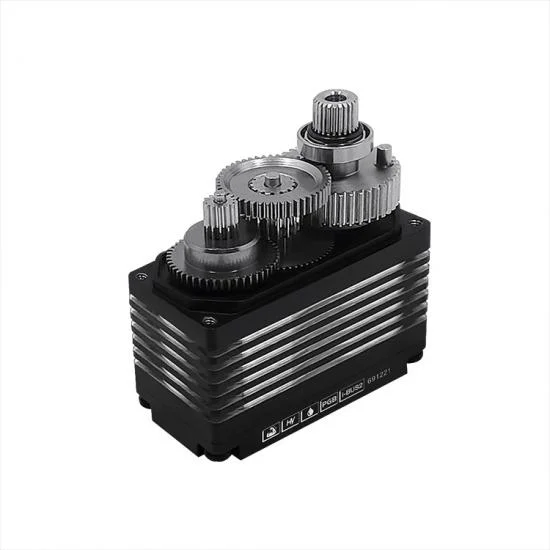

• Dual ball bearings and 7075/steel gear train
• Programmable via Power HD PG-CB63 program box for parameter setup, data logging and warnings
• Suggested compatibility with FLYSKY i-BUS2 protocol
• Suggested compatibility with high-speed radio modes: Noble NB4 Pro (NOR/SR/SFR), Futaba (NOR/SR/UR), SANWA (NOR/SHR/SSR/SUR/SXR)
• Working frequency: 1520 / 1666 Hz
• Max current: 7.5 A

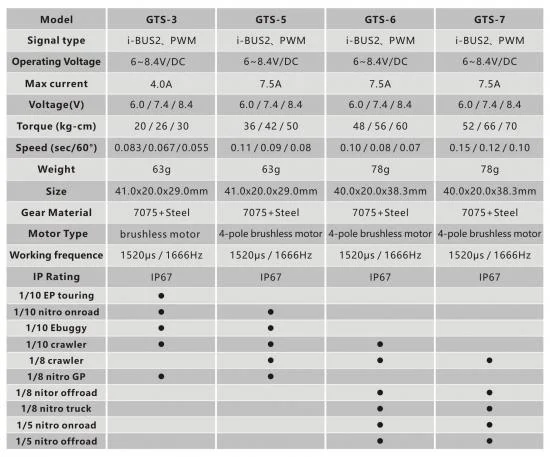

Specifications

• Operating voltage: 6.0–8.4 V DC
• Motor type: Brushless
• Bearing type: 2 x ball bearings
• Gear type: 7075 + steel
• Case size: 40.0 x 20.0 x 38.3 mm (1.57 x 0.79 x 1.51 in)
• Weight: 78 g (2.75 oz)
• Operating temperature: -20 to 60°C

Engineered for demanding RC applications, the GTS-6 balances extreme torque with fast response and robust build quality, making it a strong choice where precision, speed and durability are required.
