Power HD GTS-7 HV Brushless Servo 70kg 0.10s
Brand: Power HD
Part No: HD-GTS-7
$190.78
RRP $211.97
Shadow Stock: Usually ships within 4-5 days
Finance options available at checkout.
Description

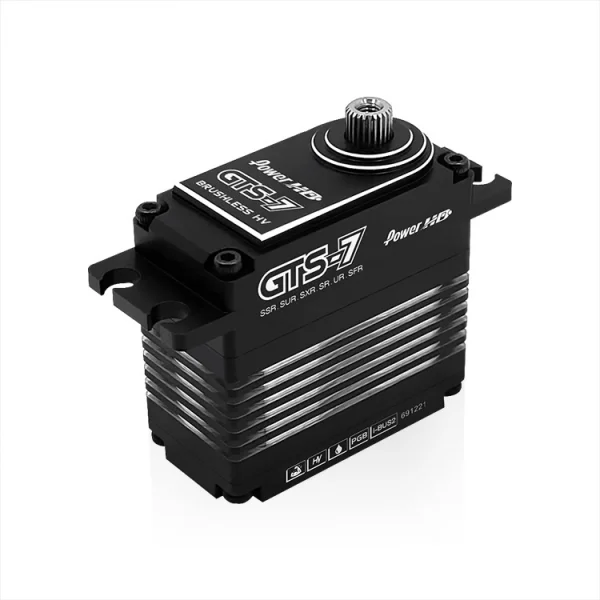

The Power HD GTS-7 HV CNC Brushless Digital Servo (HD-GTS-7) delivers a formidable 70kg-cm of torque at 8.4V with a rapid 0.10s transit speed. Built around a four‑pole brushless motor, it is designed for high performance, fast response, heat resistance and long service life. Precision 7075+steel gearing and dual ball bearings provide smooth, durable output under heavy loads.
Radio and Protocol Support
- Supports FlySky i-BUS2 for servo parameter setup, data logging, warning and related functions
- High-speed mode support: Noble NB4 Pro (NOR / SR / SFR), Futaba (NOR / SR / UR), SANWA (NOR / SHR / SSR / SUR / SXR)
- Compatible with the Power HD program box PG-CB63
Key Features
- Four-pole brushless motor for high performance and fast response
- HV operation: 6.0–8.4V DC, max current 7.5A
- Dual ball bearings and 7075+steel gear train
- Working frequency: 1520 / 1666 Hz
- Operating temperature: -20 to 60°C
Performance
- Torque: 52.0 kg-cm (6.0V) / 66.0 kg-cm (7.4V) / 70.0 kg-cm (8.4V)
- Speed: 0.15s (6.0V) / 0.12s (7.4V) / 0.10s (8.4V)
Specifications
- Operating voltage: 6.0–8.4V DC
- Size: 40.0 x 20.0 x 38.3 mm (1.57 x 0.79 x 1.51 in)
- Weight: 78 g (2.75 oz)
- Bearing type: Ball bearing x2
- Motor type: Brushless
- Gear type: 7075+Steel
Secure Payments
Secured by Stripe
Power HD GTS 7 HV Brushless Servo - 70kg - 0.10s Manuals & Guides
How-To Guides & Articles
Specifications
PowerHD GTS-7 HV CNC Brushless Digital Servo 70.0KG/[email protected]
*Support FLYSKY radio's i-BUS2 protocol
servo parameter setup / data logging / warning / and other functions
*Support the high speed mode of brands' radio
Noble NB4 Pro modes: NOR / SR / SFR
Futaba modes: NOR / SR / UR
SANWA modes: NOR / SHR /SSR / SUR / SXR
*Support the Power HD program box PG-CB63
*four-pole brushless motor
high performance/ long Life-span/ heat-resistant/ faster response
Torque(6.0V): 52.0 kg-cm / (722.1 oz/in)
Torque(7.4V): 66.0 kg-cm / (916.6 oz/in)
Torque(8.4V): 70.0 kg-cm / (972.1 oz/in)
Speed: 0.15 sec (6.0V) ©¦ 0.12 sec (7.4V)
Speed: 0.10 sec (8.4V)
Operating Voltage: 6.0 ~ 8.4 DC Volts
Weight: 78 g (2.75 oz)
Bearing Type: Ball Bearing x 2
Motor Type: Brushless Motor
Gear Type: 7075+Steel
Operating Temperature: -20~60°C
Working frequence: 1520 / 1666hz
Size: 40.0 x 20.0 x 38.3 mm ( 1.57 x 0.79 x 1.51 in)
Max current: 7.5A
Key Info:
- Torque(6.0V): 52.0 kg-cm / (722.1 oz/in)
- Torque(7.4V): 66.0 kg-cm / (916.6 oz/in)
- Torque(8.4V): 70.0 kg-cm / (972.1 oz/in)
- Speed: 0.15 sec (6.0V) │ 0.12 sec (7.4V)
- Speed: 0.10 sec (8.4V)
- Operating Voltage: 6.0 ~ 8.4 DC Volts
- Weight: 78 g (2.75 oz)
- Bearing Type: Ball Bearing x 2
- Motor Type: Brushless Motor
- Gear Type: 7075+Steel
- Max current: 7.5A
- Size: 40.0 x 20.0 x 38.3 mm ( 1.57 x 0.79 x 1.51 in)
- Torque(6.0V): 52.0 kg-cm / (722.1 oz/in)
- Torque(7.4V): 66.0 kg-cm / (916.6 oz/in)
- Torque(8.4V): 70.0 kg-cm / (972.1 oz/in)
- Speed: 0.15 sec (6.0V) │ 0.12 sec (7.4V)
- Speed: 0.10 sec (8.4V)
- Operating Voltage: 6.0 ~ 8.4 DC Volts
- Weight: 78 g (2.75 oz)
- Bearing Type: Ball Bearing x 2
- Motor Type: Brushless Motor
- Gear Type: 7075+Steel
- Max current: 7.5A
- Size: 40.0 x 20.0 x 38.3 mm ( 1.57 x 0.79 x 1.51 in)
Key Info:
- Brand: Power HD
- Part No: HD-GTS-7
- Barcode: 6929188077007
- Max Voltage: 7.4v+ (LiPo)
- Gear Material: Metal
