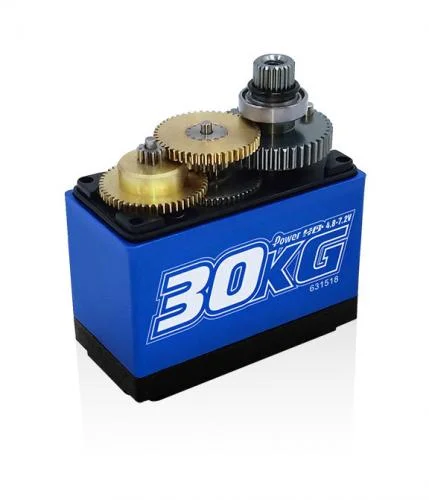

Power HD LW-30MG Digital Waterproof Servo - 30.0kg - 0.14s — image 2 of 3

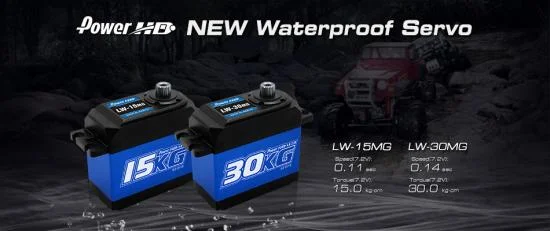

Power HD LW-30MG Digital Waterproof Servo - 30.0kg - 0.14s — image 3 of 3

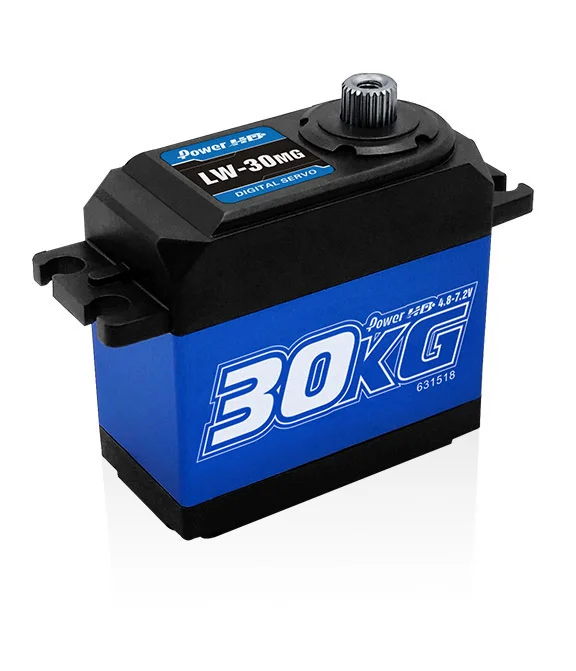

Power HD LW-30MG Digital Waterproof Servo - 30.0kg - 0.14s
Power HD LW-30MG Digital Waterproof Servo - 30.0kg - 0.14s
Power HD LW-30MG Digital Waterproof Servo - 30.0kg - 0.14s

Power HD LW-30MG Waterproof Digital Servo 30kg 0.14s

Brand: Power HD

Part No: HD-LW-30MG

£35.90 RRP £39.89

In Stock: Usually ships same day

Collect Instore

Finance options available at checkout.

Request Price Match Ask a Question Write a Review

Frequently Bought With

Other items customers often buy with the Power HD LW-30MG Digital Waterproof Servo - 30.0kg - 0.14s

Hobbywing Quicrun Crawler Fusion Pro 2300Kv Sensored Brushless 2-in-1 ESC System Hobbywing Quicrun Crawler Fusion Pro 2300Kv Sensored Brushless 2-in-1 ESC System
£134.09
RadioLink RC4GS V3 5 Channel Steerwheel Transmitter With 1 x R6FG-V3 Gyro Receiver and 1 x R6F-V2 Standard Receiver RadioLink RC4GS V3 5 Channel Steerwheel Transmitter With 1 x R6FG-V3 Gyro Receiver and 1 x R6F-V2 Standard Receiver
£66.49
Savox SH0256+ Micro Digital Heli/Parkfly Servo - 4.6kg Savox SH0256+ Micro Digital Heli/Parkfly Servo - 4.6kg
£16.09
Hobbywing Quicrun Fusion SE 2-in-1 ESC With 1800Kv Sensored Motor Hobbywing Quicrun Fusion SE 2-in-1 ESC With 1800Kv Sensored Motor
£80.99
Jetko Extreme 1:10 Avantgarde Rally Tyres On Black 12mm Hex Wheels (4) Jetko Extreme 1:10 Avantgarde Rally Tyres On Black 12mm Hex Wheels (4)
£29.92
Fastrax Drift D1 Tyres Mounted on 9mm Offset 6 Spoke Black Chrome Wheels (4) Fastrax Drift D1 Tyres Mounted on 9mm Offset 6 Spoke Black Chrome Wheels (4)
£13.29
ETronix 1-8S Cased Lipo Battery Voltage Meter With Alarm ETronix 1-8S Cased Lipo Battery Voltage Meter With Alarm
£4.74
Fastrax Magnetic Screw Tray Black Fastrax Magnetic Screw Tray Black
£3.79
Power HD 1812MG Waterproof Metal Geared Servo - 18kg - 0.12s Power HD 1812MG Waterproof Metal Geared Servo - 18kg - 0.12s
£29.69
SKY RC GNSS Performance Analyzer / Speed Meter SKY RC GNSS Performance Analyzer / Speed Meter
£72.19
2200mAh 3S 11.1v 50C LiPo Battery with XT60 - Overlander Ultrasport 2200mAh 3S 11.1v 50C LiPo Battery with XT60 - Overlander Ultrasport
£22.79
ARAC8883 Arrma Direct Mount Servo Saver (25T Spline) ARAC8883 Arrma Direct Mount Servo Saver (25T Spline)
£9.49

Description

The Power HD LW-30MG digital waterproof servo (part number HD-LW-30MG) delivers strong holding power and quick response, topping out at 30.0 kg-cm of torque with a 0.14s transit time at 7.2V. A dual ball bearing support, copper and aluminium gear train and reliable DC motor combine for smooth, durable performance across a 4.8–7.2V operating range.

Key Specifications

  • Torque: 18.0 kg-cm (4.8V) | 23.5 kg-cm (6.0V) | 30.0 kg-cm (7.2V)
  • Speed: 0.18s (4.8V) | 0.16s (6.0V) | 0.14s (7.2V)
  • Operating Voltage: 4.8–7.2V DC
  • Bearing Type: Ball bearing x2
  • Motor Type: DC motor
  • Gear Type: Copper & aluminium
  • Working Frequency: 1520 μs / 333 Hz
  • Operating Temperature: −10°C to 60°C
  • Size: 40.5 x 20.5 x 39.3 mm (1.59 x 0.81 x 1.55 in)
  • Weight: 62 g (2.19 oz)

With a compact, standard-size footprint and waterproof construction, the LW-30MG is a versatile digital servo solution where high torque and dependable control are required.

Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Power HD LW-30MG Digital Waterproof Servo - 30.0kg - 0.14s Manuals & Guides

Specifications

Torque(4.8V): 18.0 kg-cm (250.0 oz/in) Torque(6.0V): 23.5 kg-cm (326.4 oz/in) Torque(7.2V): 30.0 kg-cm (416.6 oz/in) Speed: 0.18 sec (4.8V) │ 0.16 sec (6.0V)│ 0.14 sec (7.2V) Operating Voltage：4.8 ~ 7.2 DC Volts Weight: 62 g (2.19 oz) Bearing Type：Ball Bearing x 2 Motor Type：DC Motor Gear Type：Copper & Aluminum Operating Temperature：-10℃~60℃ Working frequency：1520μs / 333hz Size：40.5 x 20.5 x 39.3 mm ( 1.59 x 0.81 x 1.55 in)
  • Torque(4.8V): 18.0 kg-cm (250.0 oz/in)
  • Torque(6.0V): 23.5 kg-cm (326.4 oz/in)
  • Torque(7.2V): 30.0 kg-cm (416.6 oz/in)
  • Speed: 0.18 sec (4.8V) │ 0.16 sec (6.0V)│ 0.14 sec (7.2V)
  • Operating Voltage：4.8 ~ 7.2 DC Volts
  • Weight: 62 g (2.19 oz)
  • Bearing Type：Ball Bearing x 2
  • Motor Type：DC Motor
  • Gear Type：Copper & Aluminum
  • Size：40.5 x 20.5 x 39.3 mm ( 1.59 x 0.81 x 1.55 in)
  • Torque(4.8V): 18.0 kg-cm (250.0 oz/in)
  • Torque(6.0V): 23.5 kg-cm (326.4 oz/in)
  • Torque(7.2V): 30.0 kg-cm (416.6 oz/in)
  • Speed: 0.18 sec (4.8V) │ 0.16 sec (6.0V)│ 0.14 sec (7.2V)
  • Operating Voltage：4.8 ~ 7.2 DC Volts
  • Weight: 62 g (2.19 oz)
  • Bearing Type：Ball Bearing x 2
  • Motor Type：DC Motor
  • Gear Type：Copper & Aluminum
  • Size：40.5 x 20.5 x 39.3 mm ( 1.59 x 0.81 x 1.55 in)


Key Info:
  • Brand: Power HD
  • Part No: HD-LW-30MG
  • Barcode: 6929138003001
  • Max Voltage: 7.4v+ (LiPo)
  • Gear Material: Metal
