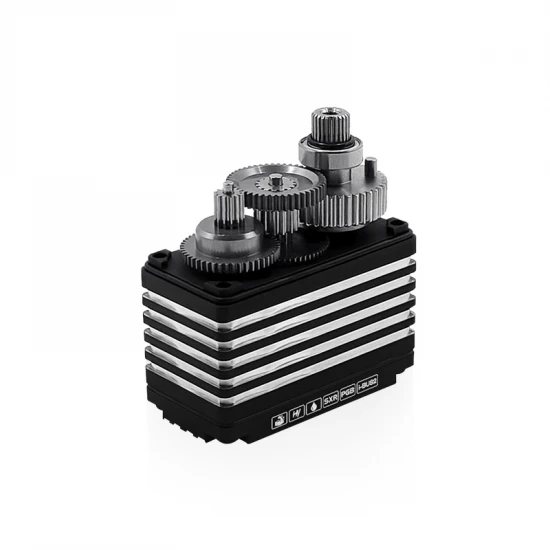

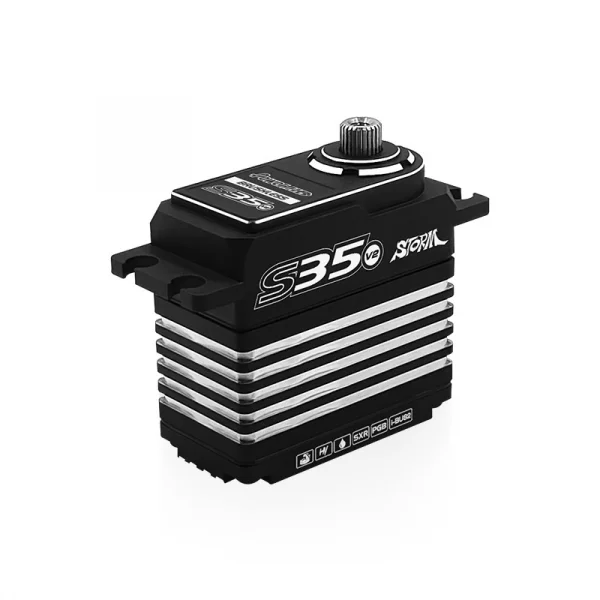

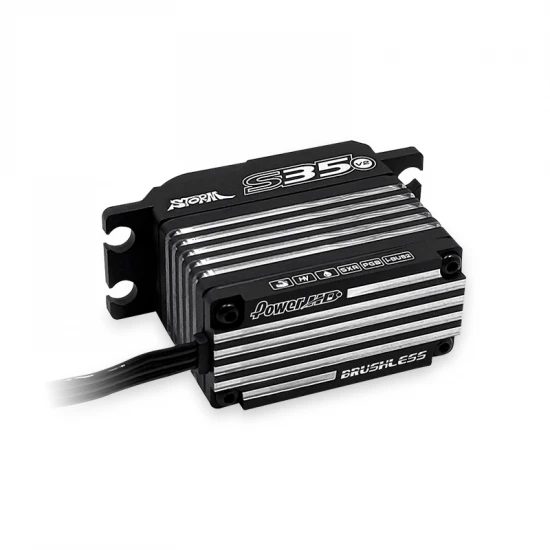

Power HD S35V2 HV Servo - 45kg 0.085s

The Power HD Servo S35V2 (HD-S35V2) is a high-voltage, brushless servo built for demanding GT applications. Delivering up to 45.0 kg-cm of torque at 8.4V with a rapid 0.085s transit speed, it pairs a robust aluminium case with titanium and steel gears for strength and durability. Dual ball bearings and a brushless motor provide smooth, efficient operation and consistent performance.

Key Features

• Brushless motor for high efficiency and longevity
• High-voltage operation (6.0–8.4V) for strong torque and speed
• Aluminium case for improved rigidity and heat dissipation
• Titanium & steel gear train
• Dual ball bearings
• SSR HV for GT
• Compatible with iBus2 and program box

Specifications

• Torque: 29.0 kg-cm (6.0V) | 35.0 kg-cm (7.4V) | 45.0 kg-cm (8.4V)
• Speed: 0.115 sec (6.0V) | 0.098 sec (7.4V) | 0.085 sec (8.4V)
• Operating voltage: 6.0–8.4V DC
• Weight: 79.0 g
• Bearing type: Ball bearing x2
• Motor type: Brushless
• Gear type: Titanium & steel
• Operating temperature: -10°C to 60°C
• Working frequency: 1520 µs / 50–1500 Hz
• Size: 40.5 x 20.0 x 38.4 mm (1.59 x 0.79 x 1.51 in)

Suggested Compatibility

• GT on-road applications where high torque and fast response are beneficial
