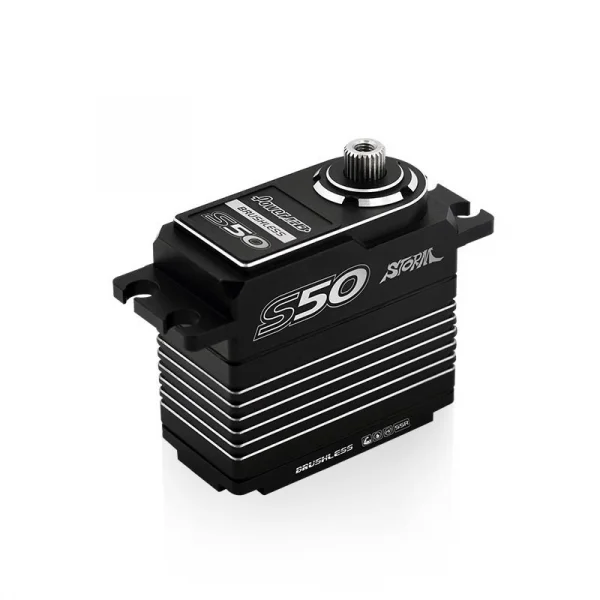

Power HD S50 HV MG Brushless Aluminium Case SSR Servo - 50kg 0.10s

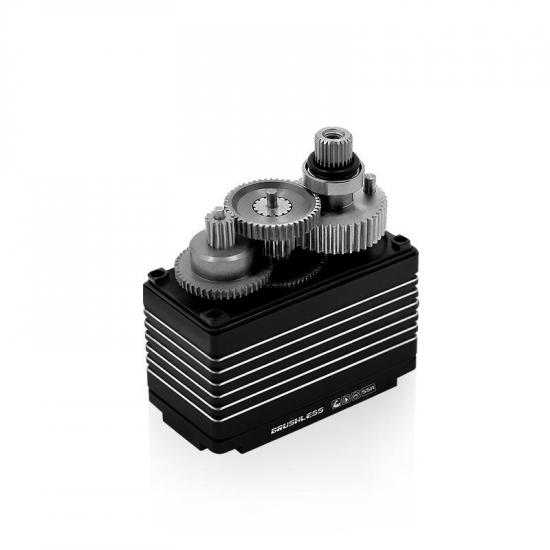

The Power HD S50 HV MG Brushless Aluminium Case SSR Servo (HD-S50) delivers high torque and quick response in a robust aluminium case. With a brushless motor, titanium & steel gears and dual ball bearings, it is engineered for dependable, high-voltage performance. At 8.4V it offers up to 50.0 kg-cm of torque and a swift 0.10s transit speed, with smooth control at a 1520µs / 333Hz signal.

Operating from 6.0–8.4V DC, the S50 combines strength, speed and consistency within a compact, standard footprint. The durable metal geartrain and efficient brushless drive support demanding applications, while the aluminium case aids heat dissipation. A wide operating temperature range and solid construction round out this performance-focused servo.

Performance Specifications

• Torque: 38.0 kg-cm (6.0V); 45.0 kg-cm (7.4V); 50.0 kg-cm (8.4V)
• Speed: 0.15s (6.0V); 0.12s (7.4V); 0.10s (8.4V)
• Operating voltage: 6.0–8.4V DC
• Working frequency: 1520µs / 333Hz
• Motor: Brushless
• Gears: Titanium & steel
• Bearings: Dual ball bearings

Size & Weight

• Size: 40.7 x 20.5 x 38.6 mm
• Weight: 75.0 g
• Operating temperature: -20–60°C
