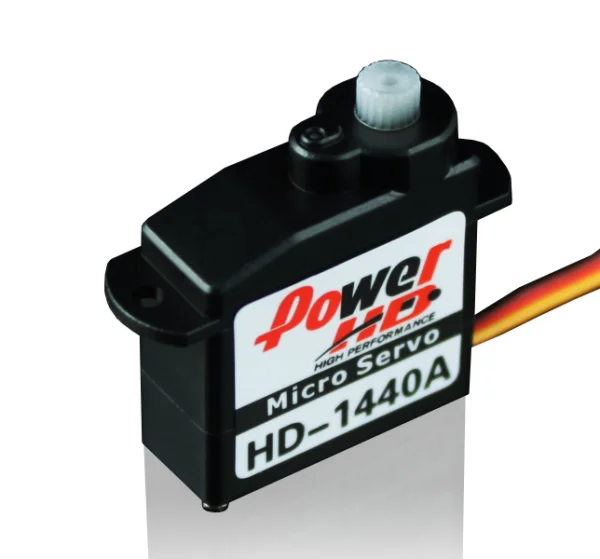

Power HD HD-1440A Micro Servo 0.6kg 0.10s (4.8–6V)
Brand: Power HD
Part No: HD-1440A
£5.50
RRP £5.79
Shadow Stock: Usually ships within 4-5 days
Finance options available at checkout.
Description
The Power HD HD-1440A 0110 micro servo is a lightweight option for tight installations, weighing just 4.4 g. Operating on 4.8–6.0 V, it delivers 0.6–0.8 kg-cm of torque with quick 0.12–0.10 s transit times. Its compact 20.2 × 8.5 × 20.2 mm footprint and plastic gear train with a DC motor make it suitable where low mass and small size are priorities.
Key Specifications
- Part number: HD-1440A
- Torque (4.8 V): 0.6 kg-cm (8.33 oz/in)
- Torque (6.0 V): 0.8 kg-cm (11.10 oz/in)
- Speed: 0.12 s (4.8 V) / 0.10 s (6.0 V)
- Operating voltage: 4.8–6.0 V DC
- Weight: 4.4 g (0.15 oz)
- Bearing type: none
- Motor type: DC motor
- Gear type: plastic
- Operating temperature: -10°C to 60°C
- Working frequency: 1520 μs / 50 Hz
- Size: 20.2 × 8.5 × 20.2 mm (0.79 × 0.33 × 0.79 in)
Secure Payments
Secured by Stripe
Power HD Servo Hd1440A 0110 (0.6Kg/0.1Sec) Manuals & Guides
How-To Guides & Articles
Specifications
Torque(4.8V): 0.6 kg-cm (8.33 oz/in)
Torque(6.0V): 0.8 kg-cm (11.10 oz/in)
Speed: 0.12 sec (4.8V) │ 0.10 sec (6.0V)
Operating Voltage：4.8 ~ 6.0 DC Volts
Weight: 4.4 g (0.15 oz)
Bearing Type：no
Motor Type：DC Motor
Gear Type：Plastic
Operating Temperature：-10℃~60℃
Working frequency：1520μs / 50hz
Size：20.2 x 8.5 x 20.2 mm ( 0.79 x 0.33 x 0.79 in)
Key Info:
Key Info:
- Brand: Power HD
- Part No: HD-1440A
- Barcode: 6953524540061
