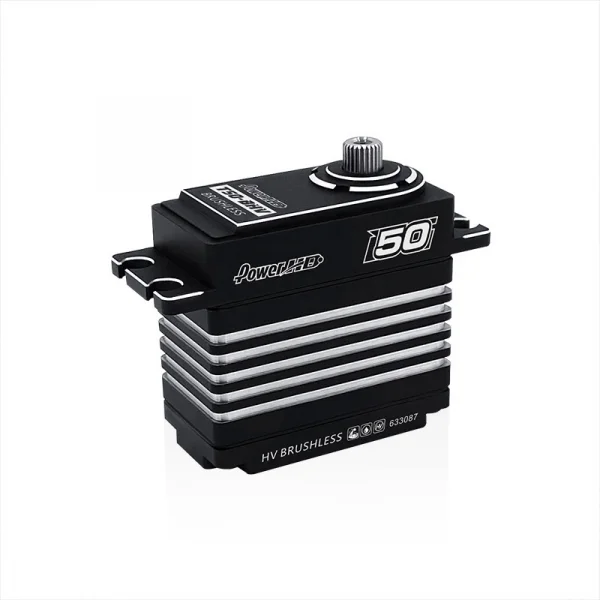

Power HD T50 HV Alloy Case MG HV Servo - 50kg - 0.065s

The Power HD T50-BHV is a high-voltage, brushless metal-gear servo built for fast response and serious torque. Delivering up to 50.0 kg-cm at 8.4V with a transit speed as quick as 0.065s, it combines strength, precision and durability in a compact alloy-case design. Part number HD-T50-BHV.

With dual ball bearings, steel and aluminium gears, and a wide 6.0–8.4V operating range, the T50-BHV offers smooth operation and dependable performance across demanding conditions.

Key Specifications

• Torque (6.0V): 39.0 kg-cm (541.6 oz/in)
• Torque (7.4V): 40.0 kg-cm (555.5 oz/in)
• Torque (8.4V): 50.0 kg-cm (694.4 oz/in)
• Speed: 0.092s (6.0V) | 0.074s (7.4V) | 0.065s (8.4V)
• Operating Voltage: 6.0–8.4V DC
• Weight: 83 g (2.93 oz)
• Bearing Type: Dual ball bearings (x2)
• Motor Type: Brushless

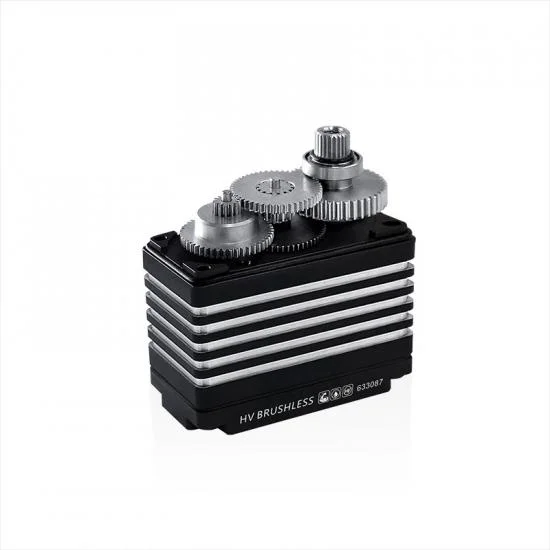

• Gear Type: Steel & aluminium
• Operating Temperature: -20°C to 60°C
• Working Frequency: 1520 μs / 333 Hz
• Size: 40.7 x 20.5 x 38.7 mm (1.60 x 0.81 x 1.52 in)
