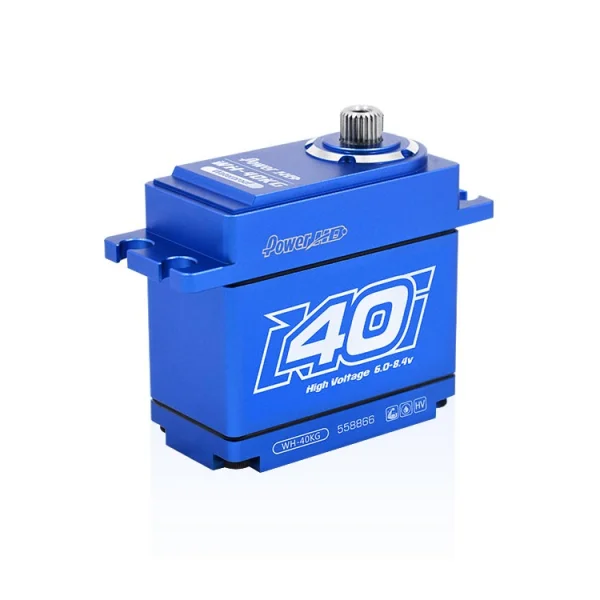

Power HD WH40KG HV Waterproof Servo - 40kg 0.17s — image 1 of 2

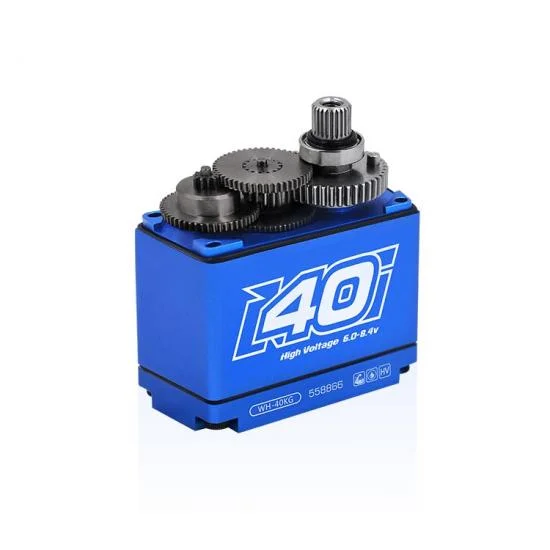

Power HD WH40KG HV Waterproof Servo - 40kg 0.17s — image 2 of 2
Power HD WH40KG HV Waterproof Servo - 40kg 0.17s
Power HD WH40KG HV Waterproof Servo - 40kg 0.17s

Power HD WH40KG HV Waterproof Servo 40kg 0.17s

Brand: Power HD

Part No: HD-WH-40KG

€93.23 RRP €103.59

In Stock: Usually ships same day

Collect Instore

Finance options available at checkout.

Request Price Match Ask a Question Write a Review

Frequently Bought With

Other items customers often buy with the Power HD WH40KG HV Waterproof Servo - 40kg 0.17s

Traxxas Adapter standard servo (adapts standard servo to fit in X-MAXX + MAXX) Traxxas Adapter standard servo (adapts standard servo to fit in X-MAXX + MAXX)
€8.35

Description

The Power HD WH40KG HV Waterproof Servo delivers up to 40.0 kg-cm of torque at 8.4V with a swift 0.17 s transit time. Built around a coreless motor with steel and aluminium gears and dual ball bearings, it provides strong holding power and smooth, consistent response in a compact 40.7 x 20.5 x 38.5 mm case. Operating from 6.0 to 8.4 V, this HV waterproof unit is designed for demanding control applications and varied conditions.

A high-voltage range allows you to access increased torque and speed at 7.4–8.4 V while remaining compatible with standard 6.0 V systems. Precision bearings, a robust geartrain and a programmable setup (via compatible program box only) help maintain reliable performance across a wide -10°C to 60°C operating temperature range.

Specifications

  • Part Number: HD-WH-40KG
  • Torque: 29.0 kg-cm (6.0V), 35.0 kg-cm (7.4V), 40.0 kg-cm (8.4V)
  • Speed: 0.20 s (6.0V), 0.18 s (7.4V), 0.17 s (8.4V)
  • Operating Voltage: 6.0 – 8.4 V DC
  • Motor Type: Coreless
  • Gear Type: Steel & Aluminium
  • Bearings: Ball Bearing x 2
  • Working Frequency: 1520 μs / 333 Hz
  • Operating Temperature: -10°C to 60°C
  • Weight: 82 g
  • Size: 40.7 x 20.5 x 38.5 mm
  • Programming: Compatible with program box only
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Power HD WH40KG HV Waterproof Servo - 40kg 0.17s Manuals & Guides

Specifications

Torque(6.0V): 29.0 kg-cm ( 402.7 oz/in) Torque(7.4V): 35.0 kg-cm ( 486.1 oz/in) Torque(8.4V): 40.0 kg-cm ( 555.5 oz/in) Speed: 0.20 sec (6.0V)│0.18 sec (7.4V)│ Speed: 0.17 sec (8.4V) Operating Voltage：6.0 ~ 8.4V DC Volts Weight: 82 g (2.89 oz) Bearing Type：Ball Bearing x 2 Motor Type：Coreless Motor Gear Type：Steel & Aluminum Operating Temperature：-10℃~60℃ Working frequency：1520μs / 333hz Size：40.7 x 20.5 x 38.5 mm ( 1.60 x 0.81 x 1.52 in) Compatible with program box only Torque(6.0V): 29.0 kg-cm ( 402.7 oz/in) Torque(7.4V): 35.0 kg-cm ( 486.1 oz/in) Torque(8.4V): 40.0 kg-cm ( 555.5 oz/in) Speed: 0.20 sec (6.0V)│0.18 sec (7.4V)│0.17 sec (8.4V) Operating Voltage：6.0 ~ 8.4V DC Volts Weight: 82 g (2.89 oz) Bearing Type：Ball Bearing x 2 Motor Type：Coreless Motor Gear Type：Steel & Aluminum Size：40.7 x 20.5 x 38.5 mm ( 1.60 x 0.81 x 1.52 in) Torque(6.0V): 29.0 kg-cm ( 402.7 oz/in) Torque(7.4V): 35.0 kg-cm ( 486.1 oz/in) Torque(8.4V): 40.0 kg-cm ( 555.5 oz/in) Speed: 0.20 sec (6.0V)│0.18 sec (7.4V)│0.17 sec (8.4V) Operating Voltage：6.0 ~ 8.4V DC Volts Weight: 82 g (2.89 oz) Bearing Type：Ball Bearing x 2 Motor Type：Coreless Motor Gear Type：Steel & Aluminum Size：40.7 x 20.5 x 38.5 mm ( 1.60 x 0.81 x 1.52 in)

Key Info:
  • Brand: Power HD
  • Part No: HD-WH-40KG
  • Barcode: 6929130040400
  • Max Voltage: 7.4v+ (LiPo)
  • Gear Material: Metal
