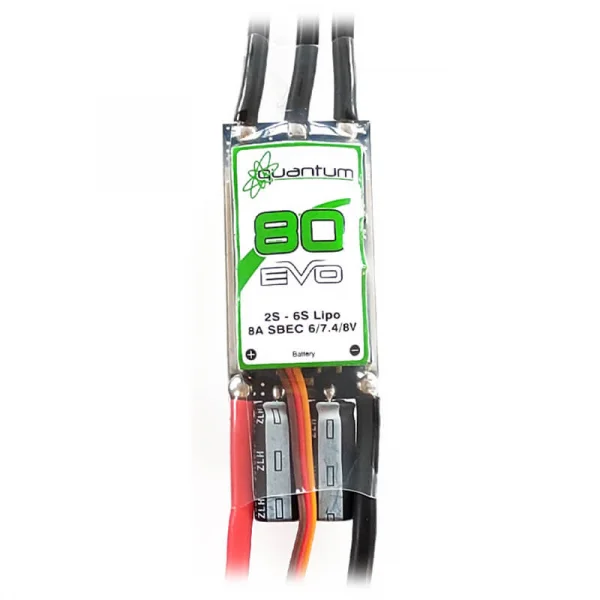

Precision Aerobatics Quantum Evo 80 Pro ESC AC-2190EVO
Brand: Precision Aerobatics
Part No: AC-2190EVO
Usually ships next day
Fits These Models (2)
Show all 2 models
You May Also Need
Add-ons and accessories that go with the Precision Aerobatics Quantum Evo 80 Pro HV-Sbec
Description
Precision Aerobatics Quantum Evo 80 Pro HV-Sbec (AC-2190EVO) is an adjustable high-voltage SBEC electronic speed controller for RC brushless motor setups. It is preconfigured for plug-and-play use with Thrust brushless motors, providing selectable 6V, 7.4V or 8.0V switching BEC output. Suggested compatibility includes applications using 2-6 cell LiPo batteries and high-RPM brushless motors.
The controller has a programmable microprocessor system with a user-friendly interface for adjusting the operating settings. These include brake operation, battery type, low-voltage cutoff, switching frequency, timing, motor rotation and soft-start acceleration. Governor mode is also available for suggested helicopter applications. Factory default restoration allows the original setup to be reinstated when required.
Features
The Quantum Evo 80 Pro is designed for controlled throttle response and cool operation, with a larger heat sink and low electrical resistance. Its settings allow the controller to be adapted to different motor and power-system requirements, while the supplied air baffles help provide airflow around the motor, ESC and batteries when installed as directed.
- Selectable 6V, 7.4V or 8.0V switching BEC
- Programmable throttle, brake and motor settings
- Smooth throttle linearity
- Soft acceleration start-up
- Clockwise or counterclockwise motor rotation
- Governor mode for suggested helicopter applications
- High-RPM brushless motor support
Safety Features
Protection functions help manage common operating conditions. Thermal overload protection monitors heat build-up, while automatic throttle shut-off responds to a lost signal. Power arming protection helps prevent accidental motor spool-up when the system is switched on, and audible alert tones indicate abnormal conditions.
- Thermal overload protection
- Automatic throttle shut-off if the signal is lost
- Power arming protection
- Audible abnormal-condition alerts
Specifications
- Continuous current: 80A
- Burst current: 85A for less than 10 seconds
- Switching BEC output: 6V, 7.4V or 8.0V at 8A continuous
- Battery range: 2-6 cell LiPo
Secured by Stripe
Specifications
PA Quantum EVO line features outstanding quality backed by equally outstanding service since 2003.
The Quantum EVO range has developed over the years and has proven to be reliable and efficient. Unfortunately, however, this success has also attracted companies who have sought to copy our ESCs. Customers are being confused by similar packaging and instruction manual. Some vendors are suggesting these copies are in fact PA Quantum, or produced at our manufacturing facility. Bad ESC = Crashed Plane!
Quantum EVO adjustable HV SBEC.
This is the latest edition of our Quantum EVO Electronic Speed Control (ESC) featuring a high output SBEC capable of delivering 6v, 7.4v or 8.0v. It ships preconfigured for plug-and-play use with Thrust brushless motors. Years of R&D and experience has culminated in this extremely reliable, efficient and robust ESC.
Features- Selectable high voltage switching BEC (Battery Eliminator Circuit).
- Powerful SBEC – capable of high amp peak.
- Smooth and accurate throttle linearity.
- New design larger efficient heat sink.
- Designed, tuned and optimized for Thrust™ motors.
- Fully programmable Microprocessor Controlled for all applications.
- User friendly interface for quick and easy hassle free programming.
- Exceptionally low resistance for efficient cool operation.
- High rate switching with high RPM brushless motor support.
- Rugged surface mount industry grade components for added reliability and crash durability.
- Brake setting (we recommend using brake only for folding props applications).
- Battery type (LiPo or NiCd/NiMh).
- Low voltage cutoff setting.
- Factory default setup restore.
- Switching frequency.
- Low Voltage Cutoff type – LVC (power reduction or immediate shutoff).
- Timing settings (to enhance ESC efficiency and smoothness).
- Soft acceleration start ups (for delicate gearbox and helicopter applications).
- Motor rotation (clockwise\counterclockwise).
- Governor mode (for helicopter applications).
- Thermal overload protection.
- Automatic throttle shut-off if signal is lost.
- Power arming protection (to prevent accidental motor spool-up when switched ON).
- ESC is equipped with audible alert tones to indicate abnormal conditions.
Continuous current: 80A
Burst Current (<10s): 85A
Switching BEC Output: 6V/7.4V/8V 8A (continuous)
LiPo: 2-6 Cells
It is essential to allow good air flow (using the supplied air baffles and installing the gear per the instruction manual) over the motor, ESC and batteries under normal RC hobby use only, otherwise, ESC will heat-up and reach the thermal protection threshold or may damage.
