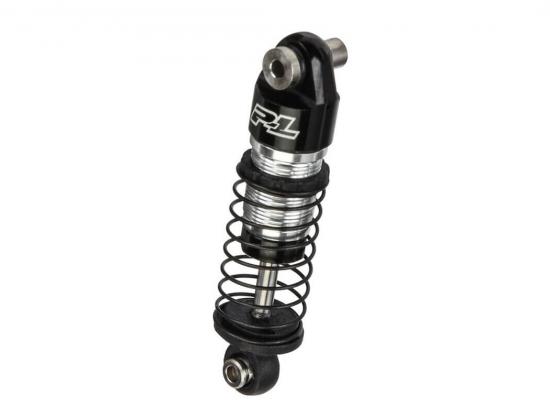

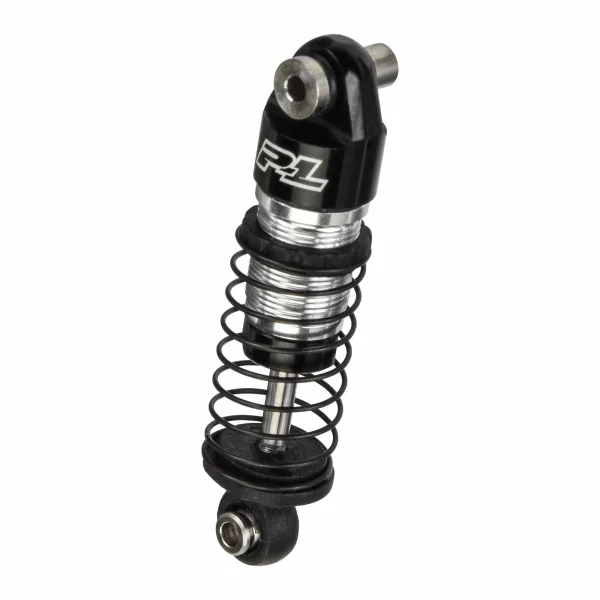

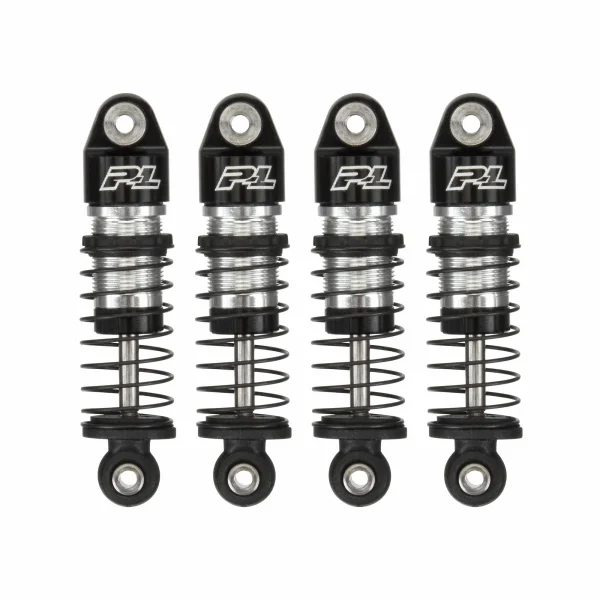

ProLine 1:24 Big Bore Scaler Shocks (4) - SCX24
Brand: ProLine
Part No: PRO6387-00
In Stock: Usually ships same day
Upgrade your micro crawler with the ProLine 1:24 Big Bore Scaler Shocks (4) for SCX24, part number PRO6387-00. These premium dampers feature CNC‑machined aluminium caps, threaded bodies and bottom caps, plus polished steel shafts for smooth, consistent performance and improved durability. The large 5 mm bore increases oil volume for true big‑bore damping, while a double O‑ring seal helps keep operation smooth and leak‑resistant. Supplied pre-assembled, they are ready for oil in minutes.
Two spring rates are included: a standard rate (pre-installed) for stock or lightly modified rigs, and stiffer springs (red-marked) ideal for heavier ABS/hard-body builds. To set up, simply unscrew the top cap, add 5–6 drops of silicone shock oil (20wt recommended), refit the cap and cycle the shock a few times to lubricate the shaft.
Features
- Performance shocks for SCX24-scale crawlers
- CNC-machined aluminium caps, threaded bodies and bottom caps
- True big-bore design (5 mm) for increased oil volume
- Pre-assembled; just add oil (20wt recommended)
- Leak-resistant double O-ring shaft seal
- Polished steel shock shaft
- Optional stiffer springs included for heavier bodies
Suggested Compatibility
- SCX24 (suggested compatibility)
Specifications
- Extended length: 34 mm (eye-to-eye)
- Collapsed length: 26 mm (eye-to-eye)
- Stroke: 8 mm
- Spring length: 20 mm
- Material: Aluminium
- Scale: 1/24; Vehicle type: Rock crawler
- Product length: 1.32 in (34 mm)

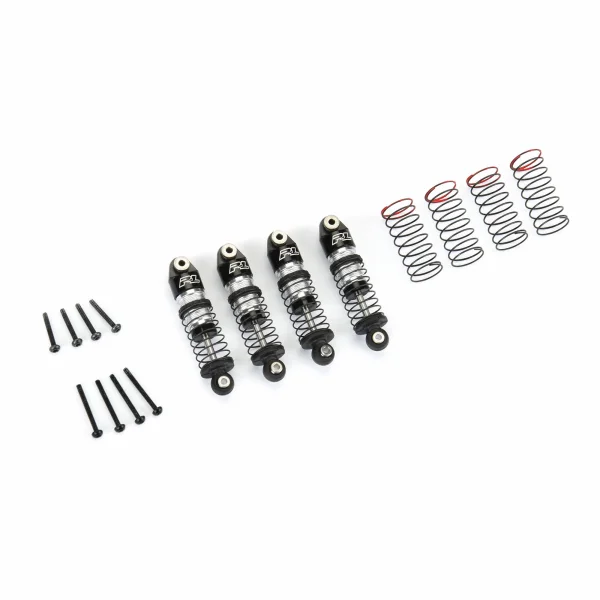

What’s Included
- 4x Big Bore Scaler Shocks
- 4x Optional stiff springs
- 4x M1.4 x 14 mm upper screws
- 4x M1.4 x 10 mm lower screws
Secured by Stripe
This a set of Big Bore Scaler Shocks, designed specifically for the Axial® SCX24™. Take your SCX24™ to the next level of performance in Pro-Line Style! Just like our best-selling 1/10 version, these miniature Big Bore Scaler Shocks feature CNC machined Aluminum Shock Caps, Threaded Bodies, Bottom Caps, and Polished Steel Shock Shafts for added style and durability over the stock shocks. The large 5mm bore shock bodies allow the shocks to function as true performance Big Bore Shocks due to the larger oil volume. A double O-ring seal on the main shaft eliminates leaks and provides a smooth, low-friction shock action.
The Big Bore Shocks come pre-assembled in a set of 4 with all mounting hardware included. All you need to do is unscrew the top cap and add 5-6 drops of silicone shock oil (20wt recommended) to fill the shock body. Replace the cap and compress the shock 3-4 times to fully lubricate the shock shaft. Now you're ready to start your next small-scale adventure!
Two sets of springs are included in the Big Bore Scaler Shock set. The shocks come pre-assembled with a standard spring rate perfect for those stock or close-to-stock rigs. The optional stiffer springs (marked with red paint) are ideal for rigs with heavier ABS/hard bodies, such as the Axial SCX24™ Bronco (AXI00006T1). Don't miss out on the coolest looking and best performing SCX24™ shocks on the Planet, Get your own Pro-Line Big Bore Scaler Shocks today!
PRO638700 | Big Bore Scaler Shocks (4) for SCX24™
Features
- Ultimate Performance SCX24™ Shocks
- CNC Machined Aluminum Shock Caps, Bodies, and Bottom Caps
- True Big Bore Holds More Oil for Better Performance
- Pre-Assembled, Just Add Oil! (20wt Oil Recommended)
- Leak-free Double O-Ring Seal
- Polished Steel Shock Shaft
- Optional Stiff Springs Included, Ideal for Heavier Bodies
- SCX24™
ProLine 1:24 Big Bore Scaler Shocks (4) - SCX24 Specfications:
- Part Type: Shocks & Shock Parts
- Material: Aluminium
- Scale: 1/24
- Application: SCX24
- Vehicle Type: Rock Crawler
- Product Length: 1.32" (34 mm)
- (4 pcs) Big Bore Scaler Shocks
- (4 pcs) Optional Stiff Springs
- (4 pcs) M1.4 x 14mm Upper Screws
- (4 pcs) M1.4 x 10mm Lower Screws
Key Info:
- Brand: ProLine
- Part No: PRO6387-00
- Barcode: 0675118180748
- Fitment: Option Part
