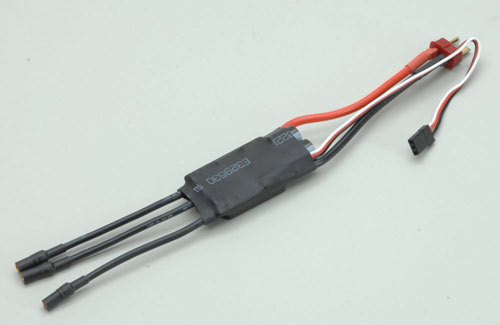

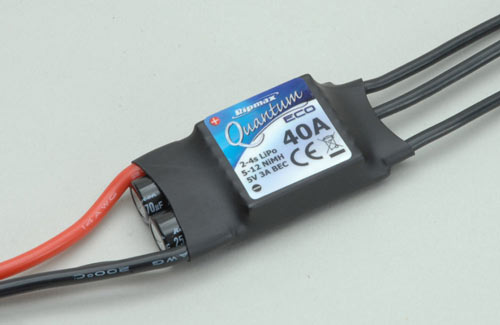

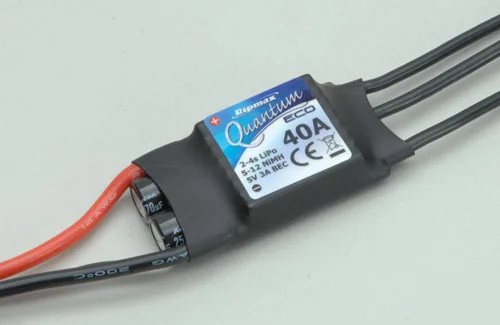

Quantum 40A Brushless ESC
Brand: Ripmax
Part No: P-QESC40
£24.29
RRP £26.99
In Stock: Usually ships same day
The Ripmax Quantum II 40A Eco Brushless ESC (P-QESC40) is designed for straightforward, reliable electric flight. It arrives ready to install with quality components, a linear 5V/3A BEC to power your radio, and pre‑soldered connectors for quick, tidy wiring. Out of the box it runs with no setup required, and can be programmed via the transmitter’s beep sequence or an optional Quantum II program card.
Features
- Plug‑and‑play setup; no programming required for standard use
- Programmable via beep audio system or Quantum II ESC program card

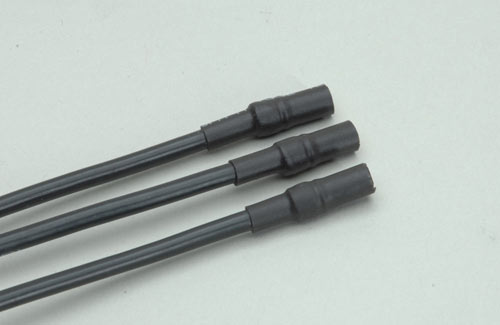

- Pre‑soldered T‑style battery connector and 3.5mm female motor bullets
- Compatible with the new generation of HV LiPo cells (4.35V peak)
- 5V 3A linear BEC to power receiver and servos
- Suits 2–4S LiPo or 5–12 cell NiCd/NiMH packs
- Built with reliability and value in mind
Programmable Options
- Brake: On/Off
- Battery Type: NiMH/LiPo
- Low Voltage Cut‑Off: Low/Medium/High
- Motor Timing: Low/Medium/High
- Acceleration Startup Mode: Soft/Medium/Hard
- Governor: Off/On
- Motor Rotation: Forward/Reverse
Specifications
- Max continuous current: 40A
- BEC output: 5V, 3A (linear)
- Battery: 2–4S LiPo; 5–12 cell NiCd/NiMH
- Connectors: T‑style battery plug; 3.5mm female motor bullets
Secure Payments
Secured by Stripe
This Quantum II 40A Eco electronic speed controller is designed to keep electric flight easy, reliable and offer great value for money. Designed with reliabaility in mind the Quantum II ESC use quality components and is ready to install and use from the packet.
It is quick to 'plug and play' and works without any programming but you can program it using 'Beep' audio system or the Quantum II ESC program card but this isn't needed in normal use. The programmable features include Brake (On/Off), Battery Type (NiMH/LiPo), Low Voltage Cut Off (Low/Medium/High), Motor Timing (Low/Medium/High), Acceleration Startup Mode (Soft/Medium/Hard), Governor (Off/On) and Motor Rotation (Forward/Reverse).
Compatible wit the new generation of HV Li-pos (4.35v peak voltage)

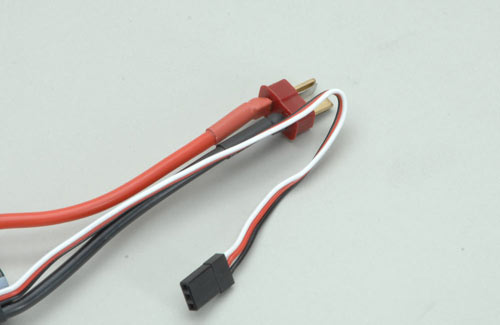

It comes pre-soldered ready to use with the most popular connectors. A 'T' style male connector ready for use with many batteries such as those from Hi-Energy Extreme and 3.5mm female gold connectors for the motor.
• Suits 2-4S Li-Po batteries
• 5V 3A Linear BEC to power your radio
• 'T' style connector presoldered to battery wires
• 3.5mm gold connector presoldered to battery wires
• HV Li-Po compatable
Key Info:
It is quick to 'plug and play' and works without any programming but you can program it using 'Beep' audio system or the Quantum II ESC program card but this isn't needed in normal use. The programmable features include Brake (On/Off), Battery Type (NiMH/LiPo), Low Voltage Cut Off (Low/Medium/High), Motor Timing (Low/Medium/High), Acceleration Startup Mode (Soft/Medium/Hard), Governor (Off/On) and Motor Rotation (Forward/Reverse).
Compatible wit the new generation of HV Li-pos (4.35v peak voltage)
It comes pre-soldered ready to use with the most popular connectors. A 'T' style male connector ready for use with many batteries such as those from Hi-Energy Extreme and 3.5mm female gold connectors for the motor.
• Suits 2-4S Li-Po batteries
• 5V 3A Linear BEC to power your radio
• 'T' style connector presoldered to battery wires
• 3.5mm gold connector presoldered to battery wires
• HV Li-Po compatable
| Specifications | |
|---|---|
| Connectors | 'T' style & 3.5mm Gold (Inc.) |
| B.E.C. (Voltage/Amps) | 5V 3A |
| Max. Continuous Current (Amps) | 40A |
| LiPo | 2 - 4S |
| NiCad/Ni-MH | 5 - 12 |
Key Info:
- Brand: Ripmax
- Part No: P-QESC40
- Barcode: 5028967372188
