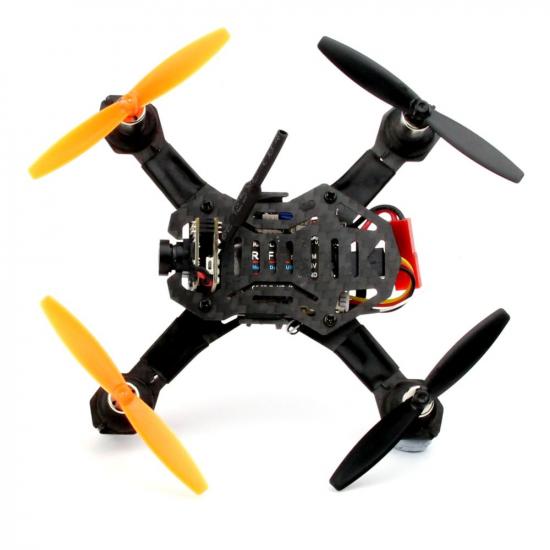

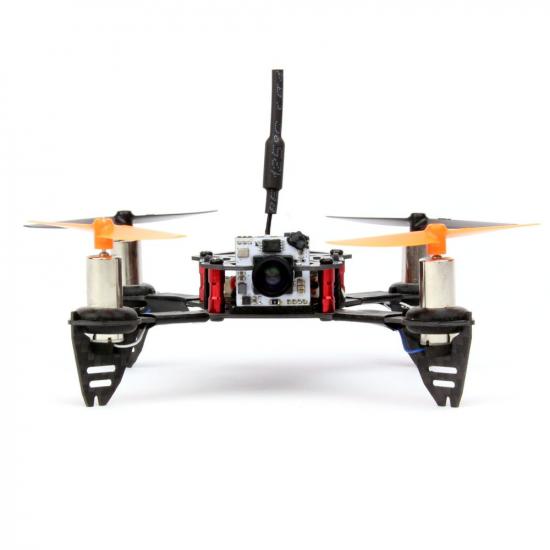

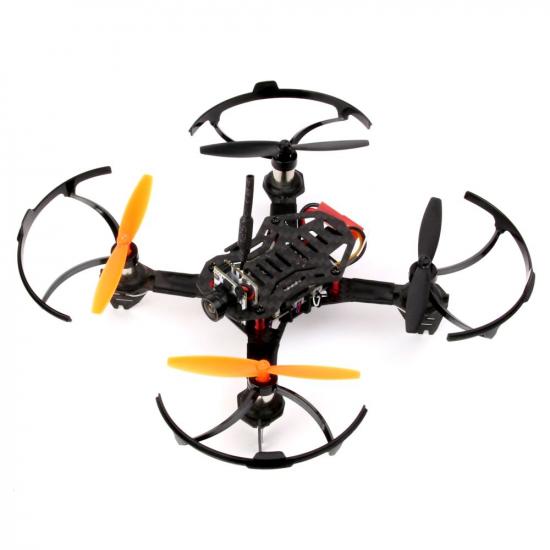

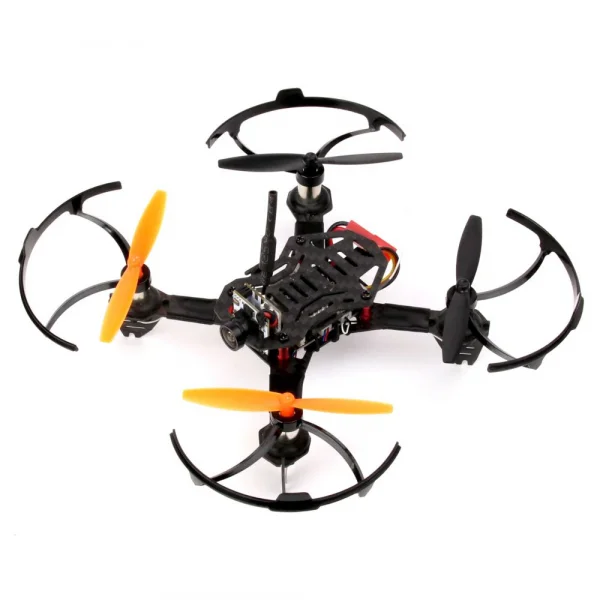

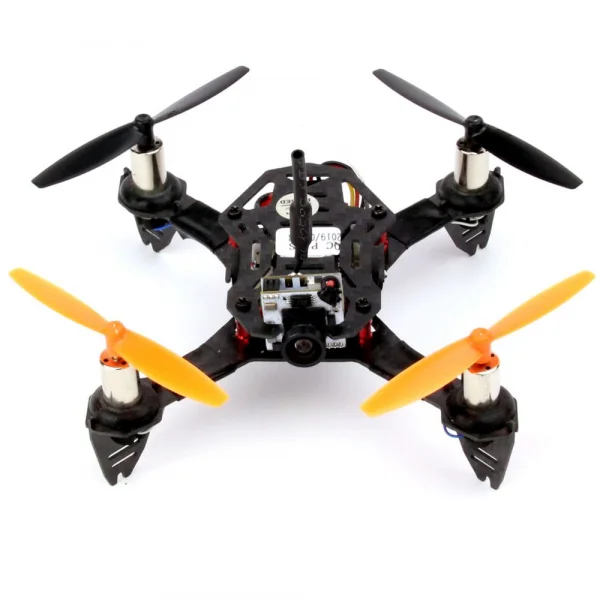

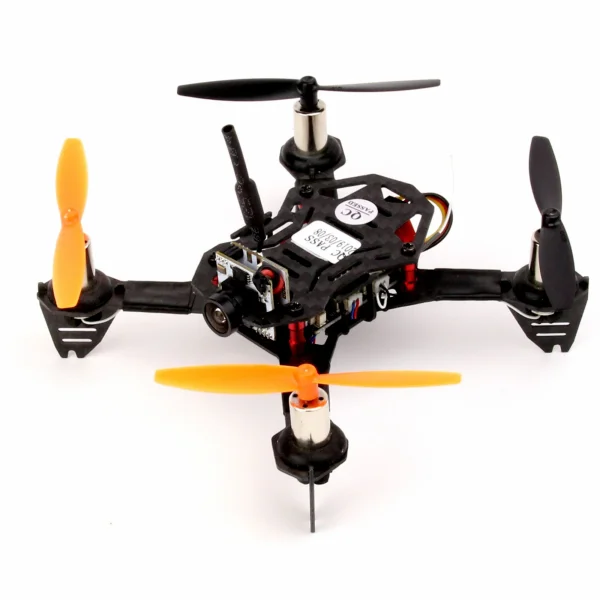

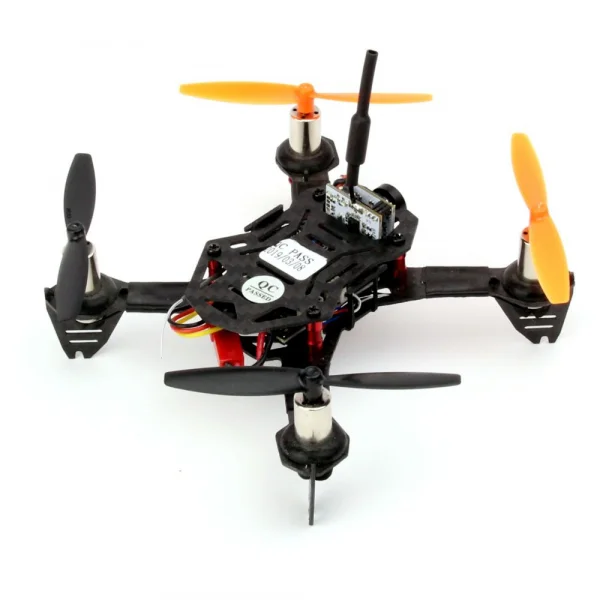

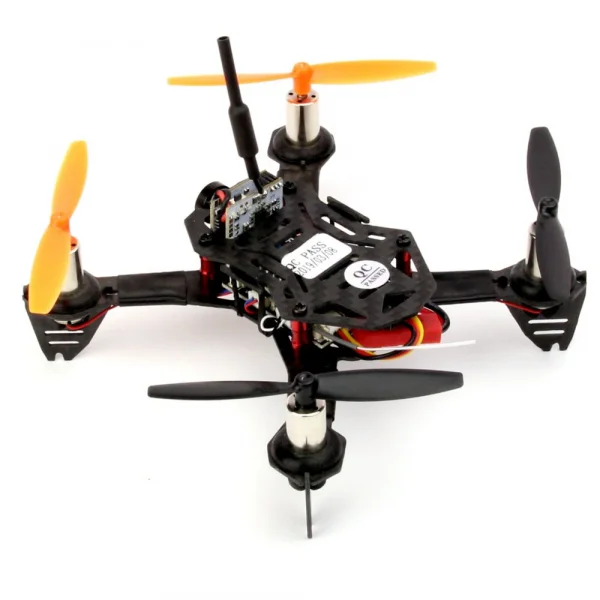

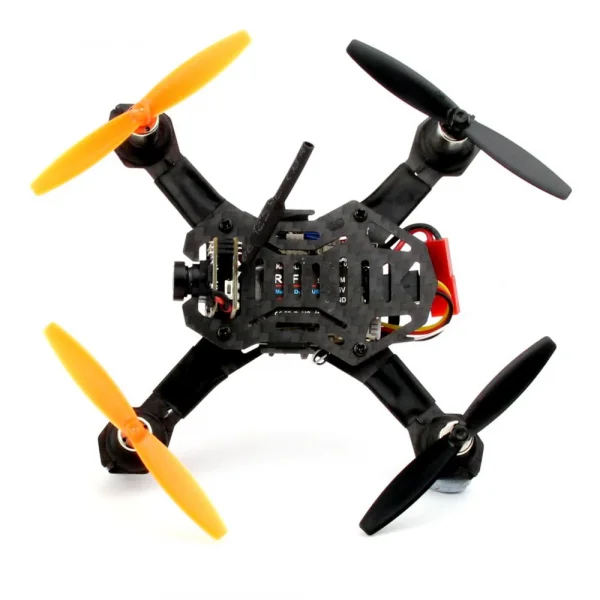

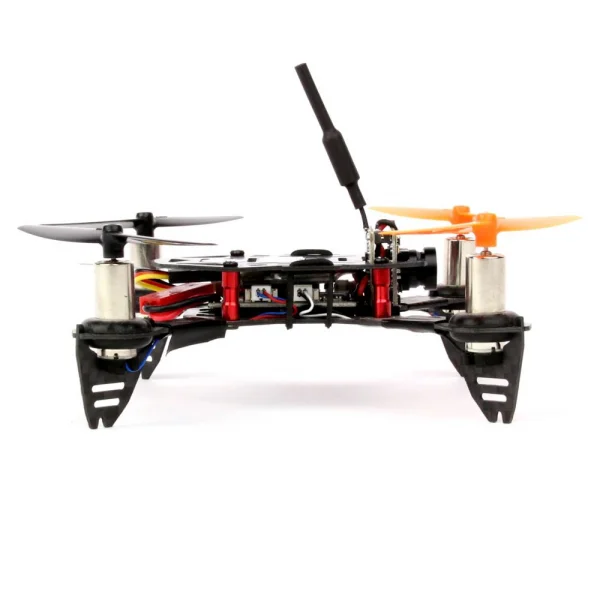

RadioLink F110S Mini Racing Quadcopter with Camera and VTx (No Transmitter)

Compact and responsive, the RadioLink F110S Mini Racing Quadcopter (part no. RLKV011000) is a 110mm FPV racer with a built-in 5.8GHz camera and video transmission. Powered by the CS360 flight controller, it automatically tunes PID parameters and can launch from a hand-throw at virtually any angle. A carbon plate frame and 8520 coreless motors keep the platform light and agile for indoor practice or tight outdoor spaces. Supplied without a transmitter, it includes an R8FM receiver and a 1S LiPo charger.

When the sticks are centred the front maintains its heading, giving stable orientation; move the stick to set the head direction. The fast response helps newcomers gain confidence quickly while still satisfying experienced FPV pilots.

Features

• Throw-to-launch: can start to fly from any angle
• Automatic PID parameter tuning via CS360 flight controller
• Fast response for easy mastery and precise handling

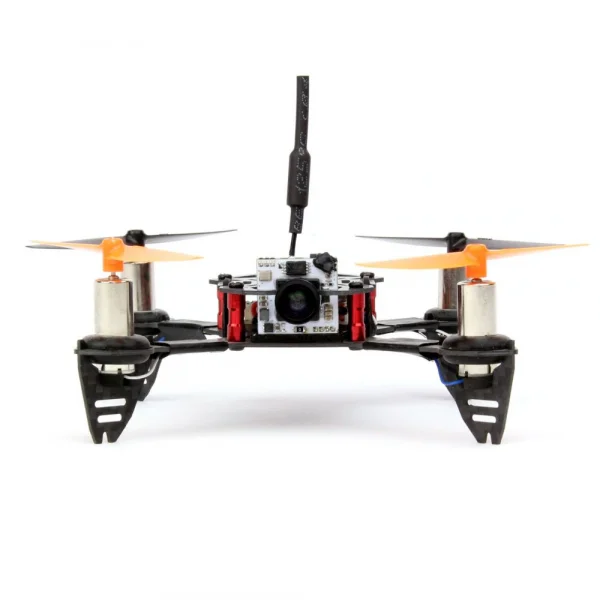

• Integrated 5.8GHz camera for FPV
• Carbon plate frame with lightweight 8520 coreless motors

Specifications

• Weight (including all parts): 170g
• Reference weight (with R8FM, without camera, image transmission and battery): 39g
• Size (without propeller): 110 x 110 x 25 mm
• Propeller diameter: 55mm
• Flight controller (CS360) size: 32.5 x 21.5mm
• R8FM receiver size: 15 x 13mm
• Coreless motor: 8520
• Frequency: 2.4GHz
• Battery capacity: 3.7V 600mAh
• Flight time: 6–8 minutes (with 1S 600mAh Li-Po)
• Control distance: 600 metres (air) with R8FM
• Operating temperature: depends on battery

Suggested Compatibility

• RadioLink T8FB transmitters
• RadioLink AT9/AT10 when used with receiver RLKR121002

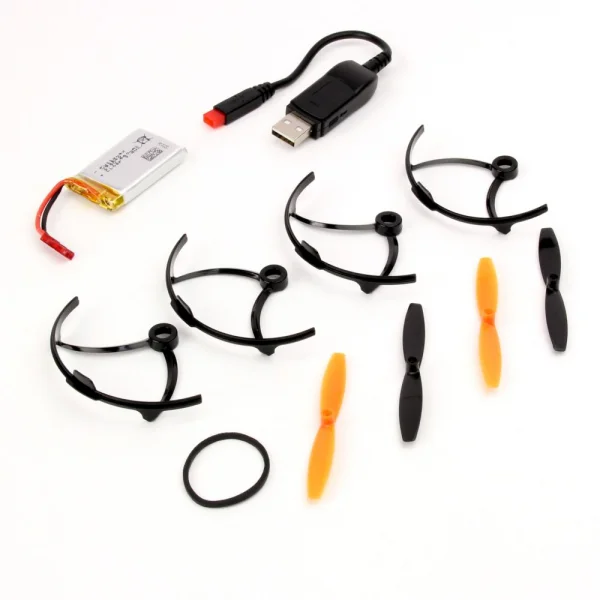

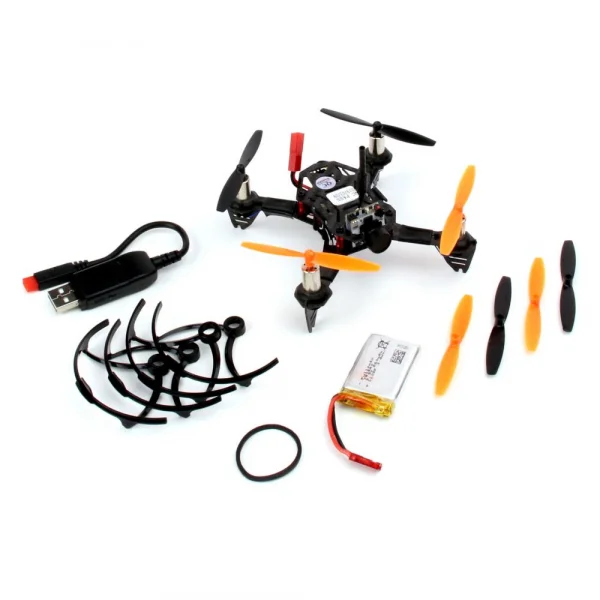

What's Included

• 1x - F110 main plate
• 1x - FC CS360
• 1x - RX R8FM
• 4x - Propeller
• 1S LiPo battery charger CM120
• Packing Box
