RC4WD 1.9/2.2 6 Lug Steel Wheel Hex Hub +3 Offset (Z-S0774)
Brand: RC4WD
Part No: Z-S0774
£22.79
RRP £23.99
Out Of Stock
Request Stock NotificationFinance options available at checkout.
Fits These Models (6)
RC4WD Gelande II RTR - 2015 Land Rover Defender D90
RC4WD Gelande II RTR Truck w/Cruiser Body Set RC4WD
RC4WD Gelande II Truck Kit
RC4WD Gelande II Truck Kit - 2015 Land Rover Defender D90
RC4WD Gelande II Truck Kit With Cruiser Body Set 2025
RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set RC4WD
Description

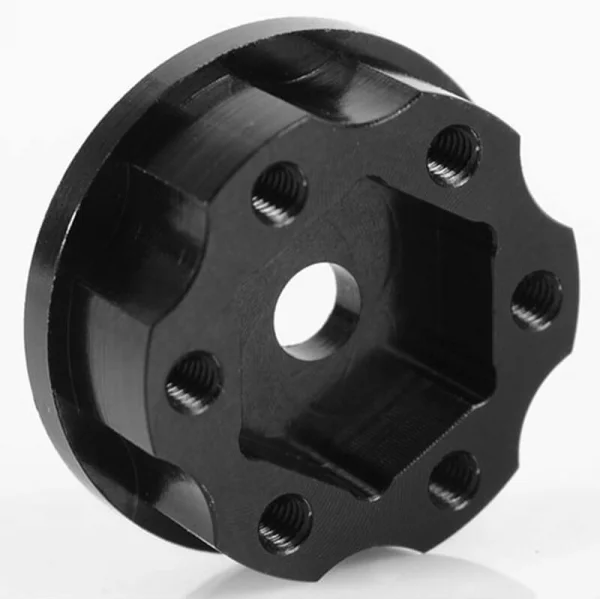

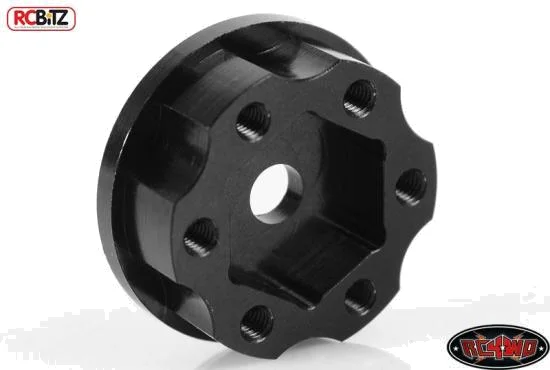

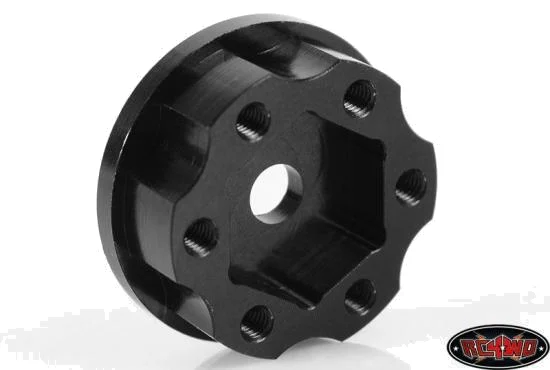

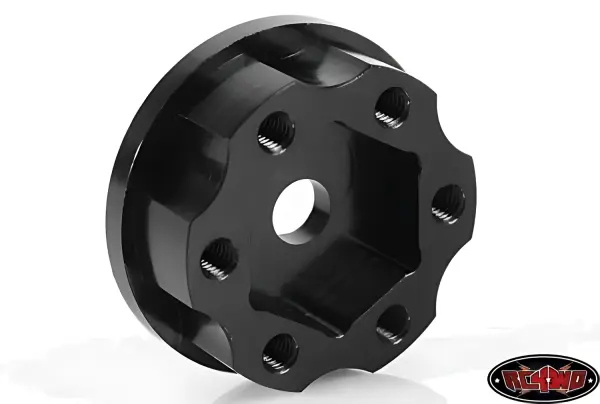

The RC4WD 1.9/2.2 6 Lug Steel Wheel Hex Hub +3 Offset (Z-S0774) is an optional hub for RC4WD 6 Lug Stamped Wheels, providing additional offset compared with the stock hub. It delivers a 3mm increase in offset to widen track width and achieves 7.75mm (0.30") backspacing. Precision CNC machined with an 8.3mm (0.32") thickness, this set is supplied as four hubs.
Features & Specifications
- CNC machined
- Provides +3mm offset compared with standard hex hubs (Z-S0268, Z-S0530)
- Allows for wider track width
- Backspacing: 7.75mm / 0.30"
- Thickness: 8.3mm / 0.32"
What's Included

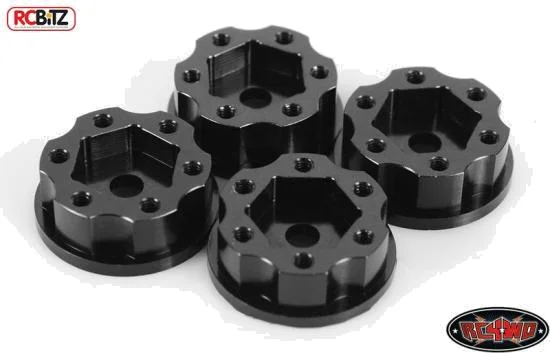

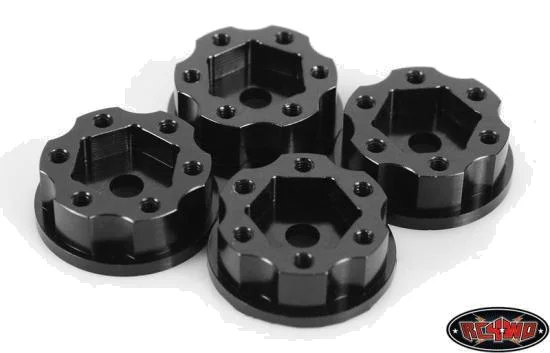

- 4x 1.9"/2.2" 6 Lug Steel Wheel Hex Hub +3 Offset
Suggested Compatibility

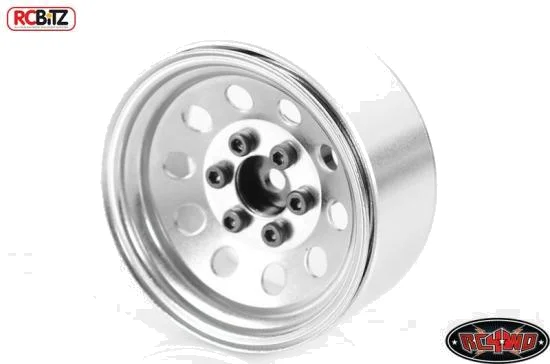

- 6 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Chrome) (Z-W0002)
- 6 Lug Wagon 1.9" Single Steel Stamped Beadlock Wheel (Chrome) (Z-Q0039)
- Pro10 1.9" Steel Stamped Beadlock Wheel (Silver) (Z-W0073)
- Pro10 1.9" Steel Stamped Beadlock Wheel (Black) (Z-W0074)
- 6 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (White) (Z-W0128)
- 6 Lug Wagon 1.9" Single Steel Stamped Beadlock Wheel (White) (Z-Q0024)
- 6 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Black) (Z-W0130)
- 6 Lug Wagon 1.9" Single Steel Stamped Beadlock Wheel (Black) (Z-Q0001)
- RC4WD Mickey Thompson Mickey Metal MT-28 Internal Beadlock Stamped 2.2" Steel Wheels (Z-W0141)
- RC4WD Mickey Thompson Mickey Metal MT-28 Internal Beadlock Stamped Single 2.2" Steel Wheel (Z-Q0048)
- RC4WD Raceline Monster 2.2" Beadlock Wheels (Z-W0174)
- 6 Lug Wagon 2.2" Steel Stamped Beadlock Wheels (White) (Z-W0146)
- 6 Lug Wagon 2.2" Single Steel Stamped Beadlock Wheels (White) (Z-Q0050)
- 6 Lug Wagon 2.2" Steel Stamped Beadlock Wheels (Black) (Z-W0190)
- RC4WD Raceline Monster 1.9" Beadlock Wheels (All Black) (Z-W0185)
- RC4WD Raceline Monster 1.9" Beadlock Wheels (Z-W0140)
- RC4WD Mickey Thompson Classic Lock 1.9" Internal Beadlock Wheel (Z-W0007)
- RC4WD Mickey Thompson Classic Lock 1.9" Single Internal Beadlock Wheel (Z-Q0049)
Notes
- The +3mm offset is relative to RC4WD optional hex hubs (Z-S0268, Z-S0530).
Secure Payments
Secured by Stripe
RC4WD 1.9 /2.2 6 Lug Steel Wheel Hex Hub +3 Offset Manuals & Guides
Specifications
1.9"/2.2" 6 Lug Steel Wheel Hex Hub +3 Offset
This is an Optional Hub for the 6 Lug Stamped Wheels. These provide additional offset compared to the stock Hub.
Specifications:
- CNC Machined
- Allows for Wider Track Width
- Once added you get a 7.75mm /.30" Backspacing
- Thickness: 0.32in / 8.3mm
What's Included:
- 4x 1.9"/2.2" 6 Lug Steel Wheel Hex Hub +3 Offset
Notes:
- The +3mm offset with these Hubs is relative to the Optional Hex Hub (Z-S0268 and Z-S0530)
- This Hub increases the offset by 3mm when compared to the standard Hex Hubs (Z-S0268 and Z-S0530)
- Fits 6 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Chrome) (Z-W0002)
- Fits 6 Lug Wagon 1.9" Single Steel Stamped Beadlock Wheel (Chrome) (Z-Q0039)
- Fits Pro10 1.9" Steel Stamped Beadlock Wheel (Silver) (Z-W0073)
- Fits Pro10 1.9" Steel Stamped Beadlock Wheel (Black) (Z-W0074)
- Fits 6 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (White) (Z-W0128)
- Fits 6 Lug Wagon 1.9" Single Steel Stamped Beadlock Wheel (White) (Z-Q0024)
- Fits 6 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (Black) (Z-W0130)
- Fits 6 Lug Wagon 1.9" Single Steel Stamped Beadlock Wheel (Black) (Z-Q0001)
- RC4WD Mickey Thompson Mickey Metal MT-28 Internal Beadlock Stamped 2.2" Steel Wheels (Z-W0141)
- Fits RC4WD Mickey Thompson Mickey Metal MT-28 Internal Beadlock Stamped Single 2.2" Steel Wheel (Z-Q0048)
- Fits RC4WD Raceline Monster 2.2" Beadlock Wheels (Z-W0174)
- Fits 6 Lug Wagon 2.2" Steel Stamped Beadlock Wheels (White) (Z-W0146)
- Fits 6 Lug Wagon 2.2" Single Steel Stamped Beadlock Wheels (White) (Z-Q0050)
- Fits 6 Lug Wagon 2.2" Steel Stamped Beadlock Wheels (Black) (Z-W0190)
- Fits RC4WD Raceline Monster 1.9" Beadlock Wheels (All Black) (Z-W0185)
- Fits RC4WD Raceline Monster 1.9" Beadlock Wheels (Z-W0140)
- Fits RC4WD Mickey Thompson Classic Lock 1.9" Internal Beadlock Wheel (Z-W0007)
- Fits RC4WD Mickey Thompson Classic Lock 1.9" Single Internal Beadlock Wheel (Z-Q0049)
Key Info:
- Brand: RC4WD
- Part No: Z-S0774
- Barcode: 610373642235
