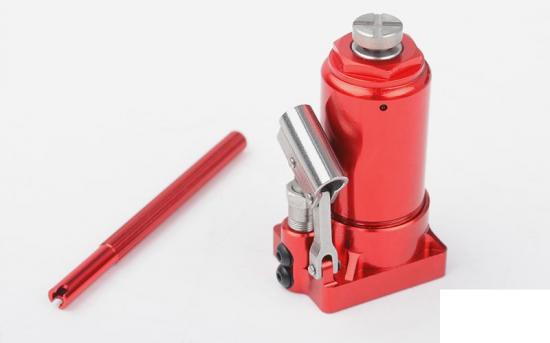

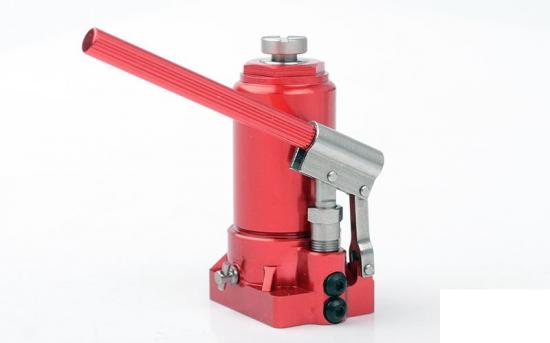

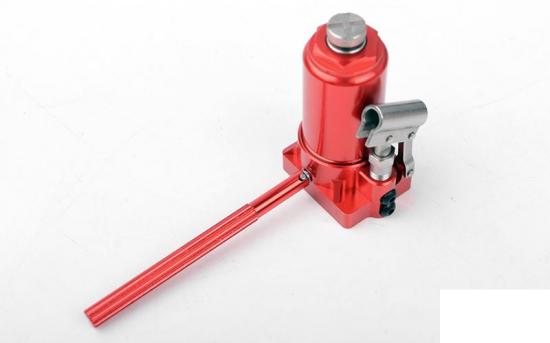

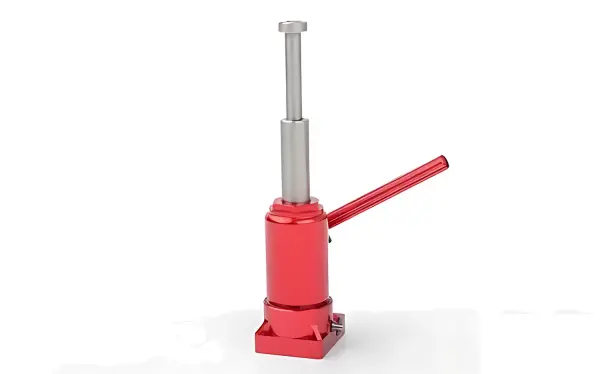

RC4WD 1:10 JDM Hydraulic Functional Bottle Jack RC4WD

The RC4WD 1:10 JDM Hydraulic Functional Bottle Jack (VVV-S0249) brings working hydraulic action to your scale setup. It features a billet aluminium base, CNC-machined construction, a red anodised finish and a stainless steel piston rod. The jack provides a 51–109mm (2.00–4.29in) lifting range with a 33lb (15kg) capacity.

Key Specifications

• Billet aluminium base
• CNC machined
• Red anodised finish
• Stainless steel piston rod
• Lifting range: 51mm–109mm (2.00in–4.29in)
• Capacity: 33lb (15kg)
• Base plate width: 0.88in (22.4mm)
• Base plate length: 1.16in (29.5mm)
• Handle length: 1.86in (47.3mm)
• Handle OD: 0.19in (4.9mm)
• Weight: 2.24oz (63.7g)

What’s Included

• 1x 1/10 JDM Hydraulic Functional Bottle Jack

Instruction Manual

Click here to download.

Notes

• Vertical jacks can only be used vertically, not horizontally or upside down.
• If the hand lever shakes and the piston rod will not reach the top, add hydraulic oil to the oil injection port using a syringe.
• When placing the jack, set it to the highest lift position. If the piston rod is retracted, do not place the jack horizontally or upside down, otherwise hydraulic oil may flow out of the vent.
