RC4WD 1:10 M416 Scale Trailer – Z-H0009

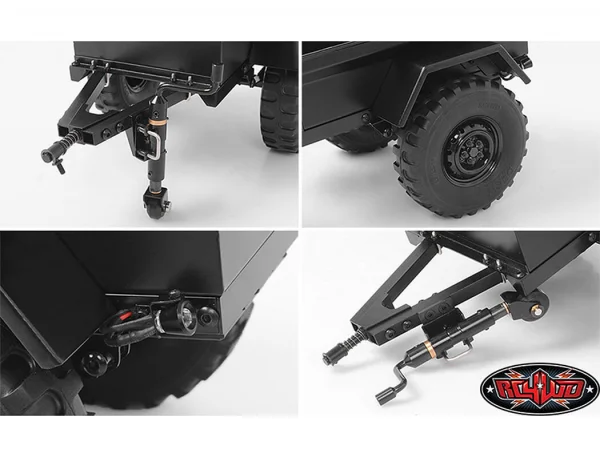

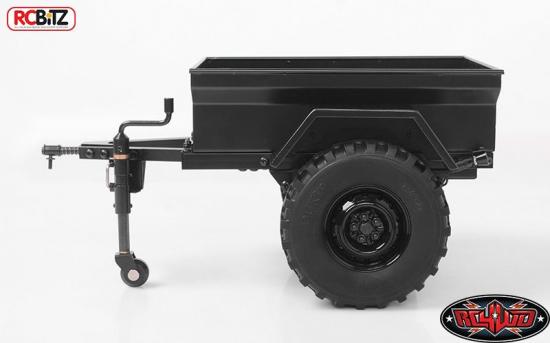

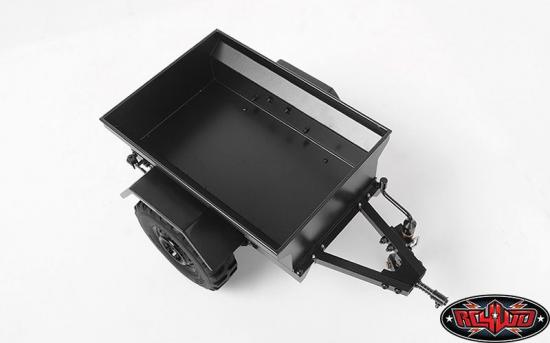

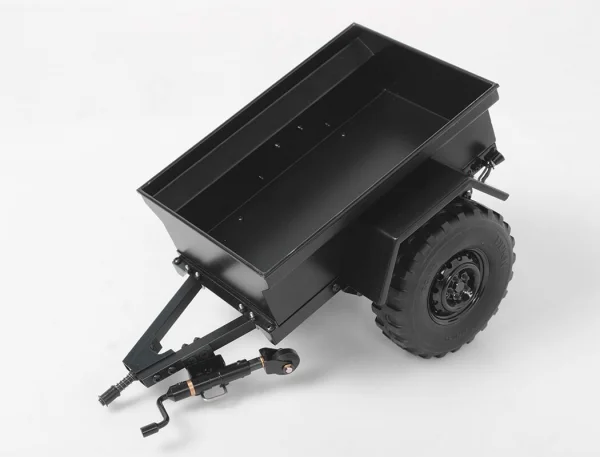

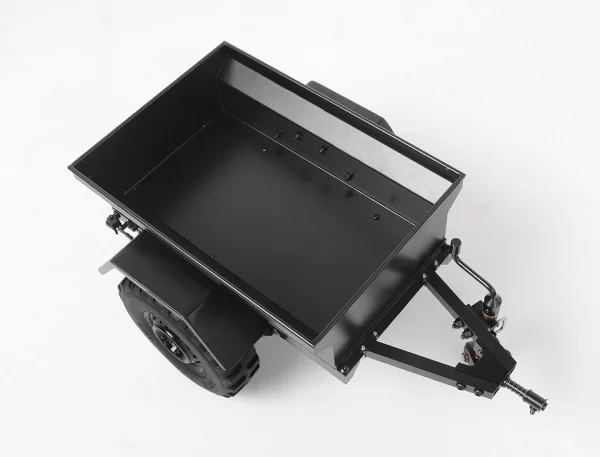

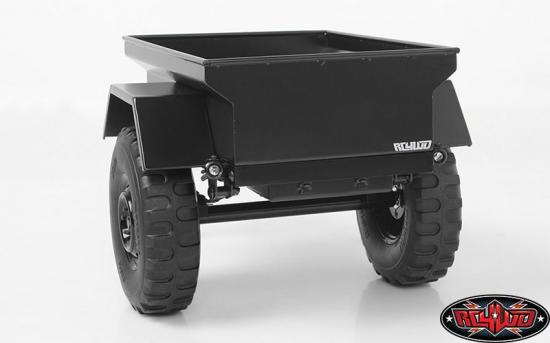

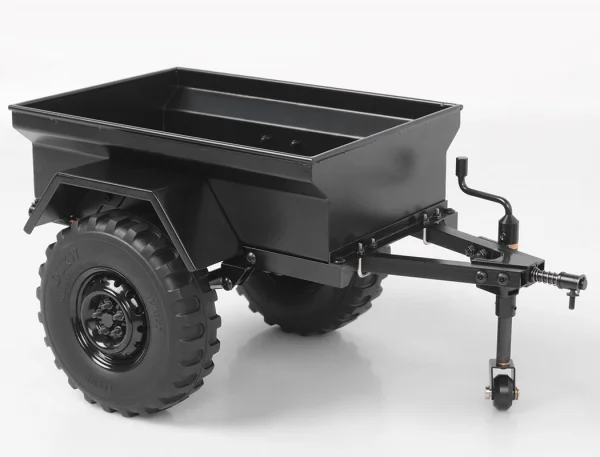

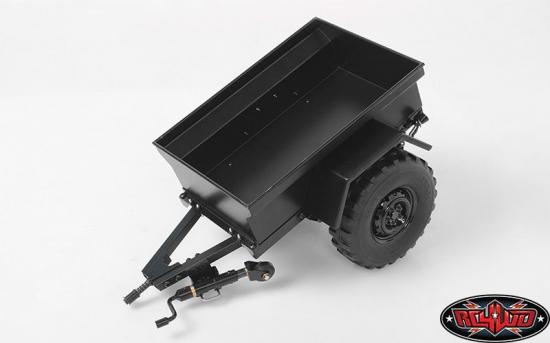

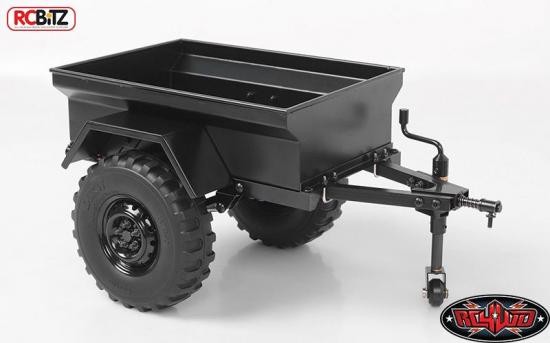

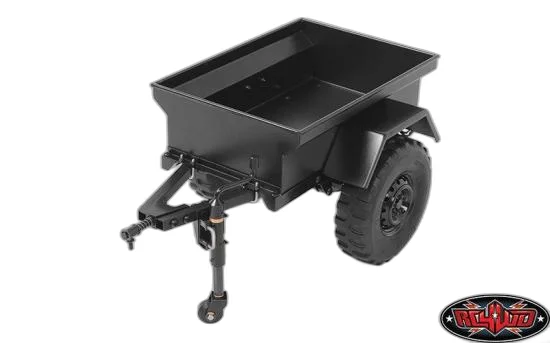

The RC4WD 1/10 M416 Scale Trailer (Z-H0009) is a hand-welded, CNC-machined steel and aluminium trailer for 1:10 scale crawlers, finished in a black powder-coated coating. It features steel leaf spring suspension, an easy clip hitch mount, 9V battery powered LED lighting with an accessible on/off switch, and 12mm hex hubs so wheels are replaceable.

Key Features

• CNC machined and stamped construction
• Steel and aluminium build with black powder-coated finish
• Hand welded for scale realism and durability
• Steel leaf spring suspension

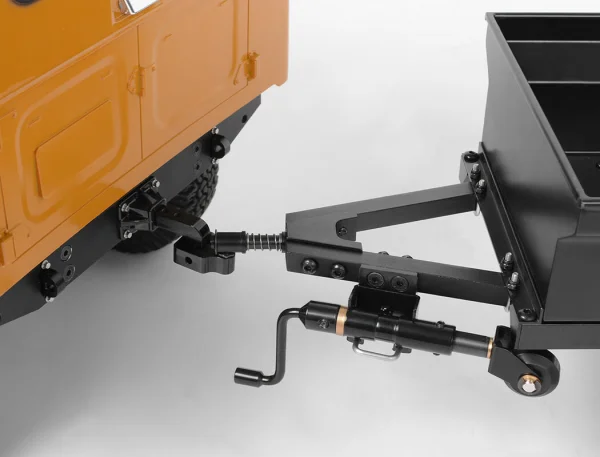

• Easy clip hitch mount
• 9V battery powered LED lighting with easy-access on/off switch
• 12mm hex hubs (replaceable wheels)

Specifications

• Length: 10.04in / 284.5mm
• Width: 7.09in / 180.0mm
• Height: 5.16in / 130.9mm
• Weight: 33.95oz / 962.5g

What’s Included

• 1x RC4WD 1/10 M416 Scale Trailer (Z-H0009)

Optional Parts

• RC4WD Adjustable Drop Hitch for Traxxas TRX-4 (Z-S1846)

Replacement Hardware

• M4 E-Clip (Z-S0919)
• Steel Flat Head Socket Cap Screws M3 x 16mm (Z-S1720)
• Nylock Nuts M3 (Black) (Z-S0629)
• M3 x 3mm Set Screw (Z-S0124)
• M3 x 10mm Set Screw (Z-S0308)
• Regular M2 Black Nuts (Z-S1144)
• Nylock Nuts M2 (Black) (Z-S0906)
• Steel Socket Head Cap Screws M2 x 6mm (Z-S0611)
• Steel Button Head Cap Screws M3 x 8mm (Z-S0652)
• Steel Flat Head Socket Cap Screw M3 x 5mm (Z-S0648)
• Steel Socket Head Cap Screws M2 x 4mm (Z-S0922)
• Steel Button Head Cap Screws M2.5 x 6mm (Z-S0764)
• Steel Button Head Cap Screws M3 x 6mm (Z-S0651)
• Steel Head Socket Cap Screws M1.6 x 3mm (Z-S1710)
• Steel Button Head Cap Screws M3 x 10mm (Z-S0653)
• Leaf Spring Shoulder Screws (Black) (Z-S0275)
• Ball Hitch M3 x 6mm (Z-S0992)

Notes and Suggested Compatibility

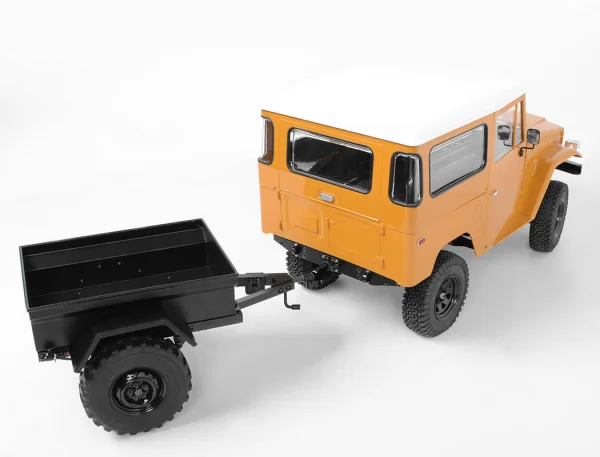

• Shown installed on RC4WD Gelande II RTR Truck Kit w/Cruiser Body Set (Z-RTR0029) with Survivor Rear Bumper for Gelande (Z-S0698) as an example; these items are not included.
• Suggested compatibility: Trail Finder 2 RTR w/Mojave Body Set (Z-RTR0019); may require Tough Armor Rear Bumper for Trail Finder 2 w/Hitch Mount (Z-S0579).
• Suggested compatibility: RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024); may require Tough Armor Rear Bumper for Trail Finder 2 w/Hitch Mount (Z-S0579).
• Suggested compatibility: RC4WD Gelande II Truck Kit w/D90 Body Set (Z-K0001); may require Survivor Rear Bumper for Gelande (Z-S0698).
• Suggested compatibility: Trail Finder 2 Truck Kit w/Mojave Body Set (Z-K0042 "Disc"); may require Tough Armor Rear Bumper for Trail Finder 2 w/Hitch Mount (Z-S0579).
• Suggested compatibility: RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049); may require Tough Armor Rear Bumper for Trail Finder 2 w/Hitch Mount (Z-S0579).
• Suggested compatibility: RC4WD Gelande II D110 Truck Kit With Hard Body (Z-K0047); may require Survivor Rear Bumper for Gelande (Z-S0698).
• Suggested compatibility includes other 12mm hex wheels.

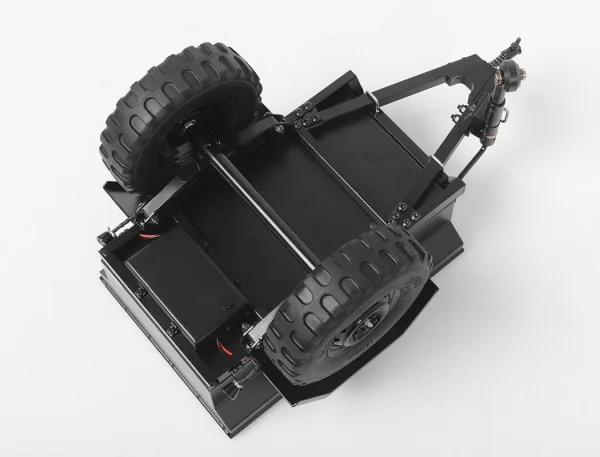

• Remove four screws from the battery compartment to install a 9V battery and enable LED lighting; the on/off switch is located on the bottom of the trailer.
