RC4WD High Precision Billet Tie Rod End (M3) Black
RC4WD High Precision Billet Tie Rod End (M3) Black
RC4WD High Precision Billet Tie Rod End (M3) Black
RC4WD High Precision Billet Tie Rod End (M3) Black
RC4WD High Precision Billet Tie Rod End (M3) Black
RC4WD High Precision Billet Tie Rod End (M3) Black
RC4WD High Precision Billet Tie Rod End (M3) Black
RC4WD High Precision Billet Tie Rod End (M3) Black

RC4WD High Precision Billet Tie Rod End (M3) Black

Brand: RC4WD

Part No: Z-S0139

£17.81 RRP £17.99
Pre-Order
Request Price Match Ask a Question Write a Review

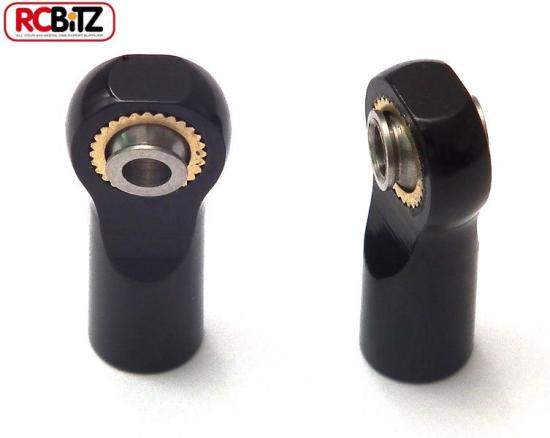

The RC4WD High Precision Billet Tie Rod End (M3) in Black (part number Z-S0139) is a durable aluminium rod end designed for precise linkage setups. CNC machined and supplied with a stainless steel ball, it offers a robust upgrade over plastic rod ends for RC crawlers and scale trucks.

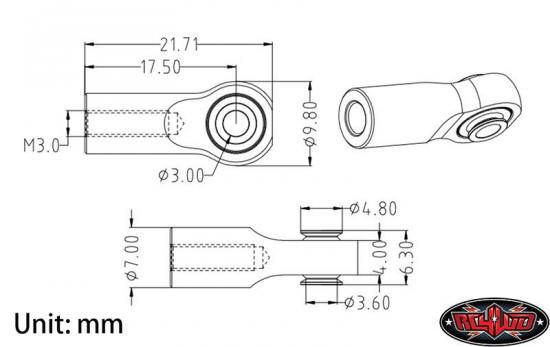

Key Features & Specs

  • Manufactured and engineered by RC4WD USA
  • 24mm length
  • 6mm shaft diameter; 10mm ball area diameter
  • Centre hole to end of the ball end: 5mm and 19mm
  • Ball hole: 3mm
  • CNC-machined rugged aluminium construction
  • Preinstalled stainless steel ball
  • Fits 3mm threaded shaft (M3)

What’s Included

  • 1x M3 Medium Straight Aluminium Rod End (Black)

Suggested Compatibility

  • Manufacturer notes suggest replacement for plastic rod end Z-S0399
  • Manufacturer notes indicate approx. quantities needed: Gelande 2 D110 Kit/RTR (10x), Gelande 2 D90 Kit/RTR (10x), Gelande 2 Cruiser Kit (10x), Beast 2 Kit (14x)

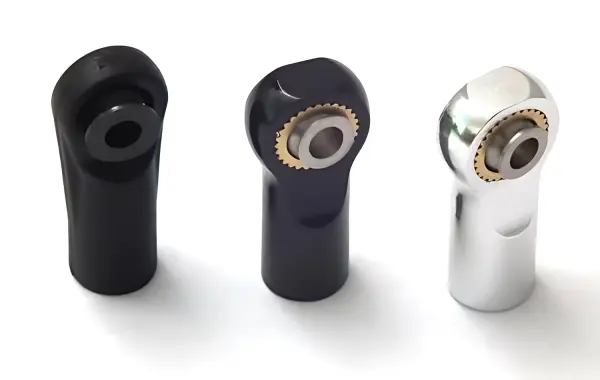

Optional Colours

  • Silver (10): Z-S1638
  • Red (10): Z-S1640
  • Blue (10): Z-S1642
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

M3 Medium Straight Aluminum Rod Ends (Black) (1)
Perfect upgrade to replace your plastic rod ends. The aluminum rod ends are a great heavy duty upgrade replacement. Direct replacement to Z-S0399.
Specifications:
  • Manufactured & Engineered by RC4WD USA
  • 24mm Long & 6mm Diameter (Shaft Area) & 10mm Diameter (Ball Area)
  • Center Hole to End of the Ball End is 5mm and 19mm
  • Ball Hole is 3mm
  • CNC Machined Rugged Aluminum Construction
  • Preinstalled with a Stainless Steel Ball
  • Fits 3mm Threaded Shaft (M3)
  • Replaces Plastic Rod End Z-S0399

What's Included:
  • 1x M3 Medium Straight Aluminum Rod Ends (Black)

Optional Colors:
  • M3 Medium Straight Aluminum Rod Ends (Silver) (10) (Z-S1638)
  • M3 Medium Straight Aluminum Rod Ends (Red) (10) (Z-S1640)
  • M3 Medium Straight Aluminum Rod Ends (Blue) (10) (Z-S1642)

Notes:
  • 10x Single Rod Ends Needed to Replace Gelande 2 D110 Kit and RTR
  • 10x Single Rod Ends Needed to Replace Gelande 2 D90 Kit and RTR
  • 10x Single Rod Ends Needed to Replace Gelande 2 Cruiser Kit
  • 14x Single Rod Ends Needed to Replace Beast 2 Kit
  • Replacement for Plastic Rod End (Z-S0399)

Click here to see our full line of rod end specification comparison list.


Key Info:
  • Brand: RC4WD
  • Part No: Z-S0139
  • Barcode: 610373632090
