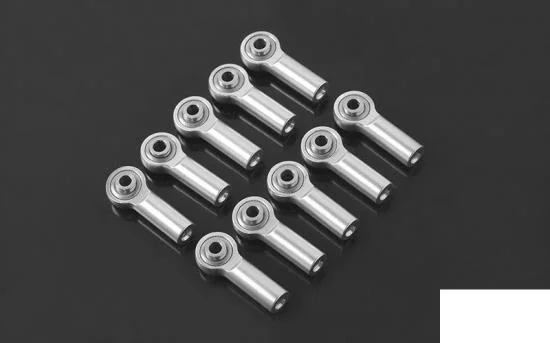

RC4WD M3 Aluminium Rod Ends (Silver) (10) – Z-S1638
Brand: RC4WD
Part No: Z-S1638
Out of stock
Request Stock NotificationFinance options available at checkout.
Fits These Models (6)
RC4WD Gelande II RTR - 2015 Land Rover Defender D90
RC4WD Gelande II RTR Truck w/Cruiser Body Set RC4WD
RC4WD Gelande II Truck Kit
RC4WD Gelande II Truck Kit - 2015 Land Rover Defender D90
RC4WD Gelande II Truck Kit With Cruiser Body Set 2025
RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set RC4WD
You May Also Need
Add-ons and accessories that go with the RC4WD M3 Medium Straight Aluminium Rod Ends (Silver) (10) RC4WD
Description
Upgrade your link and steering hardware with RC4WD M3 Medium Straight Aluminium Rod Ends in Silver. This RC4WD Z-S1638 pack includes ten CNC-machined aluminium ends with preinstalled stainless steel balls, offering a robust alternative to plastic rod ends and a clean, functional finish for your build.
Key Features
- CNC machined, rugged aluminium construction
- Preinstalled stainless steel ball
- Manufactured and engineered by RC4WD USA
- Fits 3mm threaded shafts (M3)
- Direct replacement for plastic rod end Z-S0399

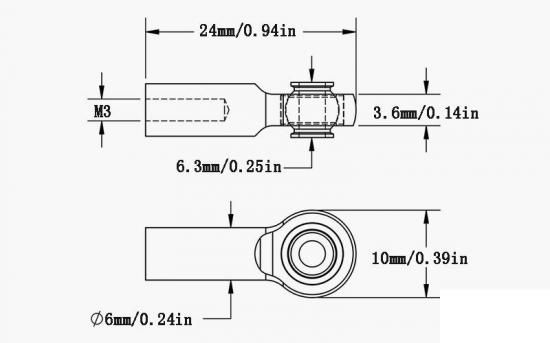

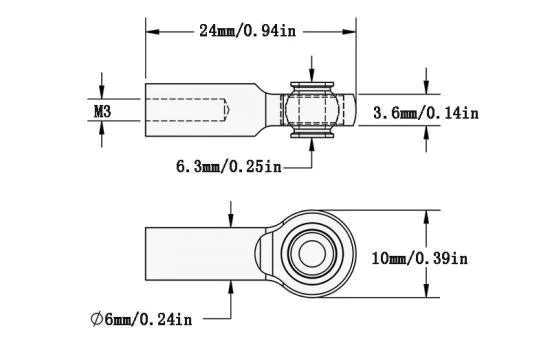

Specifications
- Length: 24mm
- Shaft diameter: 6mm
- Ball area diameter: 10mm
- Ball hole: 3mm
- Centre hole to end of ball end: 5mm and 19mm
What’s Included
- 10x M3 Medium Straight Aluminium Rod Ends (Silver)
Optional Colours
- M3 Medium Straight Aluminium Rod Ends (Red) (10) – Z-S1640
- M3 Medium Straight Aluminium Rod Ends (Blue) (10) – Z-S1642
- M3 Medium Straight Aluminium Rod Ends (Black) (10) – Z-S1644
Suggested Compatibility
- Gelande 2 D110 Kit and RTR: 10x single rod ends
- Gelande 2 D90 Kit and RTR: 10x single rod ends
- Gelande 2 Cruiser Kit: 10x single rod ends
- Beast 2 Kit: 14x single rod ends
Secured by Stripe
Specifications
M3 Medium Straight Aluminum Rod Ends (Silver) (10)
Perfect upgrade to replace your plastic rod ends. The aluminum rod ends are a great heavy duty upgrade replacement. Direct replacement to Z-S0399.
Specifications:
- Manufactured & Engineered by RC4WD USA
- 24mm Long & 6mm Diameter (Shaft Area) & 10mm Diameter (Ball Area)
- Center Hole to End of the Ball End is 5mm and 19mm
- Ball Hole is 3mm
- CNC Machined Rugged Aluminum Construction
- Preinstalled with a Stainless Steel Ball
- Fits 3mm Threaded Shaft (M3)
- Replaces Plastic Rod End Z-S0399
What's Included:
- 10x M3 Medium Straight Aluminum Rod Ends (Silver)
Optional Colors:
- M3 Medium Straight Aluminum Rod Ends (Red) (10) (Z-S1640)
- M3 Medium Straight Aluminum Rod Ends (Blue) (10) (Z-S1642)
- M3 Medium Straight Aluminum Rod Ends (Black) (10) (Z-S1644)
Notes:
- 10x Single Rod Ends Needed to Replace Gelande 2 D110 Kit and RTR
- 10x Single Rod Ends Needed to Replace Gelande 2 D90 Kit and RTR
- 10x Single Rod Ends Needed to Replace Gelande 2 Cruiser Kit
- 14x Single Rod Ends Needed to Replace Beast 2 Kit
- Replacement for Plastic Rod End (Z-S0399)
Click here to see our full line of rod end specification comparison list.
