RC4WD King Off-Road Dual Spring Shocks (110mm Medium OD)
Brand: RC4WD
Part No: Z-D0065
£44.64
RRP £46.99
Shadow Stock: Usually ships next day
The RC4WD King Off-Road Dual Spring Shocks (110mm Medium OD) deliver licensed scale detail and dependable performance in a larger body diameter. Precision-machined from billet aluminium with King branding, these coilover shocks feature a true dual-spring design and steel rod end balls, offering durability and smooth suspension action for demanding terrain.
Features & Specs
- Officially licensed King Off-Road dual-spring design
- Machined billet aluminium construction
- King logo on top cap and retainer ring
- Steel rod end ball
- Shock length (hole-to-hole, compressed): 75mm (2.95in)
- Shock length (hole-to-hole, uncompressed): 110mm (4.33in)
- Overall length: 119.44mm (4.7in)
- Travel: 25mm (0.98in)
- Shock body OD: 12.6mm (0.49in)
- Shaft OD: 3.97mm (0.15in)
- Spring body OD: 16.8mm (0.66in); ID: 14.8mm (0.58in)
- Ball width: 6.3mm (0.25in)
- Ball lip diameter: 4.8mm (0.19in)
- Ball ID: 3mm
- Weight (each): 28g (0.98oz)
What’s Included
- 2x RC4WD King Off-Road Dual Spring Shocks (110mm Medium OD)
- 1x King decal sheet
Optional Parts
- RC4WD King Off-Road Dual Spring Shocks (80mm Medium OD) (Z-D0055)
- RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)
- RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD) (Z-D0063)
- RC4WD King Off-Road Dual Spring Shocks (120mm Medium OD) (Z-D0067)
Replacement Parts
- Rebuild Kit for King Off-Road Dual Spring Shocks (Z-S1263)
- Replacement Shock Shafts for King Dual Spring Shocks (110mm) (Z-S1281)
- RC4WD Shock Cap for Top of King Off-Road Shocks (Z-S1280)
- RC4WD Lower, Centre and Threaded Spring Retainer for King Off-Road Shocks (Z-S1282)
- RC4WD 110mm King Off-Road Dual Spring Shocks Spring Assortment (Z-S1291)
Notes & Suggested Compatibility
- Suggested compatibility: RC4WD Timberwolf Scale Crawler Kit (Bolted Chrome) (Z-K0016 "Disc") – Front/Rear.
- Apply blue (medium) thread lock to the bottom shock shaft rod end during installation.
- Images may show installation on a 1/10 Timberwolf RTR for example; vehicle not included.
Secure Payments
Secured by Stripe
RC4WD King Off-Road Dual Spring Shocks (110mm Medium OD)
These are the all new Licensed Dual Spring Shocks to hit the market and are officially Licensed from King Off-Road Shocks. These new shocks feature a completely new design from the ground up and are built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks!
Now in a larger body diameter.
Specifications:
- Machined Billet Aluminum
- King on Top and Retainer Ring
- Dual Spring Design
- Steel Rod End Ball
- Ball Width: 0.25in / 6.3mm
- Ball Lip Diameter: 0.19in / 4.8mm
- Ball ID: 0.12im / 3mm
- Hole to Hole (Compressed): 2.95in / 75mm
- Hole to Hole (Uncompressed): 4.33in /110mm
- Overall Length: 4.7in / 119.44mm
- Travel Length: 0.98in / 25mm
- Shock Body OD: 0.49in / 12.6mm
- Shaft OD: 0.15in / 3.97mm
- Spring Body OD: 0.66in / 16.8mm
- Spring Body ID: 0.58in / 14.8mm
- Each Weight: 0.98oz / 28g

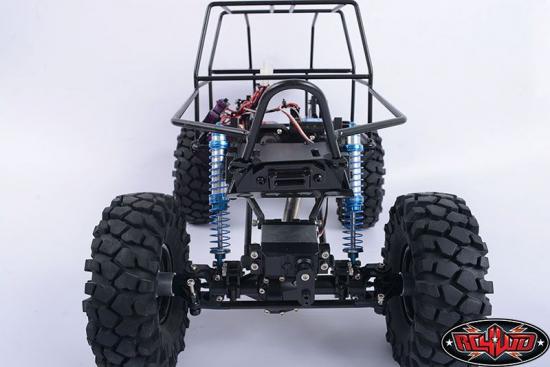

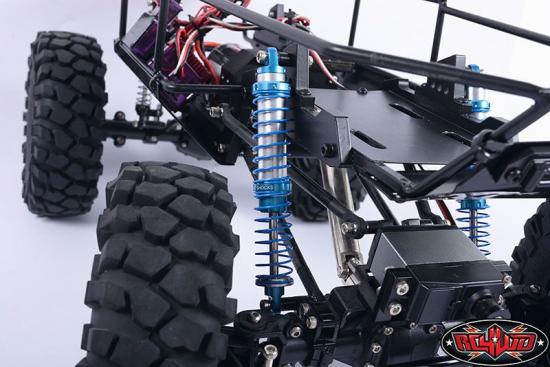

Shown installed with 1/10 Timberwolf Scale All Terrain Truck RTR for example (Not Included)
What's Included:
- 2x RC4WD King Off-Road Dual Spring Shocks (110mm Medium OD)
- 1x King Decal Sheet
Optional Parts:
- RC4WD King Off-Road Dual Spring Shocks (80mm Medium OD) (Z-D0055)
- RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)
- RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD) (Z-D0063)
- RC4WD King Off-Road Dual Spring Shocks (120mm Medium OD) (Z-D0067)
Replacement Parts:
- Rebuild Kit for King Off-Road Dual Spring Shocks (Z-S1263)
- Replacement Shock Shafts for King Dual Spring Shocks (110mm) (Z-S1281)
- RC4WD Shock Cap for Top of King Offroad Shocks (Z-S1280)
- RC4WD Lower, Center and Threaded Spring Retainer for King Offroad Shocks (Z-S1282)
- RC4WD 110mm King Off-Road Dual Spring Shocks Spring Assortment (Z-S1291)
Notes:
- Fits RC4WD Timberwolf Scale Crawler Kit (Bolted Chrome) (Z-K0016 "Disc") (Front / Rear)
- Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.
King Off-Road is a registered trademark of the King Off-Road Shock company. The King Off-Road logo is property of King Off-Road Shocks and used under license by RC4WD.
Key Info:
- Brand: RC4WD
- Part No: Z-D0065
- Barcode: 639302582862
