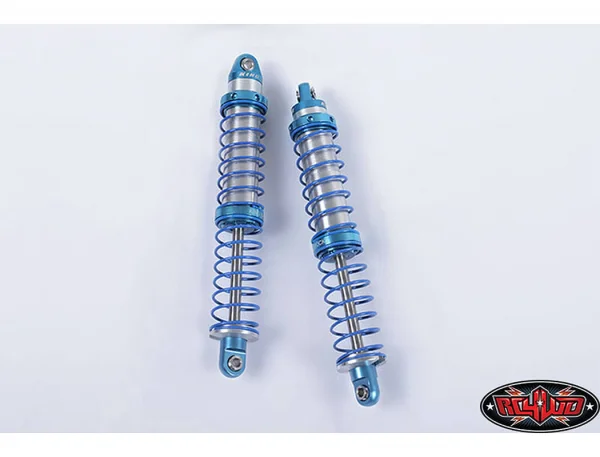

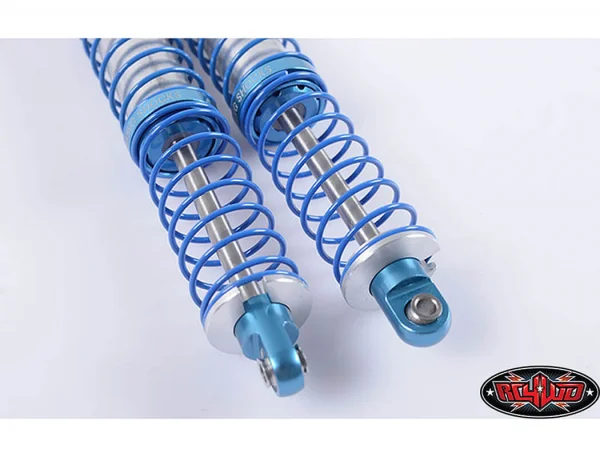

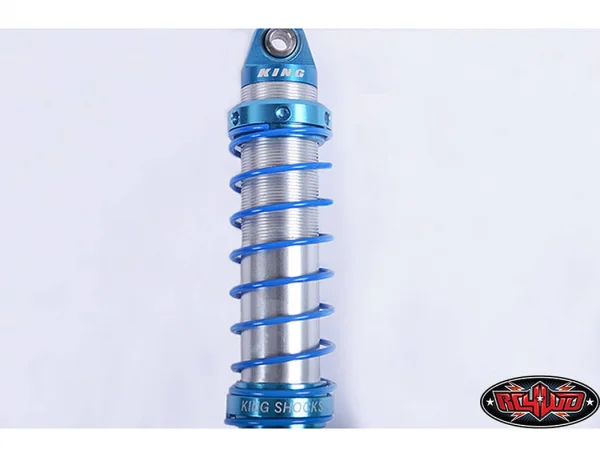

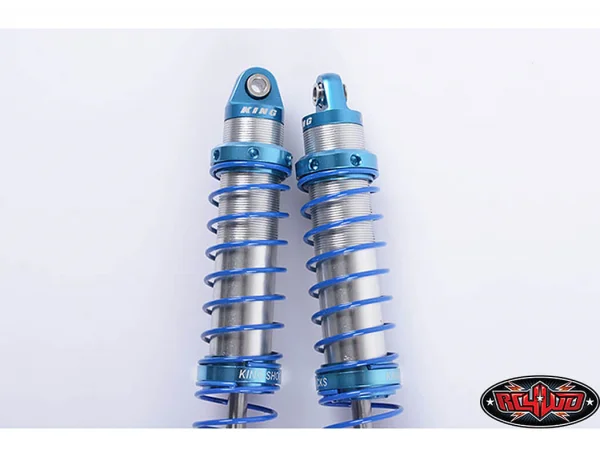

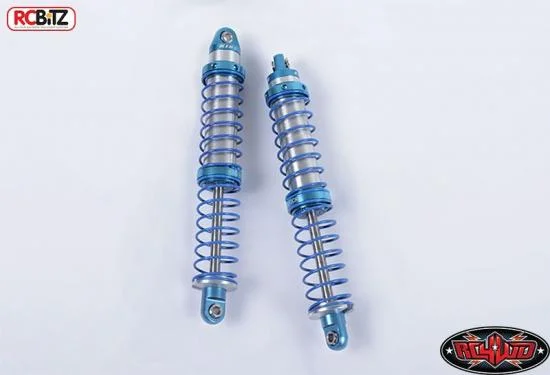

RC4WD King Off-Road Dual Spring Shocks (120mm Medium OD)
Brand: RC4WD
Part No: Z-D0067
£44.64
RRP £46.99
Shadow Stock: Usually ships next day
The RC4WD King Off-Road Dual Spring Shocks (120mm Medium OD) deliver licensed King performance and scale looks for your crawler. Built around a larger body diameter with a fresh design, these shocks combine a dual-spring setup with precision-machined billet aluminium components and steel rod end balls for durability and smooth suspension action.
Key Features
- Officially licensed by King Off-Road Shocks
- Machined billet aluminium construction
- Dual spring design for tunable support
- Steel rod end ball
- King logo on top cap and retainer ring
- Larger body diameter for enhanced scale presence
Specifications
- Ball Width: 0.25in / 6.3mm
- Ball Lip Diameter: 0.19in / 4.8mm
- Ball ID: 0.12in / 3mm
- Hole to Hole (Compressed): 3.15in / 80mm
- Hole to Hole (Uncompressed): 4.72in / 120mm
- Overall Length: 5.09in / 129.3mm
- Travel Length: 1.57in / 40mm
- Shock Body OD: 0.49in / 12.6mm
- Shaft OD: 0.15in / 3.97mm
- Spring Body OD: 0.66in / 16.98mm
- Spring Body ID: 0.58in / 14.8mm
- Each Weight: 1.05oz / 30g
What’s Included
- 2x RC4WD King Off-Road Dual Spring Shocks (120mm Medium OD)
- 1x King Decal Sheet
Optional Parts
- RC4WD King Off-Road Dual Spring Shocks (80mm Medium OD) (Z-D0055)
- RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)
- RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD) (Z-D0063)
- RC4WD King Off-Road Dual Spring Shocks (110mm Medium OD) (Z-D0065)
Replacement Parts
- Rebuild Kit for King Off-Road Dual Spring Shocks (Z-S1263)
- Replacement Shock Shafts for King Dual Spring Shocks (120mm) (Z-S1283)
- Cap for Top of King Offroad Shocks (Z-S1280)
- Lower, Center and Threaded Spring Retainer for King Offroad Shocks (Z-S1282)
- 120mm King Off-Road Dual Spring Shocks Spring Assortment (Z-S1293)
Notes
- Suggested compatibility: RC4WD Timberwolf Scale Crawler Kit (Bolted Chrome) (Z-K0016 "Disc") (Front / Rear).

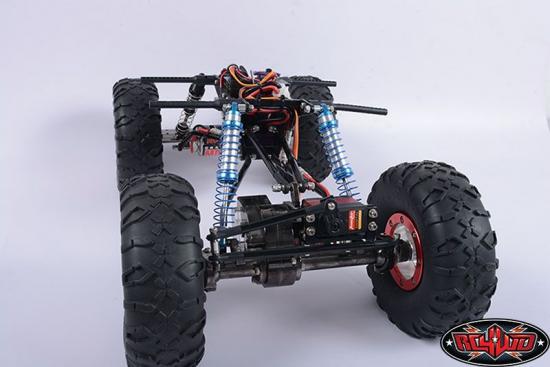

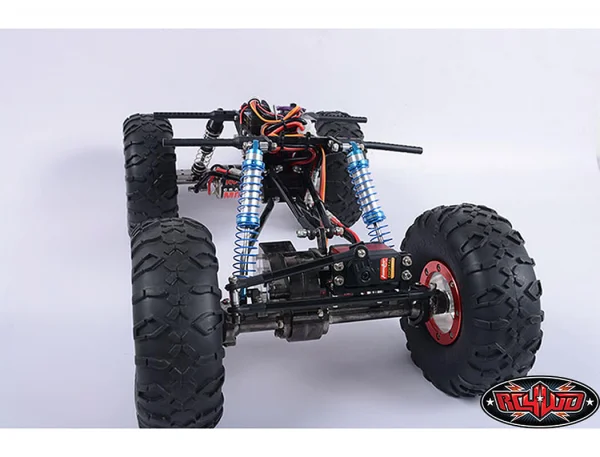

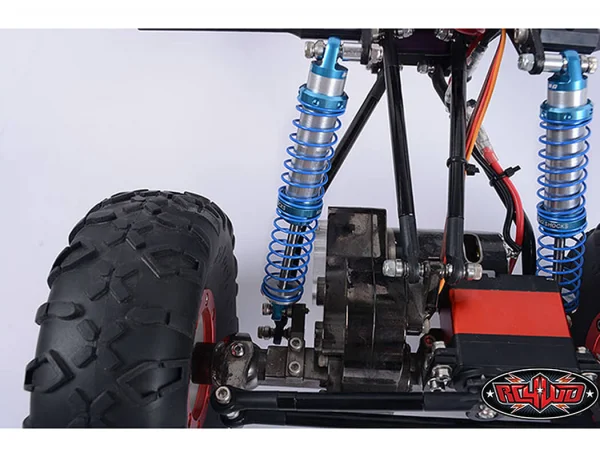

- Shown installed with 1/10 Bully 2.2 Comp RTR Crawler for example (not included).
- Use blue (medium) thread lock on the bottom shock shaft rod end before installing to help keep it in place.
Secure Payments
Secured by Stripe
RC4WD King Off-Road Dual Spring Shocks (120mm Medium OD)
These are the all new Licensed Dual Spring Shocks to hit the market and are officially Licensed from King Off-Road Shocks. These new shocks feature a completely new design from the ground up and are built and ready to handle the rocks. Your scale build will never be the same once you bolt up a set of these awesome looking shocks!
Now in a larger body diameter.
Specifications:
- Machined Billet Aluminum
- King on Top and Retainer Ring
- Dual Spring Design
- Steel Rod End Ball
- Ball Width: 0.25in / 6.3mm
- Ball Lip Diameter: 0.19in / 4.8mm
- Ball ID: 0.12im / 3mm
- Hole to Hole (Compressed): 3.15in / 80mm
- Hole to Hole (Uncompressed): 4.72in /120mm
- Overall Length: 5.09in / 129.3mm
- Travel Length: 1.57in / 40mm
- Shock Body OD: 0.49in / 12.6mm
- Shaft OD: 0.15in / 3.97mm
- Spring Body OD: 0.66in / 16.98mm
- Spring Body ID: 0.58in / 14.8mm
- Each Weight: 1.05oz / 30g
Shown installed with 1/10 Bully 2.2 Comp RTR Crawler for example (Not Included)
What's Included:
- 2x RC4WD King Off-Road Dual Spring Shocks (120mm Medium OD)
- 1x King Decal Sheet
Optional Parts:
- RC4WD King Off-Road Dual Spring Shocks (80mm Medium OD) (Z-D0055)
- RC4WD King Off-Road Dual Spring Shocks (90mm Medium OD) (Z-D0061)
- RC4WD King Off-Road Dual Spring Shocks (100mm Medium OD) (Z-D0063)
- RC4WD King Off-Road Dual Spring Shocks (110mm Medium OD) (Z-D0065)
Replacement Parts:
- Rebuild Kit for King Off-Road Dual Spring Shocks (Z-S1263)
- Replacement Shock Shafts for King Dual Spring Shocks (120mm) (Z-S1283)
- RC4WD Cap for Top of King Offroad Shocks (Z-S1280)
- RC4WD Lower, Center and Threaded Spring Retainer for King Offroad Shocks (Z-S1282)
- RC4WD 120mm King Off-Road Dual Spring Shocks Spring Assortment (Z-S1293)
Notes:
- Fits RC4WD Timberwolf Scale Crawler Kit (Bolted Chrome) (Z-K0016 "Disc") (Front / Rear)
- Use blue (medium) thread lock to the bottom shock shaft rod end before installing onto your vehicle to help keep it in place.
King Off-Road is a registered trademark of the King Off-Road Shock company. The King Off-Road logo is property of King Off-Road Shocks and used under license by RC4WD.
Key Info:
- Brand: RC4WD
- Part No: Z-D0067
- Barcode: 639302582879
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
All reviews are subject to moderation
Questions & Answers
Real questions from real customers. Why not ask your own?
Would these shocks fit a rock crawler
David Howard / 15th August 2024
They are for rock crawlers yes but check the sizes as these are 120mm long.
