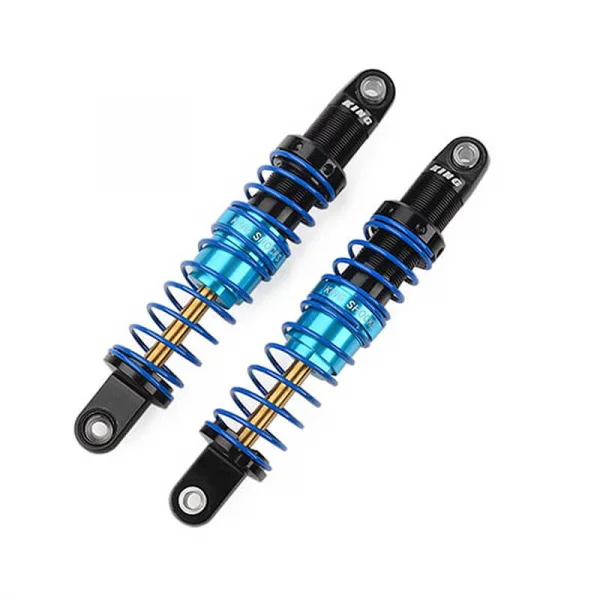

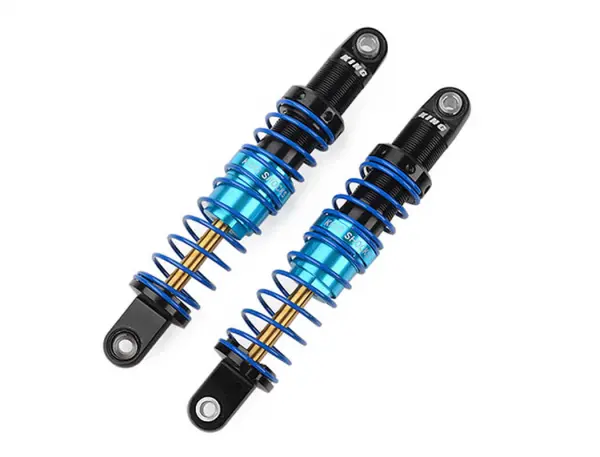

RC4WD King Off-Road Racing Shocks 80mm (2) – Z-D0006

Upgrade your scale crawler with the RC4WD King Off-Road Racing Shocks 80mm (pair), part number Z-D0006. Officially licensed by King Off-Road Shocks, this set blends show-quality details with performance for rough and rocky terrain, making it a popular choice for scale builds.

Each shock features a machined billet aluminium body with laser-etched King branding, a dual spring design for tunability, and X-ring gaskets to enhance oil sealing. Titanium nitride coated shock shafts help reduce friction and wear, while the 80mm length provides versatile setup options.

Key Features

• Machined billet aluminium construction

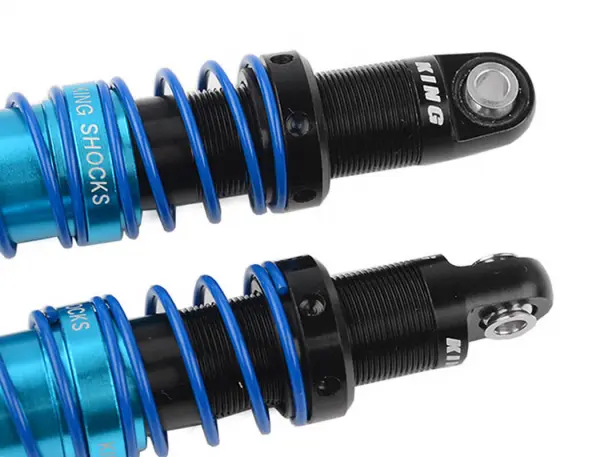

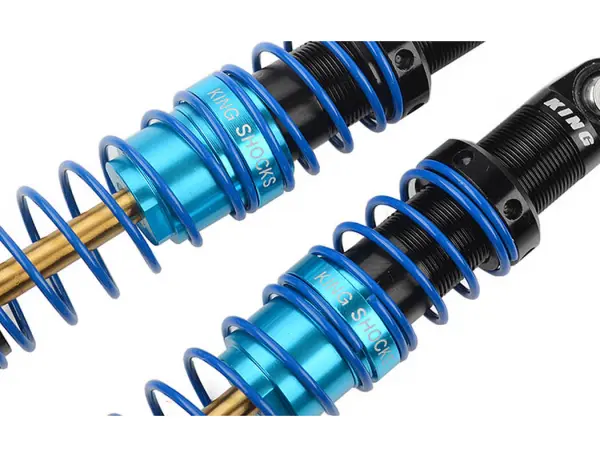

• King laser-etched top cap and retainer ring
• Dual spring design
• X-ring gaskets
• Titanium nitride coated shock shafts

Specifications

• Hole to hole (compressed): 2.44 in / 62 mm
• Hole to hole (uncompressed): 3.14 in / 80 mm
• Overall length: 3.54 in / 90 mm
• Travel length: 0.70 in / 18.0 mm
• Shock body OD: 0.57 in / 14.6 mm
• Shaft OD: 0.15 in / 3.9 mm
• Weight (each): 0.65 oz / 18.7 g

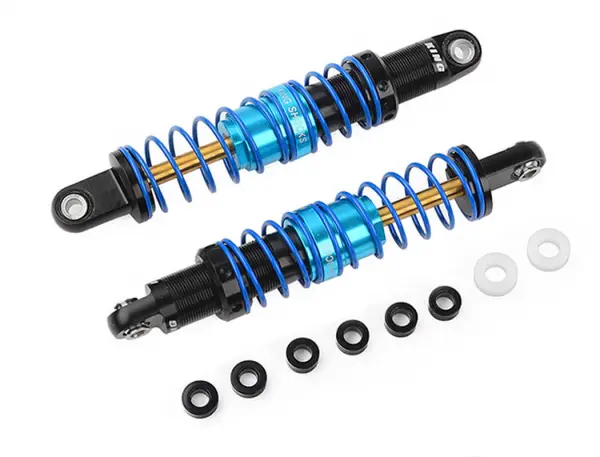

What's Included

• 2 x RC4WD King Off-Road Racing Shocks (80mm)
• 2 x White shaft guides
• 4 x 3 x 5.5 x 2.7 mm black spacers
• 2 x 3 x 5.5 x 2 mm black spacers
• 1 x King decal sheet

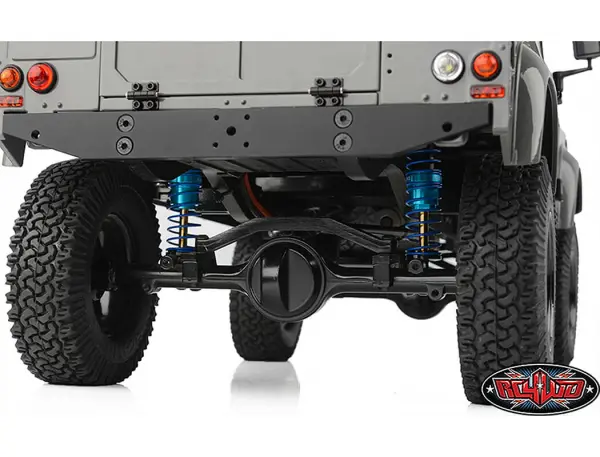

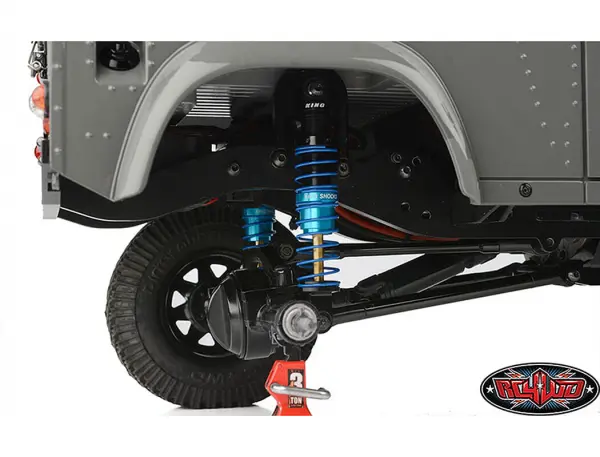

Suggested Compatibility

• Traxxas TRX-4 Land Rover Defender
• Traxxas TRX-4 '79 Bronco Ranger XLT
• Traxxas TRX-4 Sport Kit
• Traxxas TRX-4 Sport
• Traxxas TRX-4 Crawler Kit
• Traxxas TRX-4 Mercedes-Benz G 500 4x4
• Traxxas TRX-4 Chevrolet K5 Blazer
• Traxxas TRX-6 Mercedes-Benz G 63 6x6
• RC4WD Gelande II RTR w/ 2015 Land Rover Defender D90 Body Set (Autobiography Limited Edition) (Z-RTR0043)
• RC4WD Gelande II RTR w/ 2015 Land Rover Defender D90 Body Set (Heritage Edition) (Z-RTR0044)
• RC4WD Gelande II RTR Truck w/ Cruiser Body Set (Red) (Z-RTR0047)
• RC4WD Gelande II Truck Kit w/ Cruiser Body Set (Z-K0051)
• RC4WD Gelande II Truck Kit 1/10 Chassis Kit (Z-K0060)
• RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set (Z-K0064)

Notes

• Titanium nitride (TiN) shafts are designed for long-term wear resistance.
• X-ring gaskets provide double oil seals in the shock cartridge.
• Ball ends have suggested compatibility with Traxxas TRX-4 axle and shock hoop mounts.
• Shocks are supplied without oil. It is recommended to use silicone shock oil and thick shock grease on the X-rings.
• Additional X-ring spacers are included for fine tuning. A 2.7 mm spacer is installed for maximum sealing compression; the 2.5 mm spacer can be used to allow the shaft to move more freely through the X-rings.
• For Axial SCX10-3 installations, it is suggested to use a 5 mm black spacer with M3 hole (Z-S0821) on the shock tower.
