RC4WD Leaf Under Mounts for Yota 2 / K44 Axles RC4WD

Enhance your scale stance with the RC4WD Leaf Under Mounts for Yota 2 / K44 Axles (Z-S2135). These CNC-machined billet aluminium mounts feature a durable black anodised finish and are designed to lower your truck by approximately 10–12mm. Supplied with M3 hardware for a neat, secure installation.

Specifications

• CNC machined
• Billet aluminium
• Black anodised finish
• Total weight: 0.56oz / 16.0g

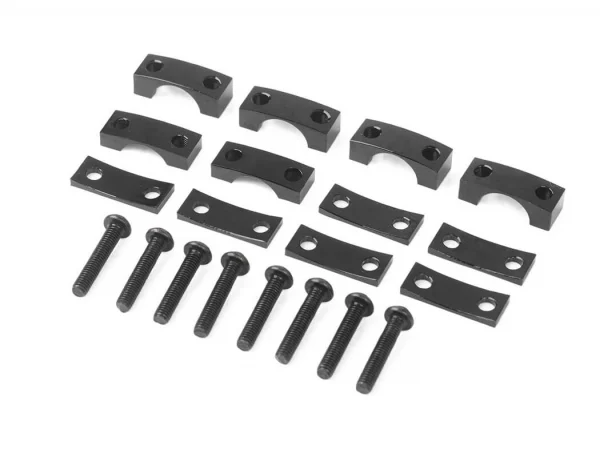

What’s Included

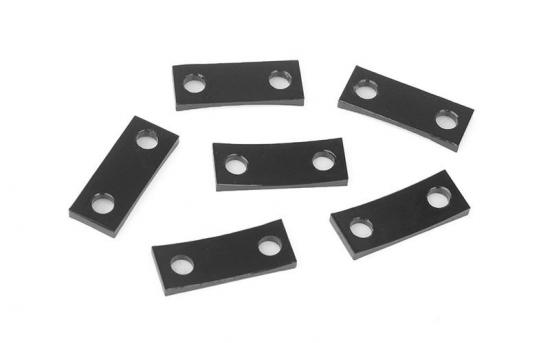

• 1x Leaf Under Mounts for Yota 2 / K44 Axles
• 8x M3 x 16mm steel button head cap screws

Replacement Hardware

• Steel Button Head Cap Screws M3 x 16mm (10) (Z-S0656)

Suggested Compatibility

• Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
• Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
• K44 Ultimate Scale Cast Front Axle (Z-A0101)
• K44 Ultimate Scale Cast Rear Axle (Z-A0096)

Important Notes

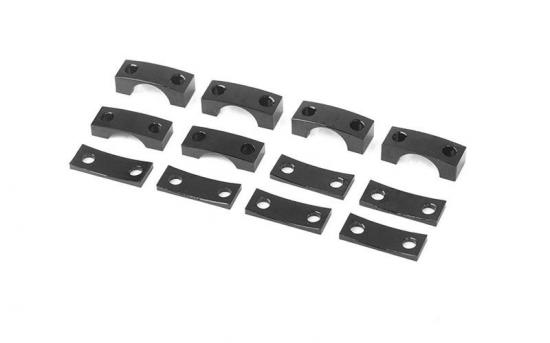

• For K44 axles, use the thicker brackets on both front and rear.
• For Yota II axles, use the thinner bracket on the front and the thicker bracket on the rear.
• Will not fit Yota I axles.
• Interference with steering, driveline or axle pumpkin may occur; modification may be required.
• Recommended shocks: RC4WD Bilstein SZ Series 50mm Scale Shock Absorbers (Z-D0081). Works with Front Shock Hoops for Gelande 2 (Z-S0798) or Trail Finder 2 (Z-S0597). Taller hoops should use 60–70mm shocks. Changes to shocks/hoops may be required and suspension travel may be limited.
• Best installed with RC4WD TCI Heavy Duty R4 Single Speed Transmission (Z-U0031) or R4 Single Speed w/ O/U Drive Transfer Case (Z-U0040). May cause driveshaft rubbing with R3 Scale 2 Speed (Z-U0025) and R3 Scale Single Speed (Z-U0028).

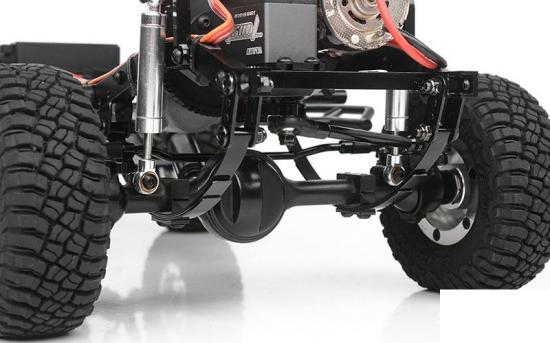

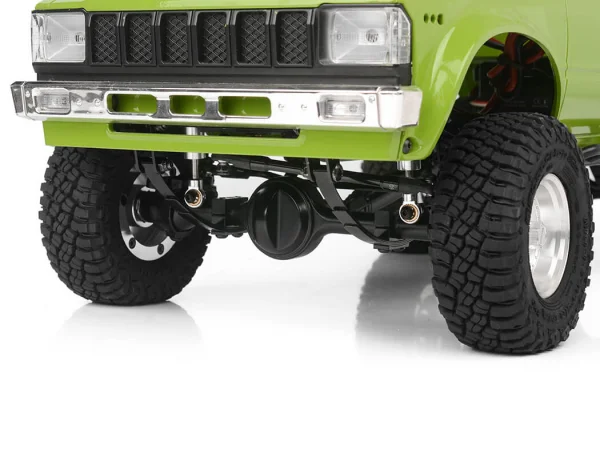

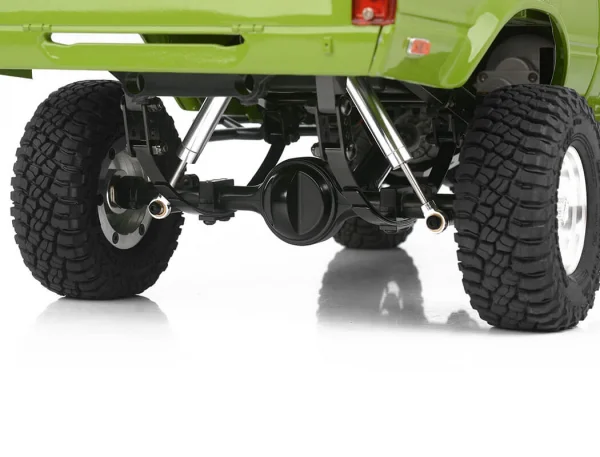

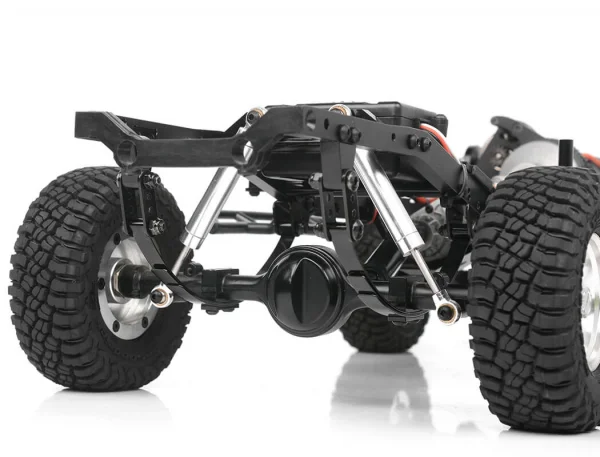

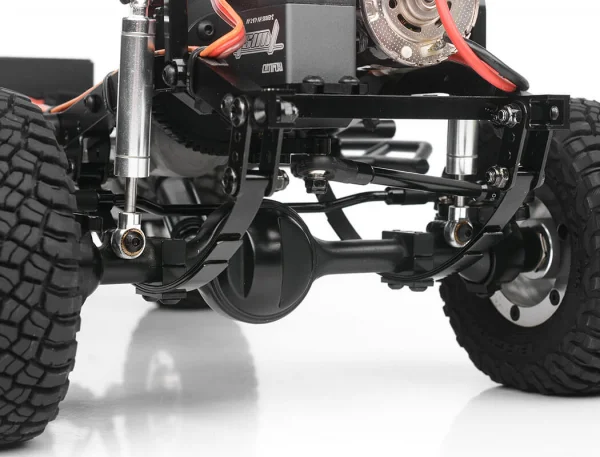

• Shown installed on the RC4WD Trail Finder 2 RTR w/Mojave II Body Set for example only (not included).
