RC4WD M3 Short Straight Aluminium Rod Ends (Black) (10)

The RC4WD M3 Short Straight Aluminium Rod Ends in black (part Z-S1636) are a durable upgrade over plastic rod ends. CNC machined from rugged aluminium and preinstalled with stainless steel balls, this pack of 10 offers a precise, heavy-duty replacement and serves as a direct replacement for RC4WD plastic rod end Z-S0398.

Key Specifications

• Manufactured & engineered by RC4WD USA

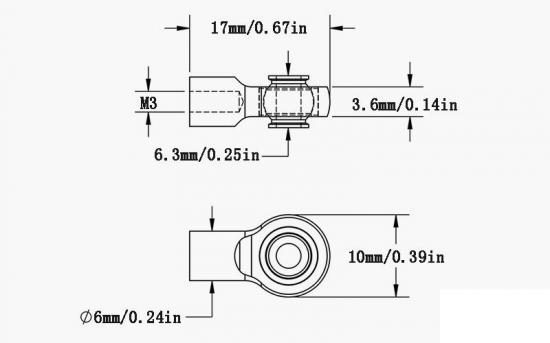

• 17mm long; 6mm diameter (shaft area); 10mm diameter (ball area)
• Centre hole to end of the ball end is 5mm and 12mm
• Ball hole is 3mm
• CNC machined rugged aluminium construction
• Preinstalled with a stainless steel ball
• Fits 3mm threaded shaft (M3)
• Direct replacement for plastic rod end Z-S0398

What’s Included

• 10x M3 Short Straight Aluminium Rod Ends (Black)

Optional Colours

• M3 Short Straight Aluminium Rod Ends (Silver) (10) – Z-S1630
• M3 Short Straight Aluminium Rod Ends (Blue) (10) – Z-S1634

Notes & Suggested Compatibility

Suggested compatibility (quantities typically needed to replace stock rod ends):

• 6x single rod ends – Gelande 2 D110 Kit and RTR
• 6x single rod ends – Gelande 2 D90 Kit and RTR
• 6x single rod ends – Gelande 2 Cruiser Kit
• 4x single rod ends – Trail Finder 2 Kit and RTR
• 4x single rod ends – Trail Finder 2 Kit "SWB"
• 6x single rod ends – Beast 2 Kit
• 4x single rod ends – Killer Krawler 2
