RC4WD Narrow Stamped Steel Wheel Pin Mount 5-Lug for 1.55 Wheels RC4WD

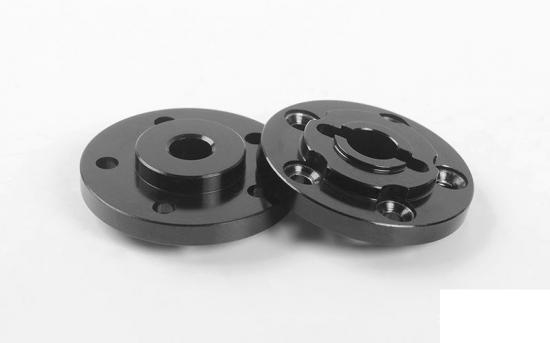

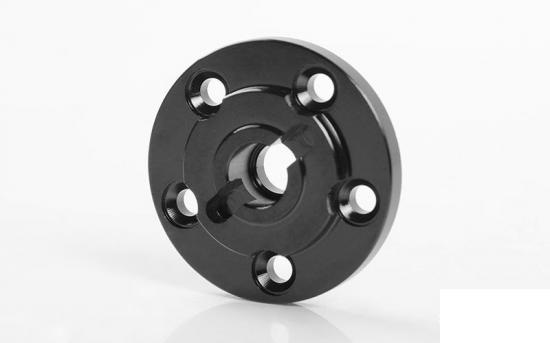

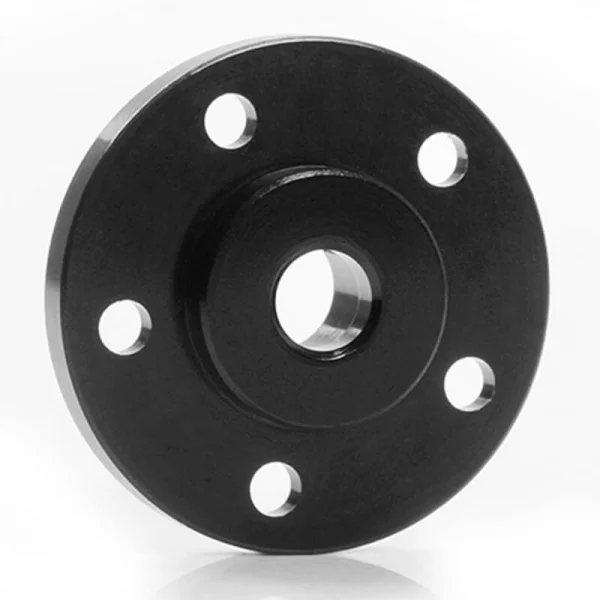

The RC4WD Z-S1939 Narrow Stamped Steel Wheel Pin Mount 5-Lug for 1.55" wheels provides a reduced track width and a clean scale look. CNC machined from billet aluminium with a black anodised finish, this hub set narrows the wheel offset by 5.8mm over the stock hub and includes the required M2 hardware.

Key Features

• CNC machined billet aluminium
• Black anodised finish
• 5-lug pin mount design for 1.55" wheels
• Narrows offset by 5.8mm over stock hub
• Lightweight: 2.5g each

Specifications

• Outer diameter: 0.86in / 22.0mm
• Centre hole OD: 0.16in / 4.2mm
• Width: 0.25in / 6.5mm
• Each weight: 0.09oz / 2.5g

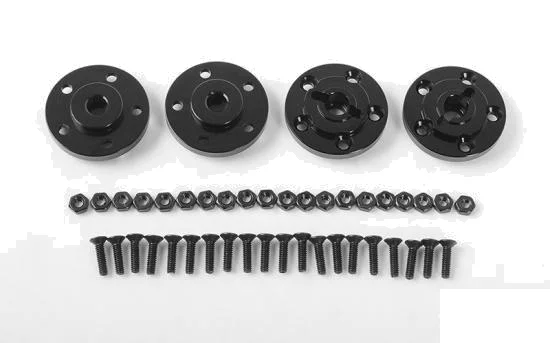

What’s Included

• 4x Wheel Hex Hub Brake Discs
• 20x M2 x 8mm steel flat head socket cap screws
• 20x Regular M2 black nuts

Suggested Compatibility

• 1.55" wheels: Z-W0260, Z-W0258, Z-W0262, Z-W0264, Z-W0281, Z-W0284, Z-W0285, Z-W0286

Replacement Hardware

• Steel Flat Head Socket Cap Screw M2 x 8mm (Z-S1259)
• Regular M2 Black Nuts (Z-S1144)

Notes

• Designed to narrow the offset of RC4WD steel wheels.

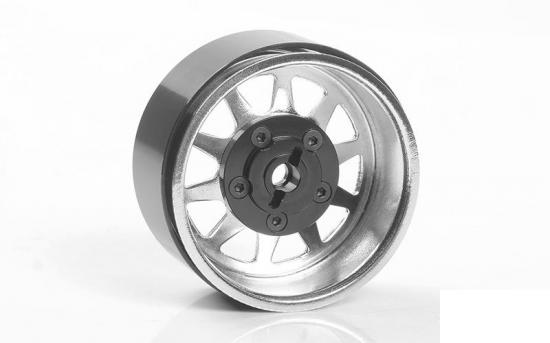

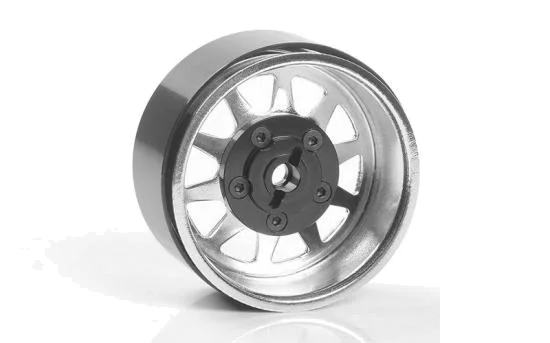

• Shown installed with OEM Stamped Steel 1.55" Beadlock Wheels (Chrome) (Z-W0264) for example; not included.
• Not suggested for Axial SCX10 and SCX10 II axles due to axle thread fitment.
• On Axial axles, a washer or spacer may be required due to thread depth.

Optional Parts

• Yota II Ultimate Scale Cast Axle (Center Rear) (Z-A0010)
• Yota Ultimate Scale Cast Axle (Front) (Z-A0058)
• Yota Ultimate Scale Cast Straight Axle (Rear) (Z-A0061)
• Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
• Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
• Yota II Ultimate Scale Cast Axle (Center Front) (Z-A0086)
