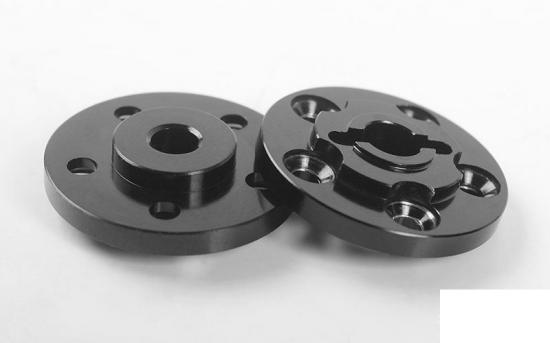

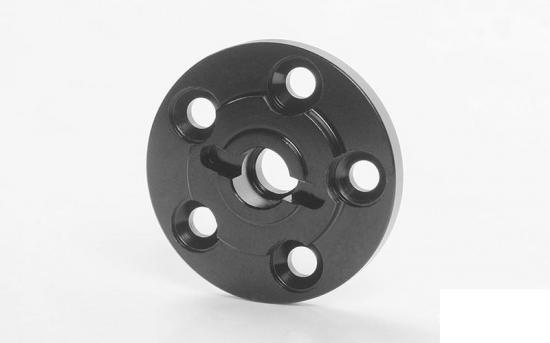

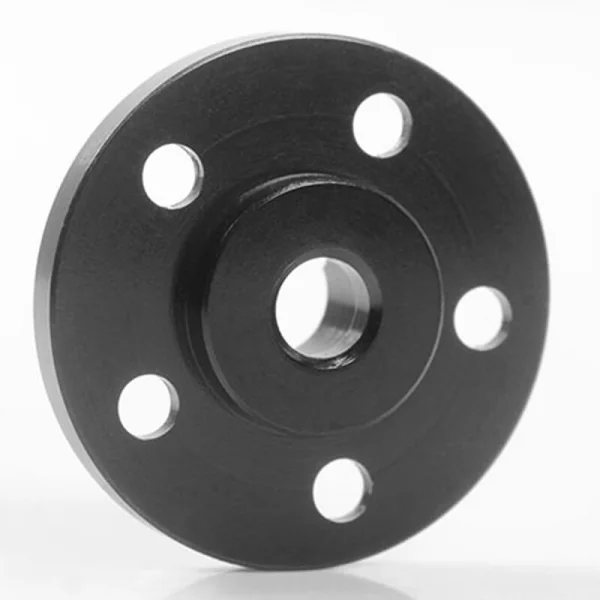

RC4WD Narrow Stamped Steel Wheel Pin Mount 5-Lug for 1.9 Wheels RC4WD

The RC4WD Narrow Stamped Steel Wheel Pin Mount 5-Lug for 1.9" Wheels (Z-S1941) is a CNC-machined billet aluminium hub set designed to tighten track width by approximately 1.8 mm compared with the stock wheel hub on RC4WD steel wheels. Finished in a durable black anodised coating, this lightweight set provides a clean, scale look with precise fitment.

Key Specifications

• CNC machined billet aluminium
• Black anodised finish
• Outside diameter: 23.0 mm
• Centre hole OD: 4.2 mm
• Width: 6.5 mm
• Each weight: 2.5 g

What’s Included

• 4x Wheel Hex Hub Brake Discs
• 20x M2.5 x 10 mm steel flat head socket cap screws
• 20x Regular M2.5 black nuts

Replacement Hardware

• M2.5 x 10 mm steel flat head socket cap screws
• Regular M2.5 black nuts (Z-S0303)

Optional Parts

• Yota II Ultimate Scale Cast Axle (Center Rear) (Z-A0010)
• Yota Ultimate Scale Cast Axle (Front) (Z-A0058)
• Yota Ultimate Scale Cast Straight Axle (Rear) (Z-A0061)
• Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
• Yota II Ultimate Scale Cast Axle (Rear) (Z-A0081)
• Yota II Ultimate Scale Cast Axle (Center Front) (Z-A0086)

Notes & Suggested Compatibility

• Suggested compatibility with RC4WD 1.9" steel wheels: Z-W0001, Z-W0127, Z-W0129, Z-W0242, Z-W0243, Z-W0244.
• Designed to narrow the offset of RC4WD steel wheels by about 1.8 mm over the stock hub.

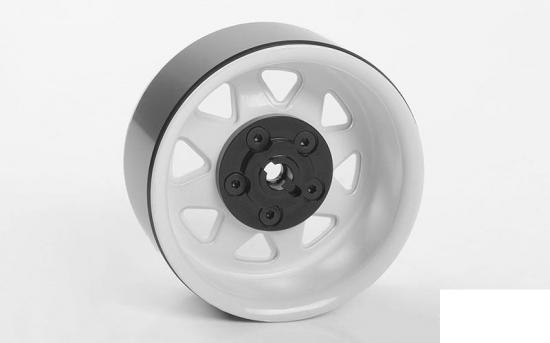

• Shown installed with 5 Lug Wagon 1.9" Steel Stamped Beadlock Wheels (White) (Z-W0127) for example only (not included).
• Not suggested for Axial SCX10 and SCX10 II axles due to axle thread fitment.
• Mounting on Axial axles may require a washer or spacer due to different thread depth.
