RC4WD O/D Transfer Case TF2 & Gelande II
Brand: RC4WD
Part No: Z-U0039
$110.74
RRP $116.57
Shadow Stock: Usually ships next day
Finance options available at checkout.
Fits These Models (6)
RC4WD Gelande II RTR - 2015 Land Rover Defender D90
RC4WD Gelande II RTR Truck w/Cruiser Body Set RC4WD
RC4WD Gelande II Truck Kit
RC4WD Gelande II Truck Kit - 2015 Land Rover Defender D90
RC4WD Gelande II Truck Kit With Cruiser Body Set 2025
RC4WD Gelande II Kit w/ 2015 Land Rover Defender D90 Hard Body Set RC4WD

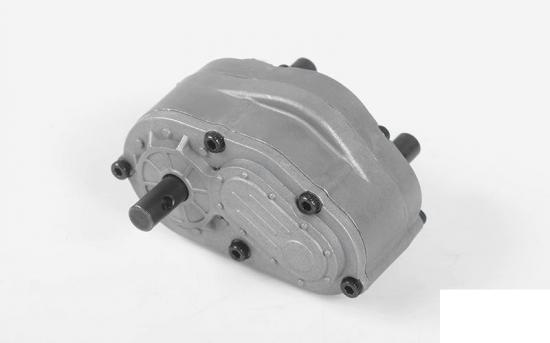

Description
The RC4WD Over/Under Drive Transfer Case (Z-U0039) gives you tunable front/rear drive ratios to sharpen steering and optimise traction on scale crawlers. Built with hardened .8 mod steel gears inside a durable cast casing, it shares the same mounting pattern as the RC4WD Hammer Transfer Case and uses robust 5.0mm output shafts.
Key Specifications
- 1.47/1 gearing
- .8 mod, hardened steel, wide gears
- Cast casing
- Same mounting as the Hammer Transfer Case
- Output shaft OD: 5.0mm
- Total weight: 176g

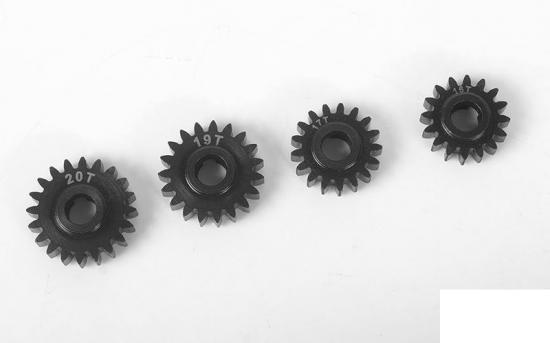

Gearing Options
To change the gear ratio, remove the cover on the side with the two shafts. The following combinations provide different front/rear drive characteristics:
- 15T/22T (stock): 1:1.47 — front axle goes same speed as rear
- 17T/19T: 1:1.27 — front axle rotates 27% faster than rear
- 16T/20T: 1:1.33 — front axle rotates 33% faster than rear
- 19T/17T: 1:1.42 — front axle rotates 42% faster than rear
- 20T/17T: 1:1.57 — front axle rotates 57% faster than rear
- 20T/16T: 1:1.67 — front axle rotates 67% faster than rear

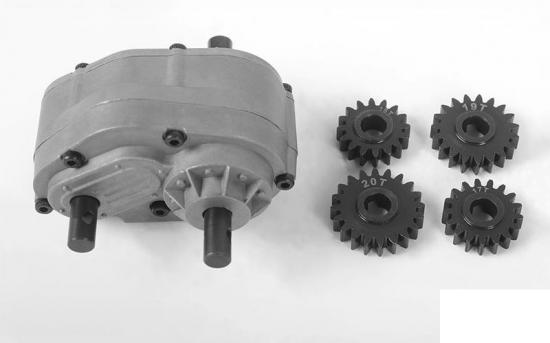

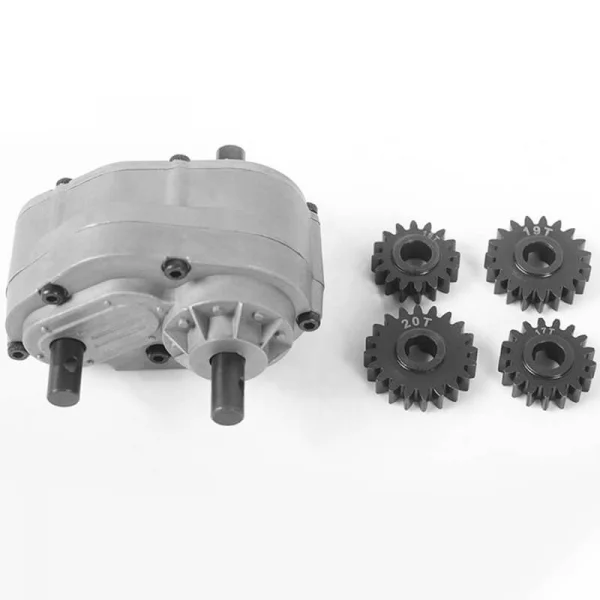

What’s Included
- 1x RC4WD Over/Under Drive Transfer Case
- 1x 16T Gear
- 1x 17T Gear
- 1x 19T Gear
- 1x 20T Gear
- 1x M3 x 6mm Steel Button Head Cap Screws (Black)
- 1x M3 x 10mm Steel Button Head Cap Screws (Black)
Replacement Hardware
- Steel Button Head Cap Screws M3 x 6mm (Z-S0651)
- Steel Button Head Cap Screws M3 x 10mm (Z-S0653)
Suggested Compatibility
- RC4WD Trail Finder 2 "LWB" RTR w/Mojave II Four Door Body Set (Z-RTR0030)
- RC4WD Trail Finder 2 Truck Kit "LWB" w/Mojave II Four Door Body Set (Z-K0058)
- RC4WD Trail Finder 2 Truck Kit "LWB" 1/10 Scale Long Wheel Base Chassis Kit (Z-K0059)
- RC4WD Gelande II RTR Truck Kit w/Defender D90 Body Set (Z-RTR0031)
- RC4WD Gelande II Truck Kit w/Defender D90 Body Set (Z-K0001)
- RC4WD Gelande II "LWB" RTR w/D110 Body Set (Z-RTR0032)
- RC4WD Gelande II D110 Truck Kit With Hard Body (Z-K0047)
For Gelande II setups, the O/D TC Lower 4 Link Mount with Battery Tray (Z-S1899) may be required.
Secure Payments
Secured by Stripe
RC4WD Over/Underdrive Transfer Case (O/D TC) for TF2 and Gelande II RC4WD Manuals & Guides
Specifications
RC4WD Over/Under Drive Transfer Case
Specifications:
- 1.47 / 1 Gearing
- .8 Mod Gears
- Hardened Steel Gears
- Cast Casing
- Wide Gears
- Has same mounting as our popular Hammer Transfer Case
- Output Shaft OD: 0.19in / 5.0mm
- Total Weight: 6.21oz / 176g

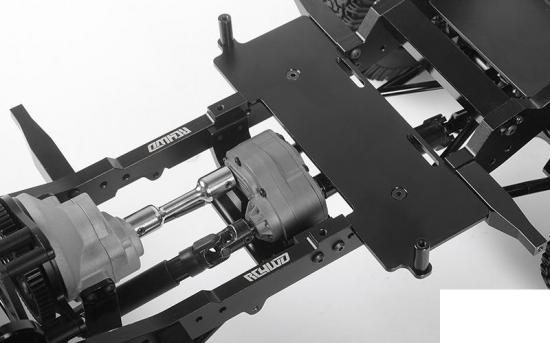

Shown installed on RC4WD Gelande II RTR Truck Kit w/D90 Body Set (Z-RTR0031) with Over/Under Drive T-Case Lower 4 Link Mount w/ Battery Tray for Gelande II (Z-S1899) for example (Not Included)

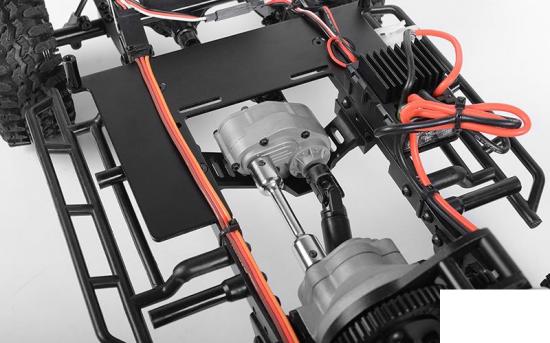

Shown installed on RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler Body Set (Z-RTR0034) for example (Not Included)

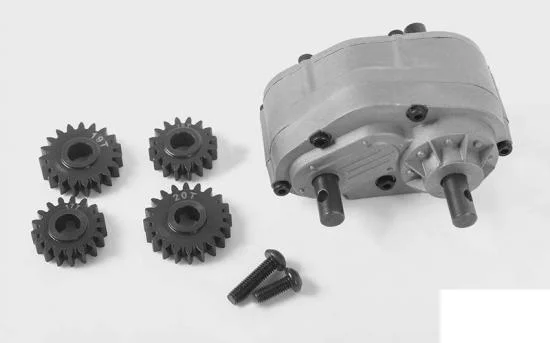

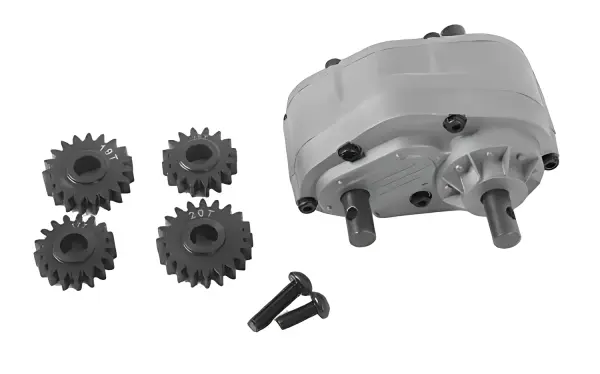

What's Included:
- 1x RC4WD Over/Under Drive Transfer Case
- 1x 16T Gear
- 1x 17T Gear
- 1x 19T Gear
- 1x 20T Gear
- 1x M3 x 6mm Steel Button Head Cap Screws (Black)
- 1x M3 x 10mm Steel Button Head Cap Screws (Black)
Replacement Hardware:
- Steel Button Head Cap Screws M3 x 6mm (Z-S0651)
- Steel Button Head Cap Screws M3 x 10mm (Z-S0653)
Notes:
- Fits RC4WD Trail Finder 2 "LWB" RTR w/Mojave II Four Door Body Set (Z-RTR0030)
- Fits RC4WD Gelande II RTR Truck Kit w/Defender D90 Body Set (Z-RTR0031) (Z-S1899 is required)
- Fits RC4WD Gelande II Truck Kit w/Defender D90 Body Set (Z-K0001) (Z-S1899 is required)
- Fits RC4WD Gelande II "LWB" RTR w/D110 Body Set (Z-RTR0032) (Z-S1899 is required)
- Fits RC4WD Gelande II D110 Truck Kit With Hard Body (Z-K0047) (Z-S1899 is required)
- Fits RC4WD Trail Finder 2 Truck Kit "LWB" w/ Mojave II Four Door Body Set (Z-K0058)
- Fits RC4WD Trail Finder 2 Truck Kit "LWB" 1/10 Scale Long Wheel Base Chassis Kit (Z-K0059)
- If installed on our Gelande II truck, (O/D TC) Lower 4 Link Mount w/ Battery Tray for Gelande II (Z-S1899) is required.
- 15T/22T (Stock) : 1 : 1.47 Gear Ratio - Front axle goes same speed as rear
- To change the gear ratio remove the cover on the side with the two shafts.
- The following are the gear combinations of Rear Output to Front Output:
- 17T / 19T combo = 1:1.27 front axle will rotate 27% faster than rear
- 16T / 20T combo = 1:1.33 front axle will rotate 33% faster than rear
- 19T / 17T combo = 1:1.42 front axle will rotate 42% faster than rear
- 20T / 17T combo = 1:1.57 front axle will rotate 57% faster than rear
- 20T / 16T combo = 1:1.67 front axle will rotate 67% faster than rear
Key Info:
- Brand: RC4WD
- Part No: Z-U0039
- Barcode: 639302593523
