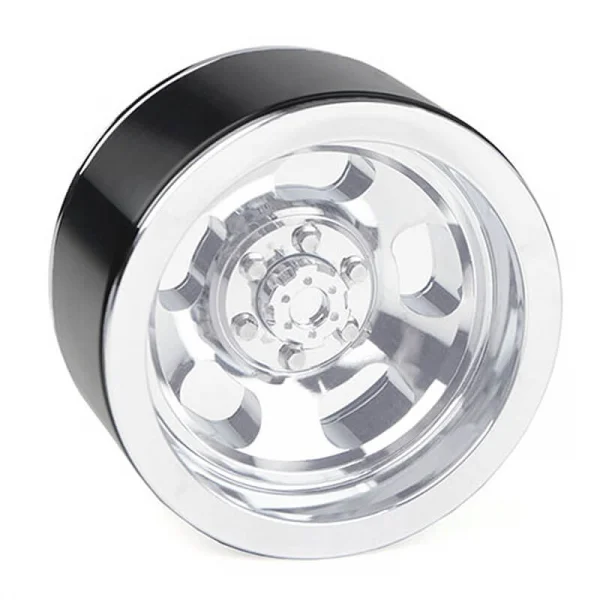

RC4WD RC4WD Deep Dish Slot Mag 2.2 Beadlock Wheels

The RC4WD Deep Dish Slot Mag 2.2" Beadlock Wheels (Z-W0077) combine CNC-machined billet aluminium with a chrome plated finish for a classic deep-dish look. Designed for standard 12mm hex hubs, this set delivers secure beadlock performance and precise machining.

Supplied as a full set of four wheels, plus scale hardware and tools, including the RC4WD 12mm Wheel Hex Conversion for Traxxas TRX-4, to support suggested compatibility where required.

Features

• CNC Machined
• Billet Aluminium
• Chrome Plated Finish
• Fits Standard 12mm Hex

Specifications

• Wheel Size: 2.2"
• OD: 2.48in / 63.0mm
• Width: 1.26in / 32.0mm
• Center Hole OD: 0.20in / 5.2mm
• Negative Offset: 0.47in / 12.0mm
• Each Wheel Weighs: 4.78oz / 135.6g

What's Included

• 4 x RC4WD Deep Dish Slot Mag 2.2" Beadlock Wheels
• 4 x Covers with Nylock Nuts M4 (Silver) (Z-S1265)
• 1 x Miniature Scale Hex Bolt Tool for M2.5 & M3 Scale Bolts (2.5mm Hex) (Z-S0635)
• 4 x M3 Driveshaft Screw Pins (Z-S0804)
• 4 x RC4WD 12mm Wheel Hex Conversion for Traxxas TRX-4 (Z-S1844)
• 1 x Scale Front Locking Hub Installation Tool (Z-S0343)

Notes

• For suggested compatibility with Traxxas TRX-4, installation may require the RC4WD 12mm Wheel Hex Conversion (Z-S1844).
