RC4WD Rock Krawler RRD Emulsion Scale Dual Spring Shocks (100mm)

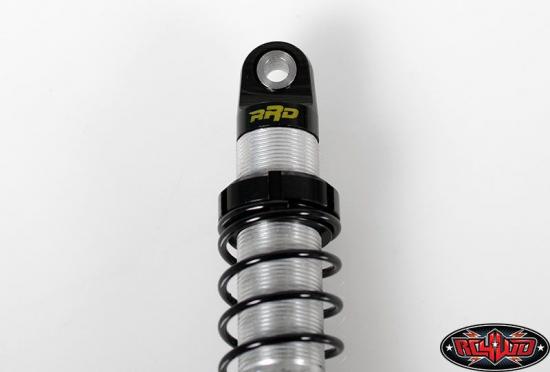

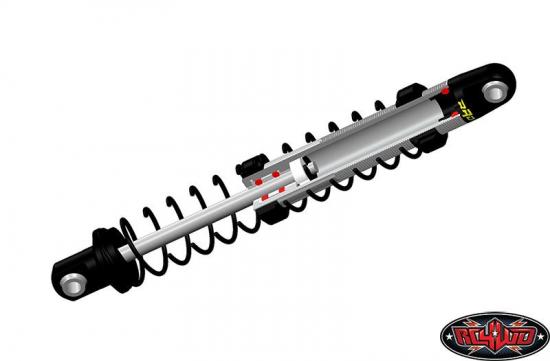

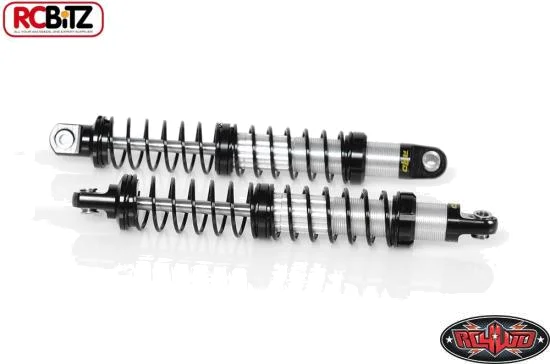

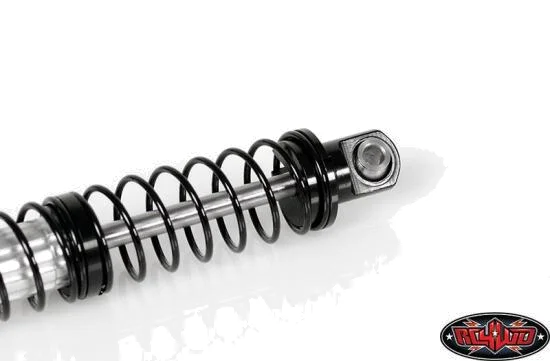

The RC4WD Rock Krawler RRD Emulsion Scale Dual Spring Shocks (100mm) deliver smooth, realistic suspension performance for scale crawlers. Precision CNC-machined from billet aluminium with a smooth black anodised finish and Rock Krawler branding, these 100mm emulsion shocks feature a dual-spring design for refined small-bump compliance and stable support. Part number Z-D0050 includes two shocks and a decal sheet.

Specifications

• CNC Machined
• Billet Aluminum
• Smooth Black Anodized
• Rock Krawler Logo on Top
• Dual Spring Design
• Hole to Hole (Compressed): 2.74in / 69.7mm
• Hole to Hole (Uncompressed): 3.93in / 100mm
• Overall Length: 4.29in / 109mm
• Travel Length: 1.18in / 30.2mm
• Shock Body OD: 0.39in / 10mm
• Spring Body OD: 0.57in / 14.5mm
• Shaft Diameter: 0.14in / 3.5mm
• Each Weight: 0.7oz / 20g

What’s Included

• 2x RC4WD Rock Krawler RRD Emulsion Scale Dual Spring Shocks (100mm)
• 1x Rock Krawler Decal Sheet

Notes

• Apply blue (medium) thread lock to the bottom shock shaft rod end before installing to help keep it secure.

Suggested Compatibility

• Traxxas TRX-4 when used with 2mm and 3mm Black Spacers with M3 holes (Z-S0600, Z-S0806). Example installation shown; spacers not included.

Replacement Parts

• RC4WD Shock Cap for Top of Rock Krawler RRD Shocks (Z-S1182)
• Lower, Center and Threaded Spring Retainer for Rock Krawler RRD Shocks (Z-S1184)
• Shock Ball End for Bottom of Rock Krawler RRD Shock (Z-S1186)
• RC4WD 100mm Rock Krawler Shock Spring Assortment (Z-S1187)
• Replacement Shock Shafts for King Shocks (100mm) (Z-S0784)
• Rebuild Kit for Scale King, ARB & Superlift Shocks (Z-S0788)
