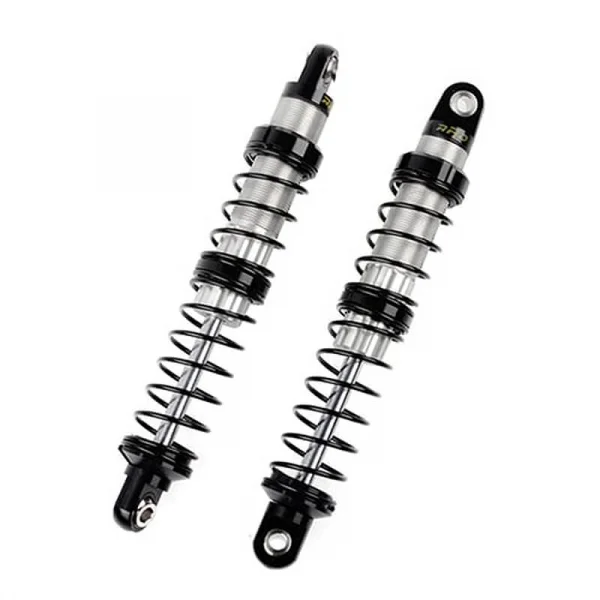

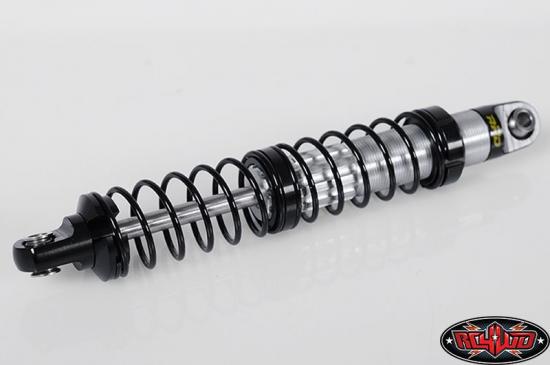

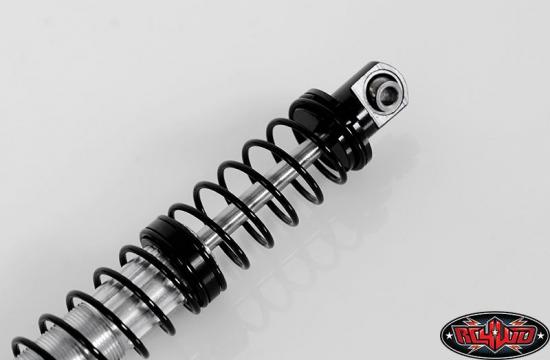

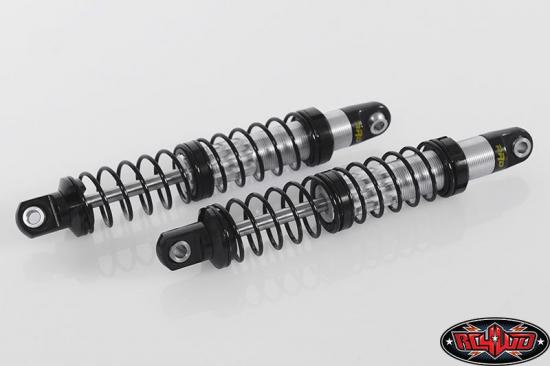

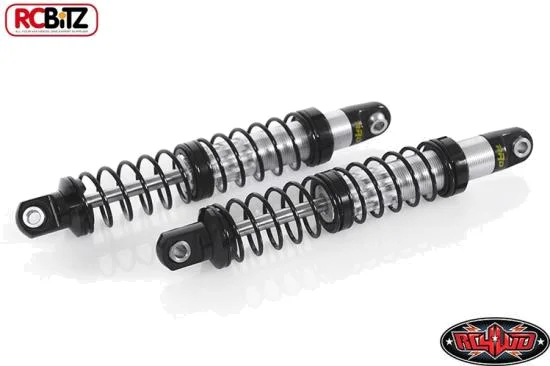

RC4WD Rock Krawler RRD Emulsion Scale Dual Spring Shocks (90mm)

Upgrade your scale crawler’s suspension with the RC4WD Rock Krawler RRD Emulsion Scale Dual Spring Shocks (90mm), part number Z-D0052. These CNC-machined, billet aluminium shocks feature a smooth black anodised finish and a dual spring design for refined damping and tuning potential.

Features & Specifications

• CNC machined
• Billet aluminium
• Smooth black anodised
• Rock Krawler logo on top

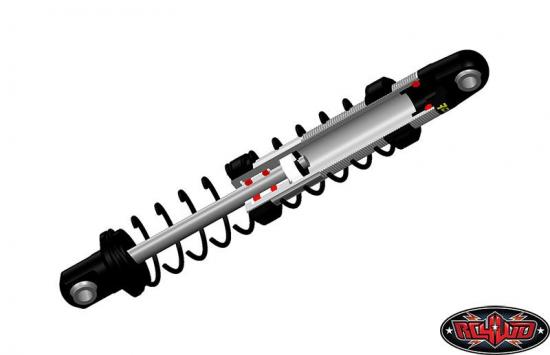

• Dual spring design
• Hole to hole (compressed): 2.55in / 64.8mm
• Hole to hole (uncompressed): 3.54in / 90mm
• Overall length: 3.90in / 99mm
• Travel length: 1.02in / 26mm
• Shock body OD: 0.39in / 10mm
• Spring body OD: 0.57in / 14.5mm
• Shaft diameter: 0.14in / 3.5mm
• Each weight: 0.65oz / 19g

What’s Included

• 2x RC4WD Rock Krawler RRD Emulsion Scale Dual Spring Shocks (90mm)
• 1x Rock Krawler decal sheet

Replacement Parts

• Shock Cap for Top of Rock Krawler RRD Shocks (Z-S1182)
• Lower, Center and Threaded Spring Retainer for Rock Krawler RRD Shocks (Z-S1184)
• Shock Ball End for Bottom of Rock Krawler RRD Shock (Z-S1186)
• Replacement Shock Shafts for King Shocks (90mm) (Z-S0785)
• Rebuild Kit for Scale King, ARB & Superlift Shocks (Z-S0788)

Optional Parts

• RC4WD 90mm Rock Krawler Shock Spring Assortment (Z-S1189)

Notes & Suggested Compatibility

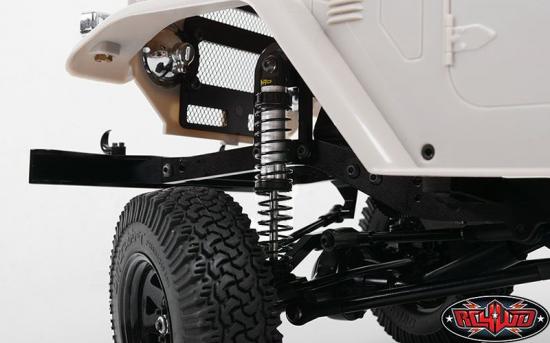

• Shown installed with RC4WD Gelande II Truck Kit w/Cruiser Body Set (Z-K0051) for example (not included).
• Shown installed on Traxxas TRX-4 with 2mm Black Spacer (Z-S0600) and 3mm Black Spacer (Z-S0806) for example (not included).
• Suggested compatibility: Gmade Sawback.
• Suggested compatibility: Traxxas Rustler front axle (requires Steel Button Head Cap Screws M3 x 12mm (10) (Z-S0654)).
• Suggested compatibility: Traxxas TRX-4 (requires both 2mm (Z-S0600) and 3mm (Z-S0806) Black Spacers with M3 holes).
• Suggested compatibility: SCX10 II (requires a 3mm spacer on the top mounting point (Z-S0806)).
• Use blue (medium) thread lock on the bottom shock shaft rod end before installing.
