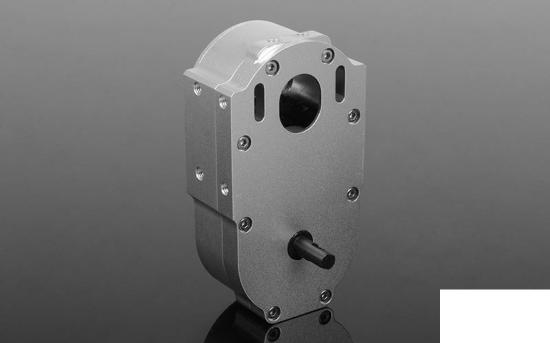

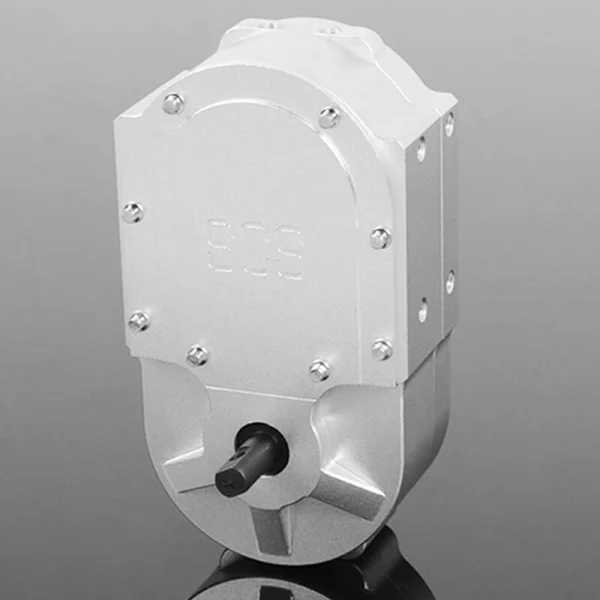

RC4WD SCS Gearbox Monster Drop Transmission (Z-U0038)
Brand: RC4WD
Part No: Z-U0038
Out Of Stock
Request Stock NotificationFinance options available at checkout.
Description
Officially licensed by SCS Gearbox, the RC4WD SCS Gearbox Monster Drop Transmission (Z-U0038) is a CNC-machined billet aluminium unit with a 9.1:1 internal ratio and 5mm output shafts. Compact and robust, it delivers scale looks with precision manufacturing and is available through RC4WD and authorised dealers.
Key Specifications
- CNC machined
- Billet aluminium
- Body Width: 1.65in / 41.9mm
- Body Length: 2.99in / 76.1mm
- Body Height: 2.36in / 60mm
- Output Shaft Length: 0.47in / 12.0mm
- Output Shaft OD: 0.19in / 5mm
- Gear Ratio: 9.1:1
- Weight: 4.69oz / 132.9g
What’s Included
- 1x RC4WD SCS Gearbox Monster Drop Transmission
- 1x Miniature Scale Hex Bolt Tool (M2 Hex) (Z-S0626)
- 1x 13 Tooth 32 Pitch Steel Pinion Gear (Black)
- 1x SCS Decal Sheet
Optional Parts
- 13 Tooth 32 Pitch Steel Pinion Gear (Z-G0020)
- 12t 32p Hardened Steel Pinion Gear (Z-G0065)
- 14t 32p Hardened Steel Pinion Gear (Z-S0430)
- 15t 32p Hardened Steel Pinion Gear (Z-G0014)
Notes
- Do not use a pinion larger than 17t 32p; using a larger pinion may damage the interior of the case.
- RC4WD recommends 32p gears for this transmission; the pitch of other brands cannot be guaranteed and may damage the spur gear.
Downloads
- Instruction manual: available to download
- Mounting template: available to download
Secured by Stripe
RC4WD SCS Gearbox Monster Drop Transmission RC4WD Manuals & Guides
Specifications
RC4WD SCS Gearbox Monster Drop Transmission
These are the all new Licensed SCS Gearbox Monster Drop Transmissions. These have been Officially Licensed by the SCS Gearbox company and are only available from RC4WD and our Dealers.
Specifications:
- CNC Machined
- Billet Aluminum
- Body Width: 1.65in / 41.9mm
- Body Length: 2.99in / 76.1mm
- Body Height: 2.36in / 60mm
- Output Shaft Length: 0.47in / 12.0mm
- Output Shaft OD: 0.19in / 5mm
- Gear Ratio: 9.1:1
- Weight: 4.69oz / 132.9g
What's Included:
- 1x RC4WD SCS Gearbox Monster Drop Transmission
- 1x Miniature Scale Hex Bolt Tool (M2 Hex) (Z-S0626)
- 1x 13 Tooth 32 Pitch Steel Pinion Gear (Black)
- 1x SCS Decal Sheet
Optional Parts:
- 13 Tooth 32 Pitch Steel Pinion Gear (Z-G0020)
- 12t 32p Hardened Steel Pinion Gear (Z-G0065)
- 14t 32p Hardened Steel Pinion Gear (Z-S0430)
- 15t 32p Hardened Steel Pinion Gear (Z-G0014)
Notes:
- Do not use a pinion larger than 17t 32p. A larger pinion me result in damage to the interior of the case.
- We recommend using RC4WD 32p gears for this transmission. We cannot guarantee the pitch of other brands' gears which may cause damage to the spur gear.
Instruction Manual:
- Click here to download
Mounting Template:
- Click here to download
SCS Gearbox is a registered trademark of the SCS Gearbox company. The SCS Gearbox logo is property of SCS Gearbox and used under license to RC4WD.
Key Info:
- Brand: RC4WD
- Part No: Z-U0038
- Barcode: 639302592960
