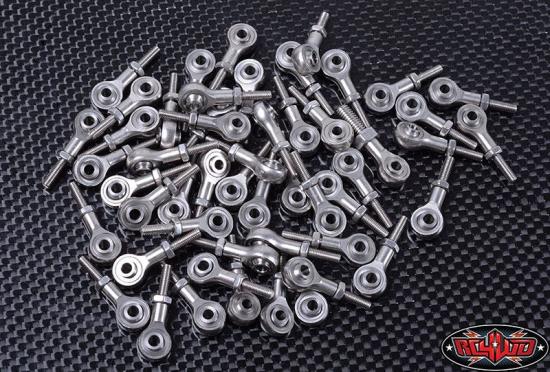

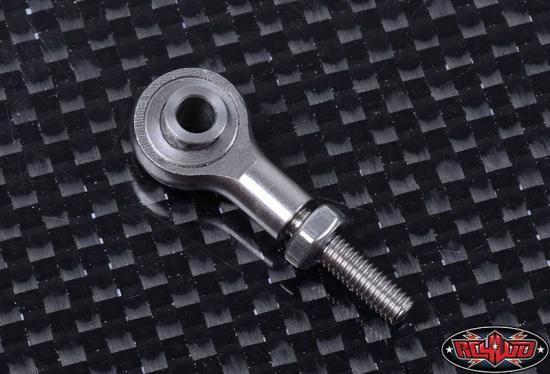

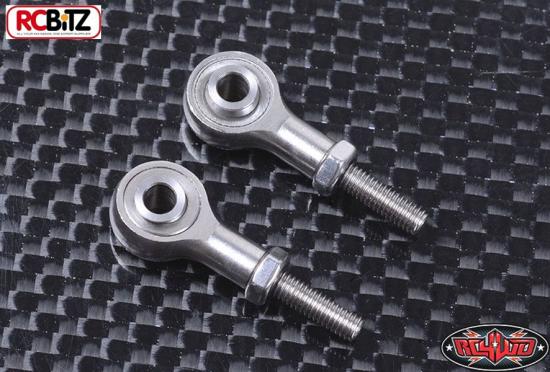

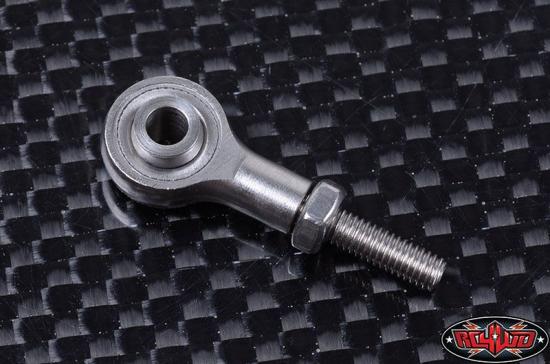

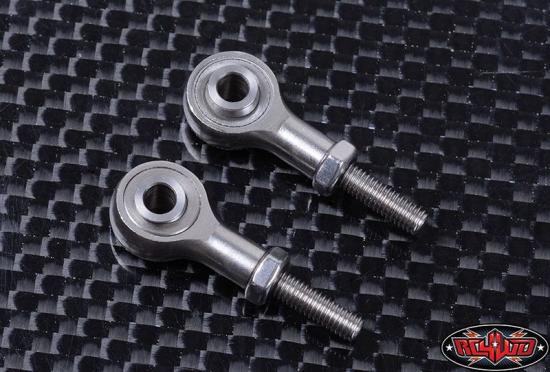

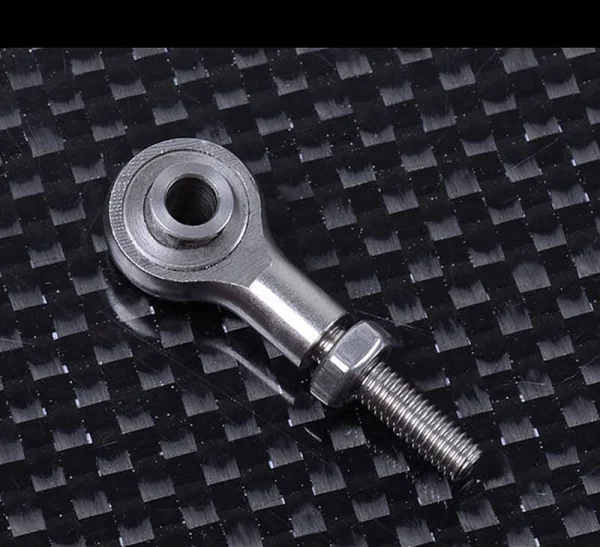

RC4WD Steely M3 Rod End (Heim Joint) (10) Z-S1446
Brand: RC4WD
Part No: Z-S1446
Out Of Stock
Request Stock NotificationFinance options available at checkout.
Description
The RC4WD Steely M3 Rod End (Heim Joint) delivers a compact, scale look with robust construction for reliable linkage performance. Each rod end is CNC machined from industrial-grade hard steel and fitted with a pre-installed stainless steel ball for smooth articulation and long-term durability. Supplied as a pack of ten, it’s a tidy solution for consistent M3 linkage builds and maintenance. RC4WD part number Z-S1446.
Key Specifications
- CNC machined industrial-grade hard steel
- Pre-installed stainless steel ball
- Ball hole ID: 0.11in / 3mm
- Ball width: 0.25in / 6.4mm
- Total length: 1.09in / 27.8mm
- Centre hole to end of the thread: 0.92in / 23.4mm
- Shaft OD: 0.17in / 4.5mm
- Head OD: 0.38in / 9.8mm
- Weight: 0.14oz / 4g
What’s Included
- 10x Steely M3 Rod End (Heim Joint)
Secured by Stripe
RC4WD Steely M3 Rod End (Heim Joint) (10) Manuals & Guides
Specifications
Steely rod end is our 3rd generation full metal rod end. Not only it is extremly scale, it is also compact in size. Each Steely is super durable and machined out of billet stainless steel.
Size comparison with our original alum Rod End:
Specifications:
- CNC Machined Industrial Grade Hard Steel
- Pre-Installed with a Stainless Steel Ball
- Ball Hole ID: 0.11in / 3mm
- Ball Width: 0.25in / 6.4mm
- Total Length: 1.09in / 27.8mm
- Center hole to end of the Thread: 0.92in / 23.4mm
- Shaft OD: 0.17in / 4.5mm
- Head OD: 0.38in / 9.8mm
- Weight: 0.14oz / 4g
What's Included:
- 10x Steely M3 Rod End (Heim Joint)
Key Info:
- Brand: RC4WD
- Part No: Z-S1446
- Barcode: 812115025751
