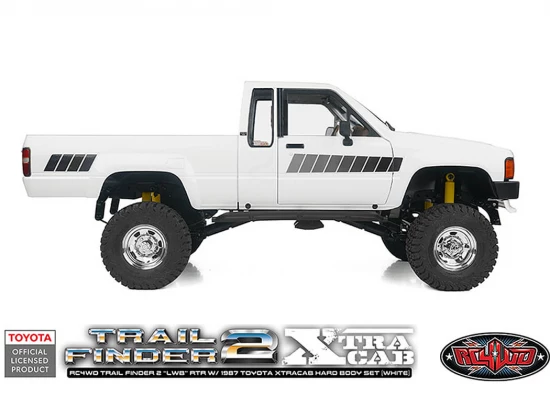

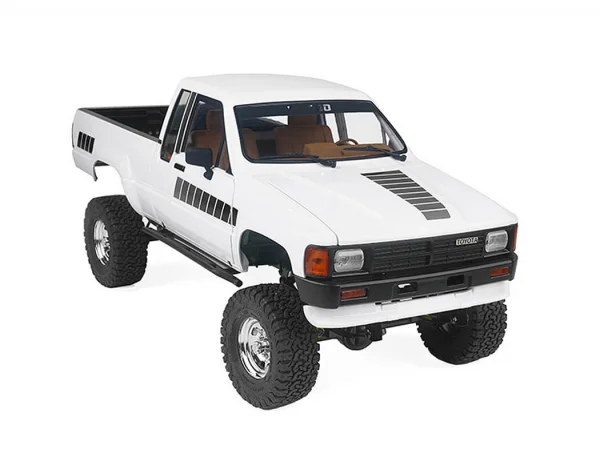

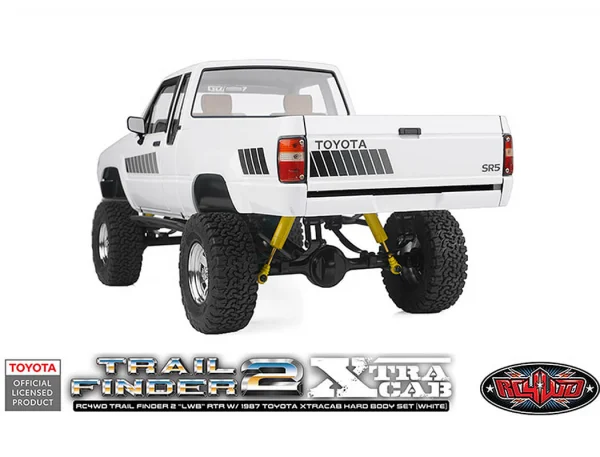

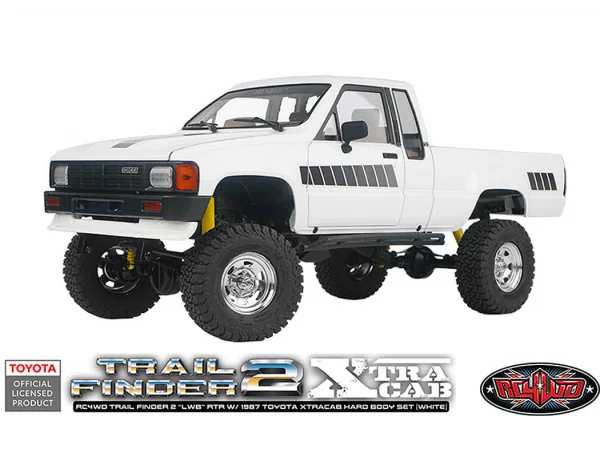

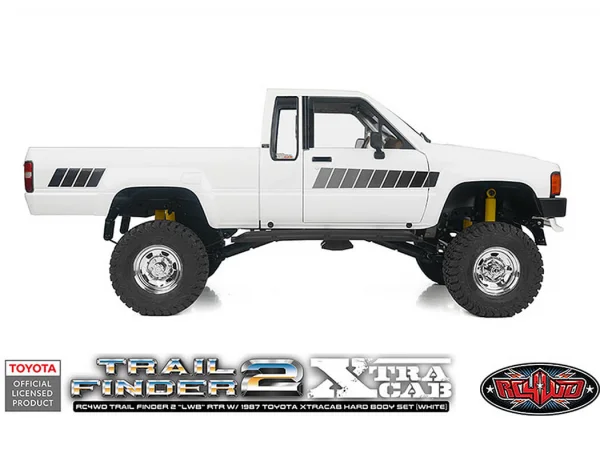

RC4WD Trailfinder 2 LWB RTR With 1987 Toyota Xtracab Hard Body

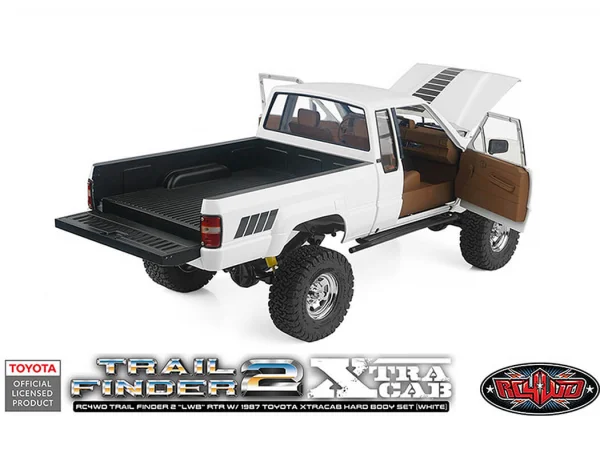

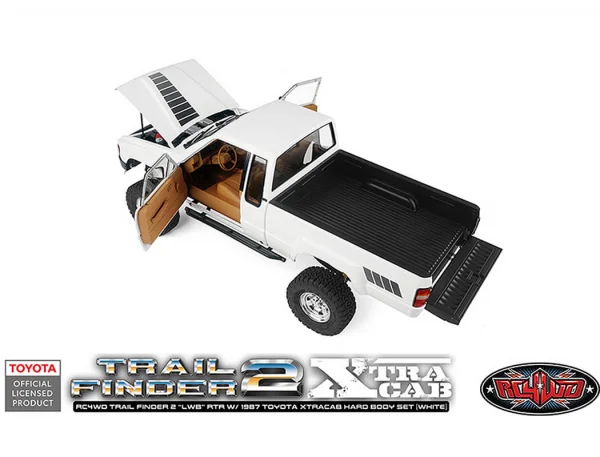

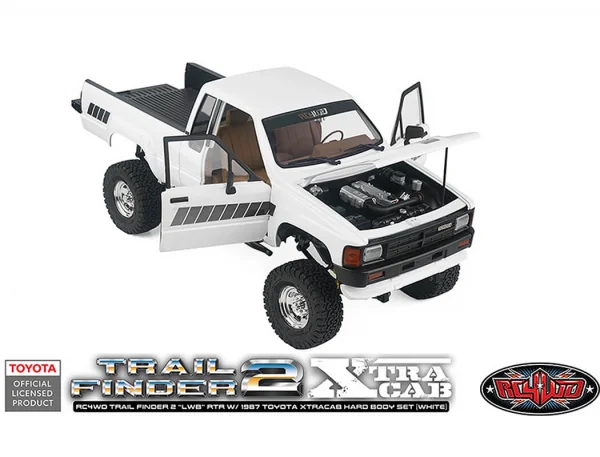

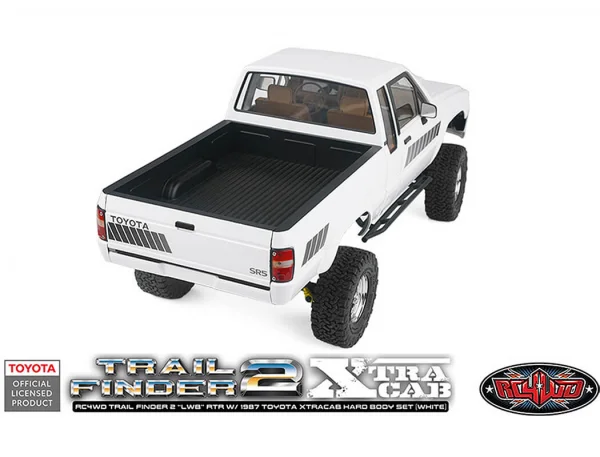

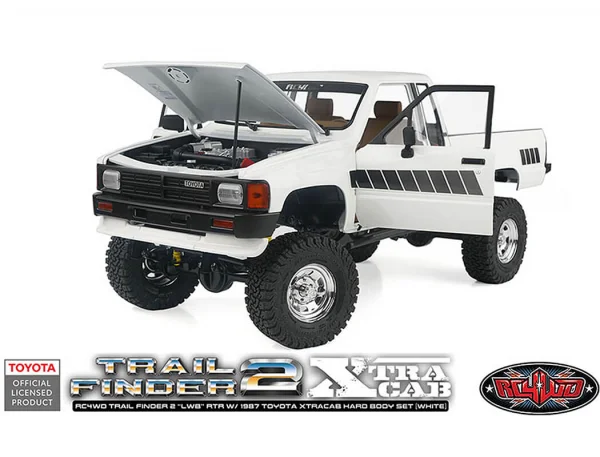

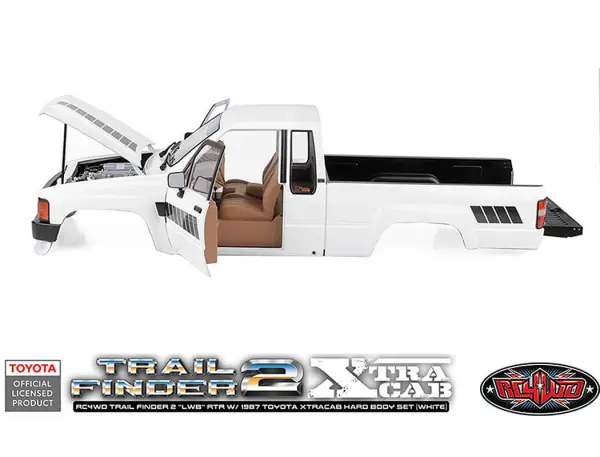

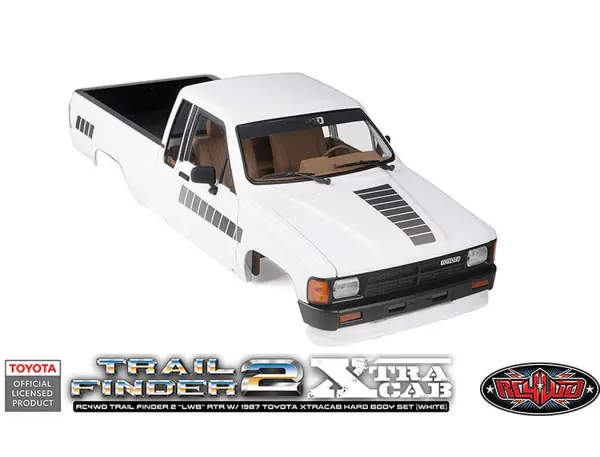

The RC4WD Trail Finder 2 "LWB" RTR with 1987 Toyota Xtracab Hard Body (part number Z-RTR0064) delivers an authentic 80s Toyota look with serious trail capability. The glossy white hard body features a detailed Yota 22RE engine bay, painted interior, an exclusive decal sheet and a working light kit for standout scale realism.

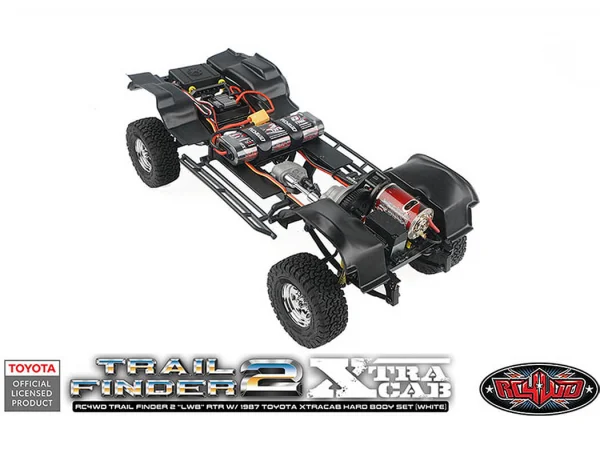

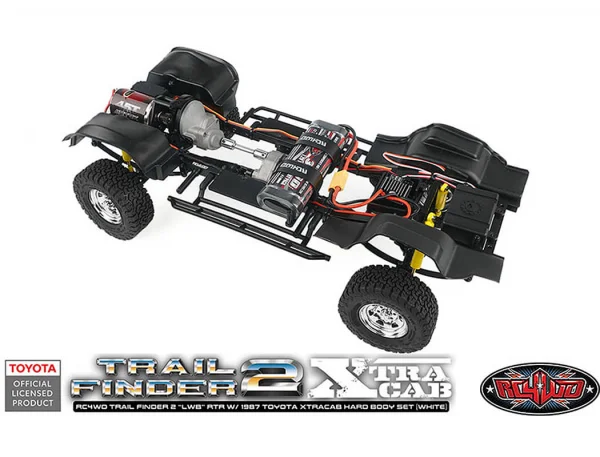

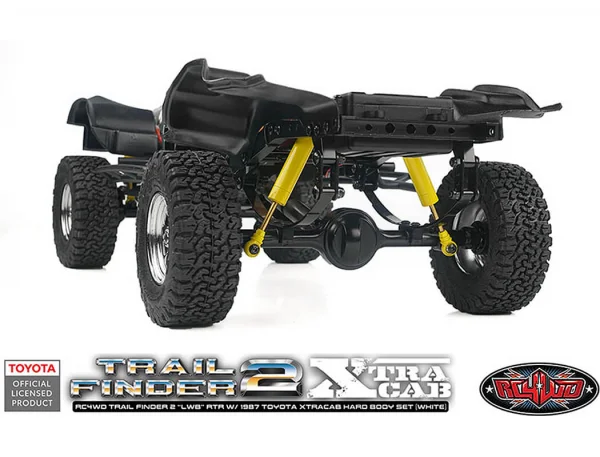

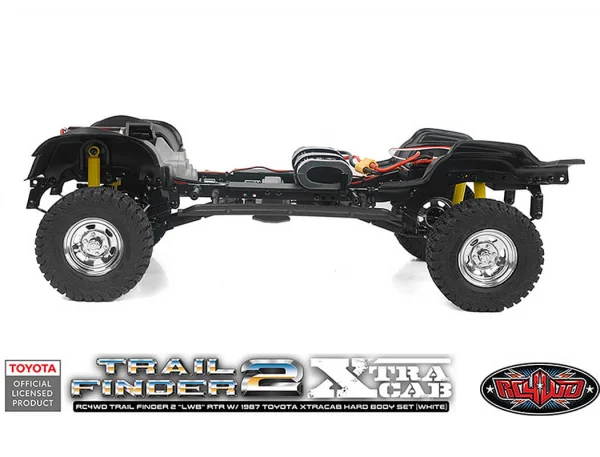

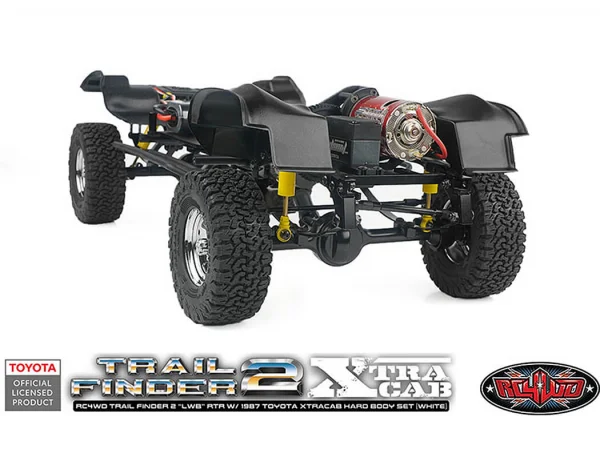

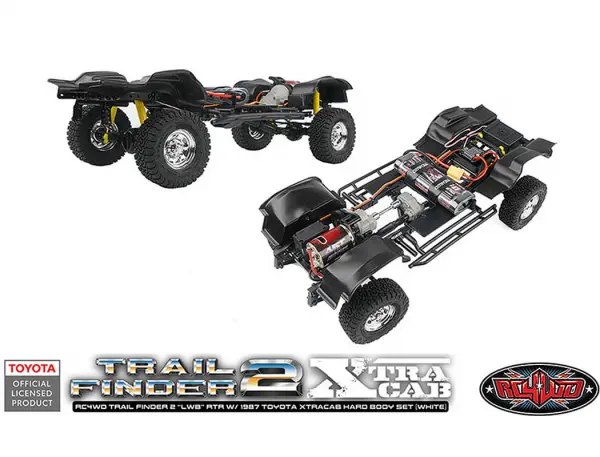

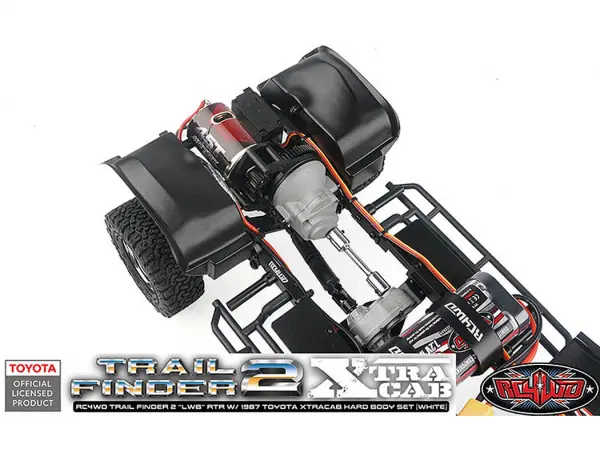

Beneath the body, the TF2 LWB chassis combines a realistic billet aluminium ladder frame with the R3 single speed transmission and a centre-mounted Hammer transfer case. Yota II Ultimate Scale cast axles with XVDs, RC4WD Ultimate Scale shocks and inner fenders complete a capable and durable platform. Power comes from a 540 45T crawler motor driven by the Outcry III waterproof ESC, while stamped steel 1.7" beadlock SR5 wheels in chrome are wrapped with RC4WD BFGoodrich All Terrain KO2 1.7" scale tyres.

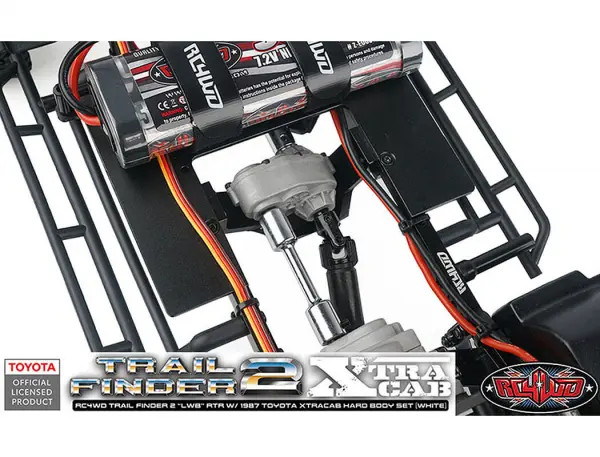

Electronics and essentials are included for convenience: XR3 3-channel 2.4GHz radio system, Twister high-torque metal gear digital servo, a 6-cell 3000mAh NiMH battery and a NiMH peak charger. Marlin Crawler side sliders add protection and period-correct style, rounding out a retro-inspired trail truck that’s ready for scale adventures.

Features

• 1987 Toyota Xtracab Body Set in White
• Realistic billet aluminium ladder frame chassis
• R3 Single Speed Transmission
• Center mounted realistic Hammer Transfer Case
• 540 Crawler Brushed Motor 45T
• Outcry III Waterproof ESC
• 6-cell 3000mAh NiMH battery pack
• Yota II Ultimate Scale cast axles (XVD)
• Twister high torque metal gear digital servo
• RC4WD Ultimate Scale Shocks (70/90mm) (Yellow)
• Stamped steel 1.7" Beadlock SR5 wheels (Chrome)
• RC4WD BFGoodrich All Terrain KO2 1.7" scale tyres
• Yota 22RE engine bay
• RC4WD Marlin Crawler side plastic sliders
• RC4WD inner fender set for Toyota 4Runner and Xtracab
• NiMH peak battery charger
• XR3 3-channel 2.4GHz transmitter/receiver radio

Key Specifications

• Hammer Transfer Case Ratio: 1.47:1; wide 0.8 Mod steel gears; 8 bearings; cast casing; hardened gears
• R3 Transmission: Pinion/Spur 14/64 = 4.57:1; internal ratio 1.78:1; wide steel 0.8 Mod gears; Delrin spur; slipper clutch
• Yota II Axles: Ratio 15/40 = 2.67:1; width at hex (4mm TF2 hexes): 178.2mm

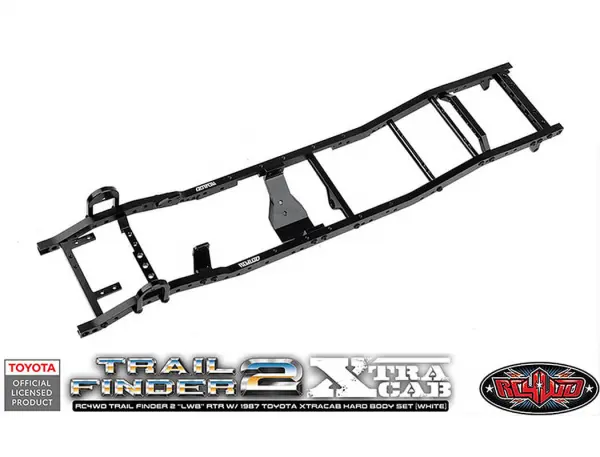

• Chassis: billet aluminium construction with adjustable shock hoops
• Drive shafts: high quality plastic material; durable high steel yokes
• Wheels: stamped steel 1.7" Beadlock SR5 (Chrome); 12mm hex; width 23.0mm; OD 47.0mm
• TF2 Truck Dimensions: wheelbase 314.2mm; width 206.0mm; height 225.5mm; ground clearance 58.0mm
• Final Drive Ratio: 31.93:1

What's Included

• 1 x RC4WD Trail Finder 2 "LWB" RTR w/ 1987 Toyota Xtracab Hard Body Set (White)

Notes

• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require thread lock.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.
