RC4WD Turbine 1.9 Aluminium Beadlock Wheels Z-W0097

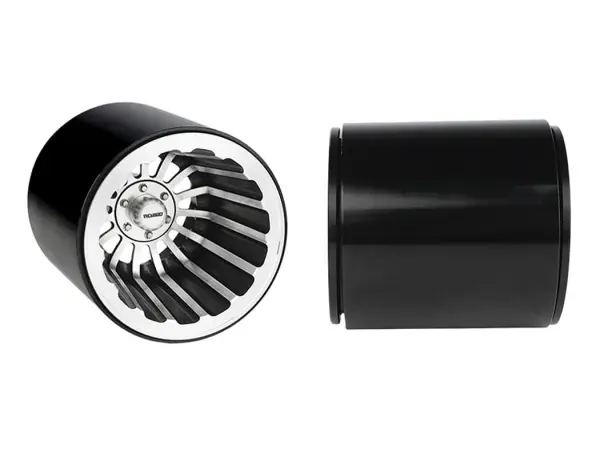

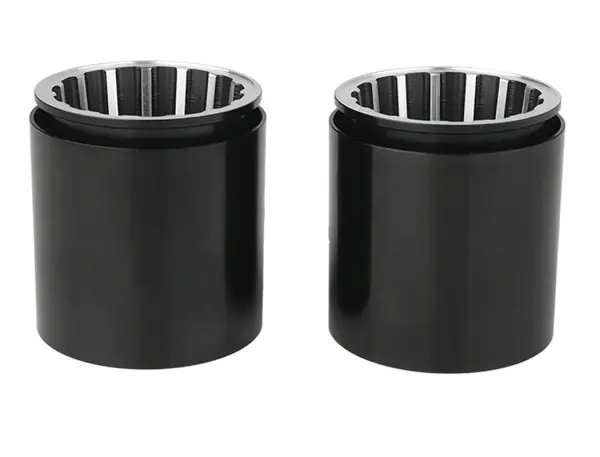

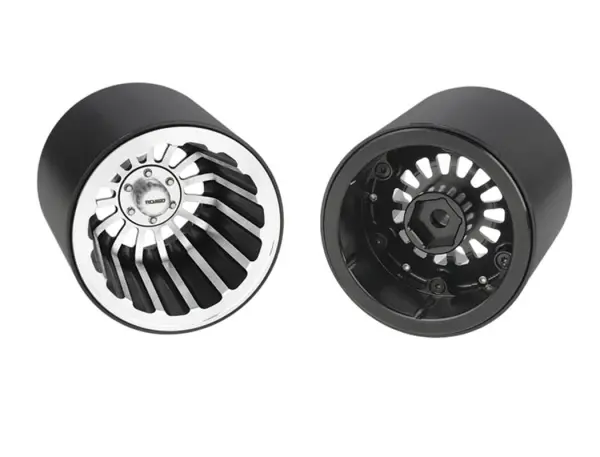

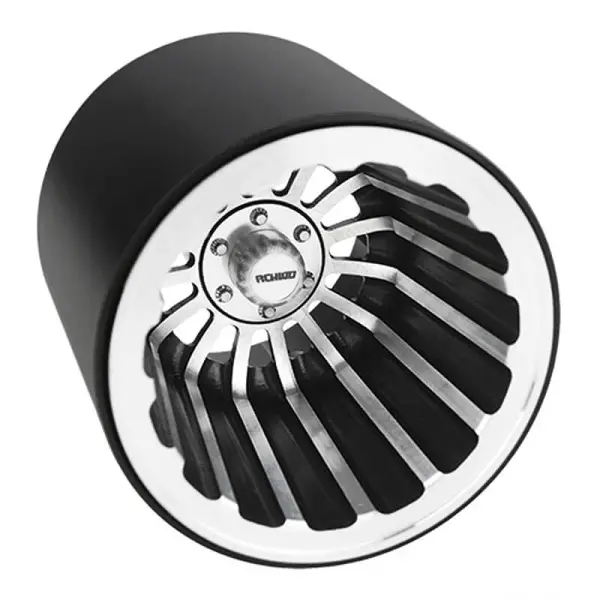

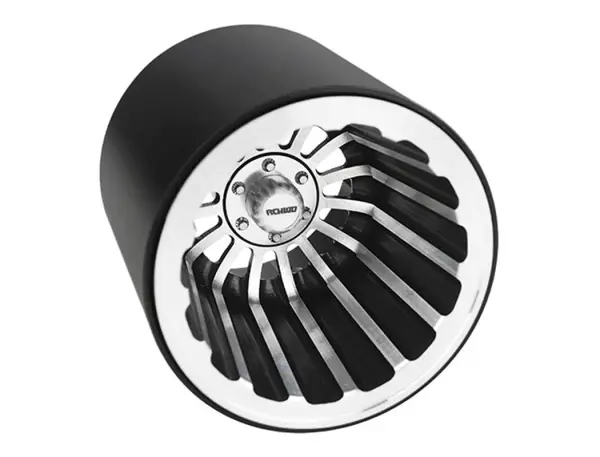

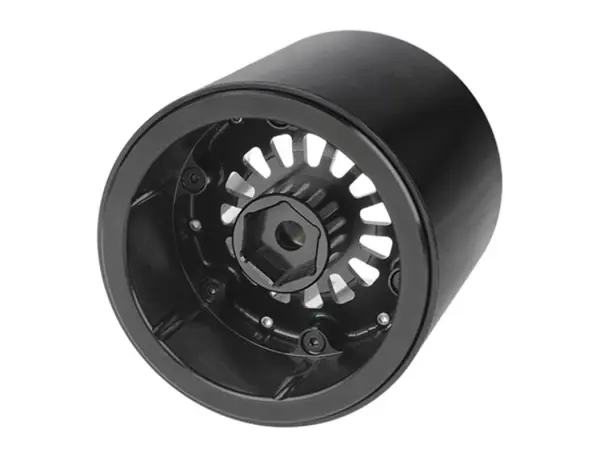

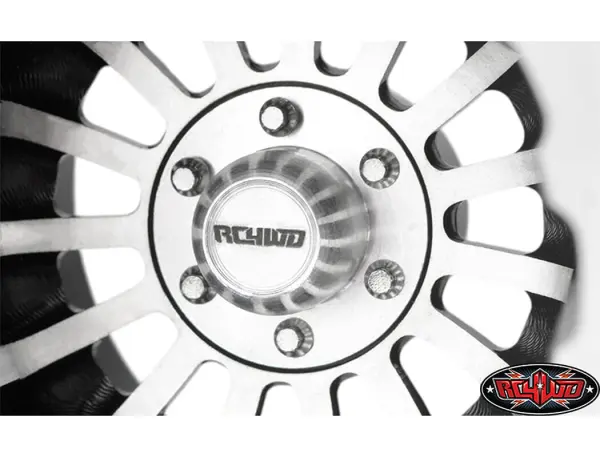

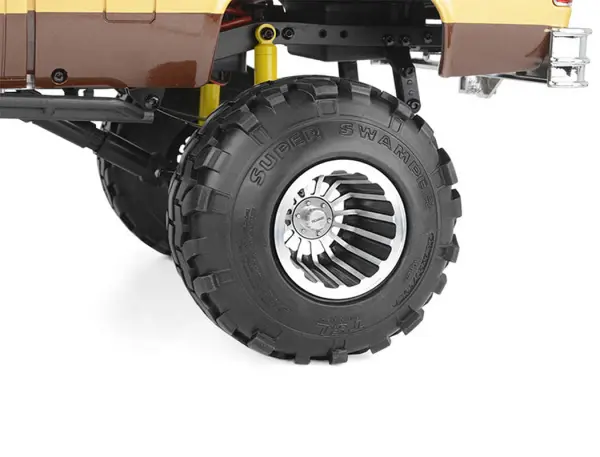

The RC4WD Turbine 1.9 Super Deep Dish Aluminium Beadlock Wheels, part number Z-W0097, are a set of four CNC-machined wheels for radio-controlled models. Each wheel is made from billet aluminium and has a silver anodised finish, with a super deep dish profile and beadlock construction.

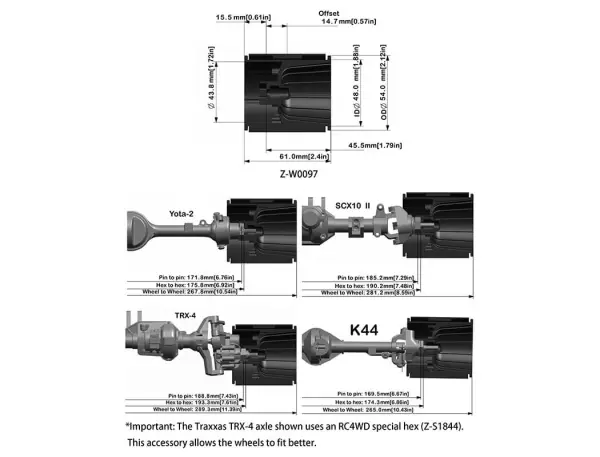

These 1.9-inch wheels use a standard 12 mm hex interface, giving suggested compatibility with models that use this wheel fitting. Their stated dimensions include a 54.0 mm outside diameter, 61.0 mm width and 14.7 mm negative offset. The centre hole measures 5.2 mm, while each wheel weighs 135 g.

Features

• CNC-machined construction
• Billet aluminium material
• Silver anodised finish
• Standard 12 mm hex fitting

Specifications

• Wheel size: 1.9 inches
• Outside diameter: 2.12 inches / 54.0 mm
• Width: 2.40 inches / 61.0 mm
• Centre hole outside diameter: 0.20 inches / 5.2 mm
• Negative offset: 0.57 inches / 14.7 mm
• Weight per wheel: 4.76 oz / 135 g

The set includes four RC4WD Turbine 1.9 Super Deep Dish Aluminium Beadlock Wheels. A miniature scale hex bolt tool is also supplied for M1.6 scale bolts, using a 1.5 mm hex size, to support work on the wheel hardware included with the design.

What's Included

• Four RC4WD Turbine 1.9 Super Deep Dish Aluminium Beadlock Wheels
• Miniature scale hex bolt tool for M1.6 scale bolts, 1.5 mm hex (Z-S1328)
