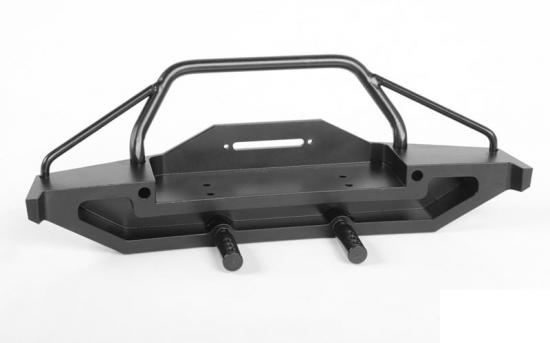

RC4WD Type B Machine Front Winch Bumper for TF2 RC4WD

The RC4WD Type B Machine Front Winch Bumper for TF2 (Z-X0053) is a durable, scale-accurate upgrade for Trail Finder 2 builds. Hand-welded heavy-duty steel tube construction, CNC-machined billet aluminium components and a black powder-coated finish provide strength, longevity and authentic looks on the trail.

Key Features

• Heavy-duty steel tube
• Hand welded
• Billet aluminium
• CNC machined
• Black powder-coated finish
• Corrosion resistant

Specifications

• Length: 6.93 in / 176.0 mm
• Height: 2.29 in / 58.1 mm
• Width: 2.55 in / 64.7 mm
• Weight: 7.12 oz / 201.0 g

What’s Included

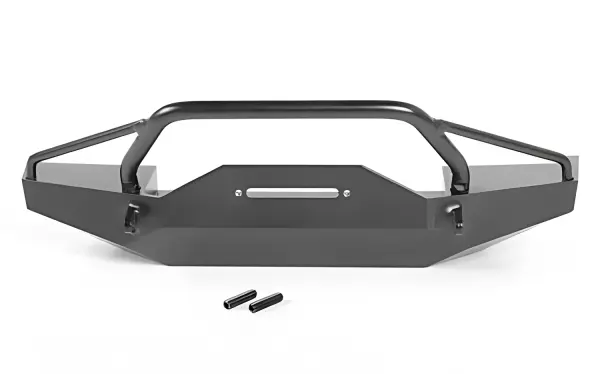

• 1x RC4WD Type B Machine Front Winch Bumper for TF2
• 2x M3 x 12 mm Set Screw (Z-S1057)

Optional Parts

• RC4WD 1/10 Warn Hawse Polished Aluminium Fairlead (Z-S1310)
• RC4WD 1/10 Warn Hawse Fairlead (Black) (Z-S1315)
• RC4WD 1/10 Warn 8274 Winch (Z-E0075)
• RC4WD 1/8 Warn Zeon 10 Winch (Z-E0069)
• RC4WD 1/10 Mini Warn 9.5cti Winch (Z-S1571)
• RC4WD 1/10 Warn 9.5cti Winch (Z-S1079)

Replacement Hardware

• M3 x 5 mm Set Screw (Z-S0125)
• M2.5 x 5 mm Set Screws (Z-S1771)
• M3 x 12 mm Set Screw (Z-S1057)

Suggested Compatibility

• RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024)
• RC4WD Trail Finder 2 "LWB" RTR w/Mojave II Four Door Body Set (Z-RTR0030)
• RC4WD Trail Finder 2 Truck Kit w/Mojave II Body Set (Z-K0049)
• RC4WD Trail Finder 2 Truck Kit "LWB" w/Mojave II Four Door Body Set (Z-K0058)
• RC4WD Trail Finder 2 Truck Kit (Z-K0054)
• RC4WD Trail Finder 2 Truck Kit "LWB" 1/10 Scale Long Wheel Base Chassis Kit (Z-K0059)
• RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler Body Set (Z-RTR0034)

Notes

• Installing the winch requires removal of the two bumper mounts on the bumper.

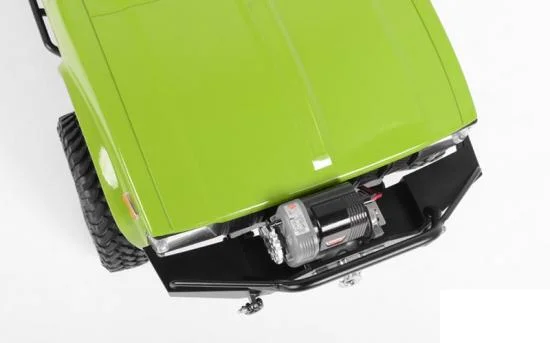

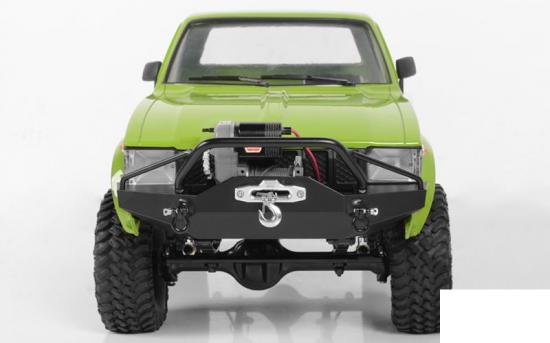

• Shown installed on RC4WD Trail Finder 2 RTR w/Mojave II Body Set (Z-RTR0024) with RC4WD 1/10 Warn 8274 Winch (Z-E0075), RC4WD 1/10 Warn Hawse Polished Aluminium Fairlead (Z-S1310) and King Kong Mini Tow Shackle (Z-S0075) for example (not included).

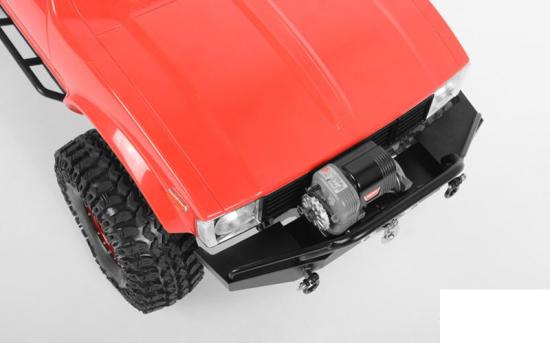

• Shown installed on RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler Body Set (Z-RTR0034) with RC4WD 1/10 Warn 8274 Winch (Z-E0075), RC4WD 1/10 Warn Hawse Polished Aluminium Fairlead (Z-S1310) and King Kong Mini Tow Shackle (Z-S0075) for example (not included).

Instruction Manual

• Click here to download
