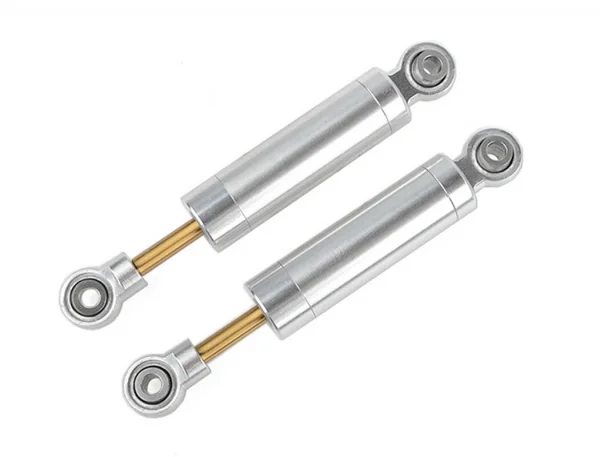

RC4WD Ultimate Scale Shocks 60mm (Z-D0086)

The RC4WD Ultimate Scale Shocks 60mm (Z-D0086) deliver precise damping and a highly scale look for 1/10 crawlers. CNC-machined from billet aluminium with a silver anodised finish, these shocks use an internal spring design with X-ring gaskets and titanium nitride coated shafts for smooth action and durability. Supplied as a pair.

Features

• CNC machined
• Billet aluminium
• Silver anodised finish
• Internal spring design
• Steel rod end ball
• X-ring gaskets
• Titanium nitride coated shock shafts

Specifications

• Hole to hole (compressed): 1.95in / 49.5mm
• Hole to hole (uncompressed): 2.36in / 60mm
• Overall length: 2.71in / 68.88mm
• Travel length: 0.41in / 10.5mm
• Shock body OD: 0.39in / 10.0mm
• Shaft OD: 0.11in / 3.00mm
• Each shock weighs: 0.31oz / 8.9g

What’s Included

• 2 x RC4WD Ultimate Scale Shocks 60mm

Suggested Compatibility

• RC4WD Trail Finder 2 Truck Kit "SWB" (Z-K0045)
• RC4WD Trail Finder 2 "LWB" 1/10 Scale Builders Kit (Z-K0065)
• RC4WD Trail Finder 2 Truck 1/10 Scale Builders Kit (Z-K0069)
• RC4WD Trail Finder 2 Truck Kit w/1982 Toyota Pickup Hard Body Complete Set (Z-K0070)
• RC4WD Marlin Crawler Trail Finder 2 RTR w/Mojave II Crawler Body Set (Z-RTR0034)
• RC4WD Trail Finder 2 RTR w/1985 Toyota 4Runner Hard Body Set (Red) (Z-RTR0063)
• RC4WD Trail Finder 2 "LWB" RTR w/ 1987 Toyota XtraCab Hard Body Set (White) (Z-RTR0064)
• RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Red) (Z-RTR0066)
• RC4WD Trail Finder 2 "LWB" RTR W/ Chevrolet K10 Scottsdale Hard Body Set (Black) (Z-RTR0067)
• RC4WD Trail Finder 2 RTR w/Chevrolet Blazer Body Set (Midnight Edition) (Z-RTR0068)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Blue) (Z-RTR0069)
• RC4WD Trail Finder 2 RTR w/1982 Toyota Pickup Hard Body Set (Red) (Z-RTR0070)

Notes

• Use blue (medium) thread lock on the bottom shock shaft rod end before installing to help keep it in place.
• The X-ring shocks are designed to be oil filled for smooth damping.
