RC4WD Wired Winch Control Unit (Z-S1089)
Brand: RC4WD
Part No: Z-S1089
Out Of Stock
Request Stock NotificationFinance options available at checkout.
Fits These Models (1)
Show all 1 models
Frequently Bought With
Other items customers often buy with the RC4WD Wired Winch Control Unit
Description
The RC4WD Wired Winch Control Unit (Z-S1089) enables winch operation from the third channel of your radio system. Designed for a transmitter with a 3-position switch (on/off/on), this compact, plug-and-play controller operates from 6V to 11.1V and includes instructions for easy setup.
Key Features
- Small, compact control unit
- Operating voltage: 6V to 11.1V
- Requires a 3-position third channel
- Easy plug-and-play installation
- Instructions included
- 30 day warranty
- Manufactured by RC4WD
Specifications

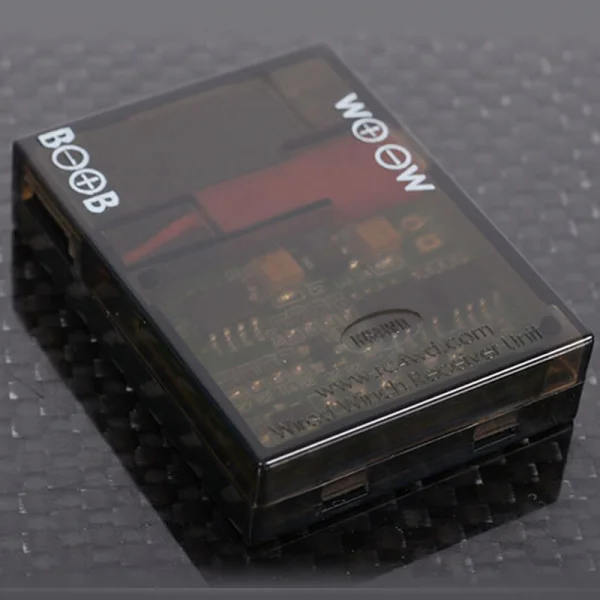

- Receiver unit size: 41mm (L) x 31mm (W) x 10mm (H)
- Receiver unit weight: 10g
- Wire length: 150mm (6in)
- Wires weight: 4g

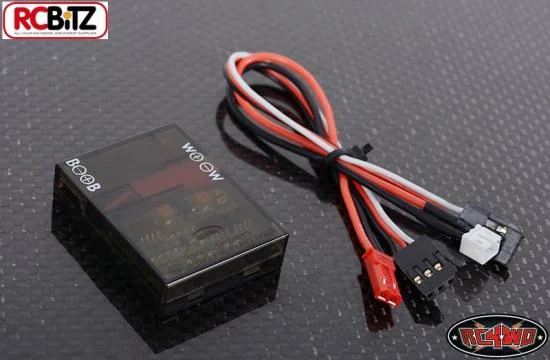

What’s Included
- 1x Wired Control Unit

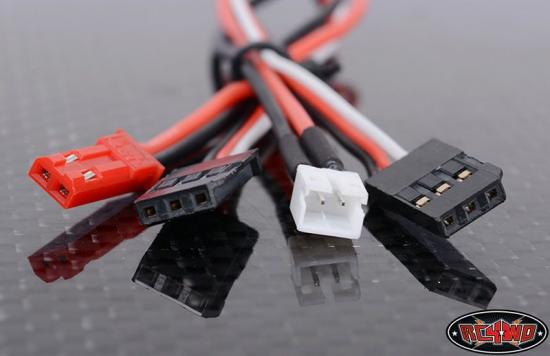

- 1x 6" Receiver/Receiver Power Wire
- 1x 6" Receiver/Winch Control Wire
Optional Parts
- Warn 1/10 9.5cti (Z-S1079) — suggested compatibility
- 3" Wiring Pack (Z-S1001) for shorter runs
- 9" Wiring Pack (Z-S0999) for longer runs
Replacement Parts
- Spare Empty Case for Wired Control Unit (Z-S0808)
Important Notes
- A radio with a third channel is required, using a three-position switch.
- If your radio lacks a three-position switch, a wireless controller unit is available (Z-S1092).
- This product is not waterproof.
- Cutting the control box wires will void the warranty.
- Some LiPo packs can exceed 11.1V; check voltage before use.
- For warnings, precautions, safety and damage limits, refer to the manufacturer.
Secured by Stripe
RC4WD Wired Winch Control Unit Manuals & Guides
Specifications
RC4WD Wired Winch Control Unit
This is the wired Winch Control Unit offered to allow operation function from your radio and receiver. This will allow you to control a winch with your remotes third channel.
Specifications:
Receiver
- Small Compact Size
- Operating Voltage 6V to 11.1V
- Requires 3 position Third Channel
- Easy Plug and Play
- Instruction Included
- Length: 1.6in / 41mm
- Width: 1.2in / 31mm
- Height: 0.39in / 10mm
- Weight: 0.35oz / 10g
- Length: 6in / 150mm
- Wires Weight: 0.14oz / 4g
- 30 Day Warranty
- Manufactured by RC4WD
What's Included:
- 1x Wired Control Unit
- 1x 6" Receiver/Receiver Power Wire
- 1x 6" Receiver/Winch Control Wire
- Warn 1/10 9.5cti 1/10 (Z-S1079)
- For Shorter Wires 3" Wiring Pack (Z-S1001)
- For Longer Wires 9" Wiring Pack (Z-S0999)
Replacement parts:
- Spare Empty Case for Wired Control Unit (Z-S0808)
- You will need a radio with a third channel to operate this controller.
- Your third channel needs to be a three position switch (on/off/on).
- If your radio does not have a three position switch, you can purchase a wireless controller unit. (Z-S1092)
- This product is not waterproof. You may be able to waterproof on your own, but this will void the manufactures warranty.
- For Warnings, Precautions, Safety and Damage Limits: Click Here
- If for any reason you cut the wires on the control box, this will void the warranty.
- Some Lipo battery voltage can be higher than 11.1 volts. Please be careful and check voltage before using your battery.
Instruction Manual:
- For Detailed Setup. Click Here
Key Info:
- Brand: RC4WD
- Part No: Z-S1089
- Barcode: 639302579299
- Fitment: Option Part
