RC4WD Y harness with Tamiya Connectors for Lightbars

The RC4WD Z-S1601 Y Harness with Tamiya Connectors provides simple, plug-and-play wiring for RC4WD LED light bars. Designed to let you power both your ESC and lights from a single battery, it uses durable black/red silica wire and includes a Futaba female lead for straightforward integration.

Features & Specifications

• Black and red silica wire
• 1x Tamiya male connector
• 1x Tamiya female connector
• 1x Futaba female connector
• Tamiya connector wire OD: 0.12in / 3mm
• Futaba connector wire OD: 0.08in / 2mm
• Total length: 7.87in / 200mm
• Weight: 0.46oz / 13.1g

What’s Included

• 1x Y Harness with Tamiya Connectors for Light Bars

Optional Parts

• Outcry Crawler Single Motor Electronic Speed Controller (ESC) (Z-E0007)

Suggested Compatibility

• RC4WD 1/10 High Performance LED Light Bar (20mm/.75") (Z-E0052)
• RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (40mm/1.5") (Z-E0054)
• RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (75mm/3") (Z-E0055)
• RC4WD 1/10 High Performance SMD LED Light Bar (100mm/4") (Z-E0056)
• RC4WD 1/10 High Performance SMD LED Light Bar (50mm/2") (Z-E0057)
• RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (100mm/4") (Z-E0059)
• RC4WD KC HiLiTES 1/10 C Series High Performance LED Light Bar (150mm/6") (Z-E0061)
• RC4WD 1/10 Baja Designs Stealth LED Light Bar (100mm) (Z-E0064)

Notes

• Allows the use of one battery to connect an ESC and LED light bar.
• Please consult your light bars’ voltage input before using this connector.

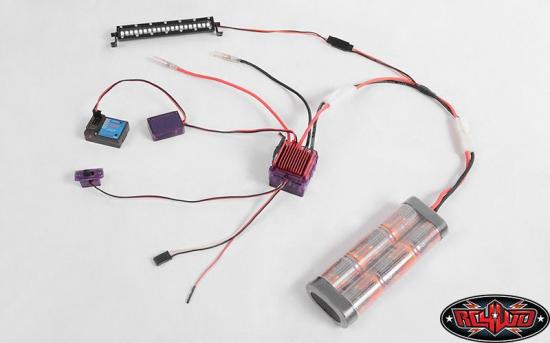

• Shown installed with 4-Channel XR4 2.4Ghz Blue Receiver (Z-R0008), RC4WD 1/10 High Performance SMD LED Light Bar (100mm/4") (Z-E0056), Outcry Crawler Single Motor ESC (Z-E0007) and battery for example (not included).
