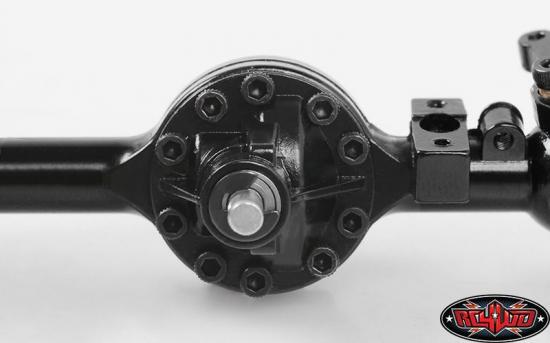

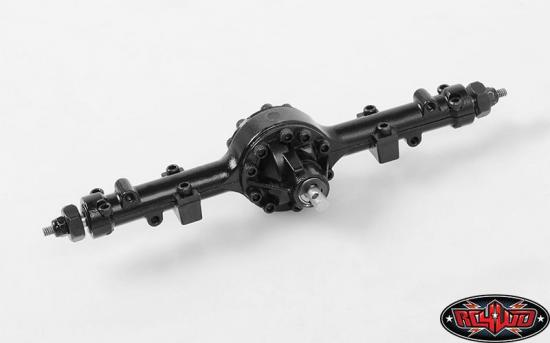

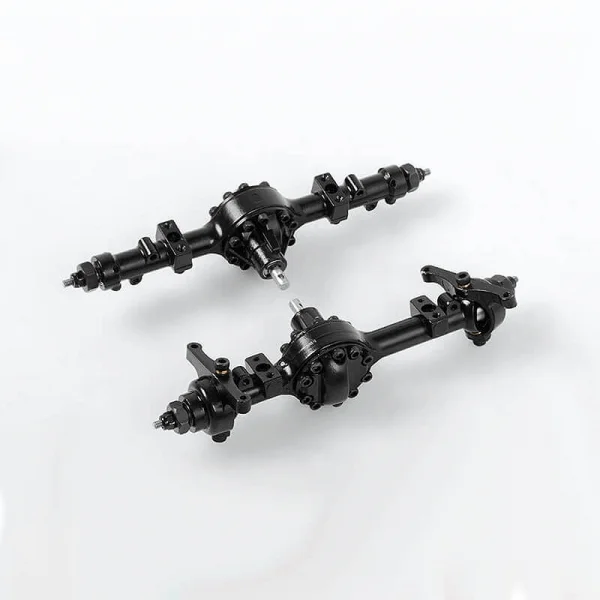

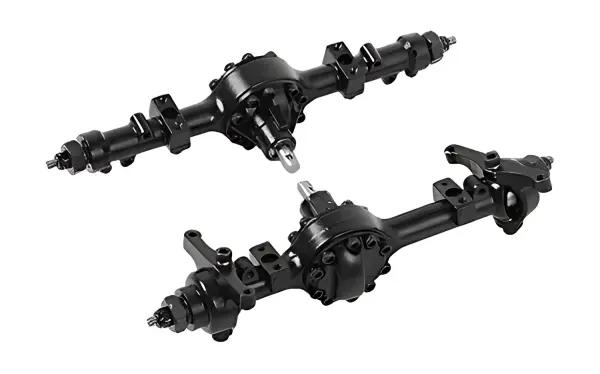

RC4WD Yota II 1/18 Cast Front & Rear Axle Set (Z-A0117)

The RC4WD Yota II 1/18 Cast Front and Rear Axle Set (Z-A0117) brings robust, scale detail to micro RC crawlers. Built around die cast zinc alloy housings with a powder coated finish, these axles feature full ball bearings, a removable diff cover and a 2.55:1 gear ratio for smooth, dependable running on 1/18 scale trucks.

Key Specifications

• Die Cast Zinc Alloy Housing
• Powder Coated
• 5mm Axle Output Shaft
• Full Ball Bearings
• Removable Diff Cover
• Gear Ratio: 2.55 : 1
• Designed for 1/18 Scale Truck
• Total Width: 4.02in / 102.2mm
• Hex to Hex Width: 3.63in / 92.2mm
• Pin to Pin Width: 3.50in / 89mm
• Pumpkin Height: 1.24in / 31.5mm
• Output Shaft Length: 0.21in / 5.5mm
• Output Shaft OD: 0.19in / 4mm
• 7mm Steel Wheel Hex
• Weight (Front): 2.04oz / 58g
• Weight (Rear): 1.65oz / 47g

What’s Included

• 1x Yota II 1/18 Cast Front and Rear Axle Set (Black)

Optional Parts

• Ballistic Fabrications Diff Cover for 1/18th Yota II (Fits Front or Rear Axle) (Z-S1813)
• RC4WD ARB Diff Cover for 1/18 Yota II Axle (Red) (Z-S1822)

Replacement Hardware

• 44x M1.6 x 3mm SHCS (Black)
• 4x M2 x 5mm SHCS (Black)
• 4x M1.6 x 4mm SHCS (Black) (Z-S1232)
• 4x M2 Nylock Nuts (Black) (Z-S0906)

Suggested Compatibility

• RC4WD 1/18 Gelande II RTR with D90 Body Set (Discontinued)

Shown installed on the RC4WD 1/18 Gelande II RTR with D90 Body Set for example; vehicle not included.
