RC4WD Yota II Axle Mounts for Baer Brake Systems Rotors and Calipers-Front RC4WD

The RC4WD Yota II Axle Mounts for Baer Brake Systems Rotors and Calipers – Front (Z-S1968) are designed to provide a clean mounting solution for RC4WD Baer Brake Systems rotors and calipers on Yota II front axle builds. The set includes brass knuckle bushings and the required metric fasteners to help complete a neat, scale installation.

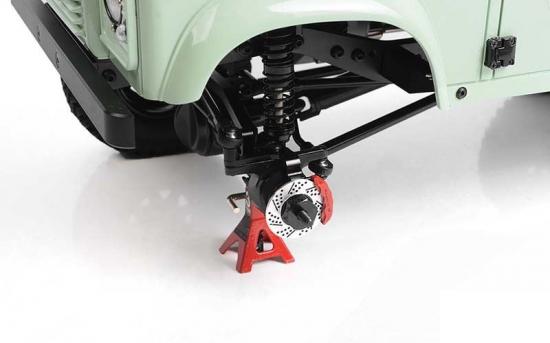

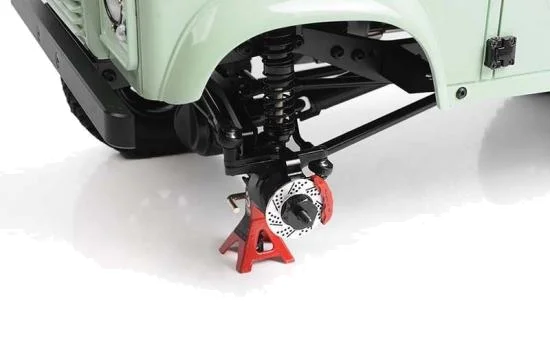

Shown in example images installed on the RC4WD Gelande II RTR with 2015 Land Rover Defender D90 Body Set (Heritage Edition) (Z-RTR0044) using the RC4WD Baer Brake Systems Rotor and Caliper Set (1.7"/1.55" Wheels) (Z-S1962), RC4WD Dick Cepek Matrix 1.55" Beadlock Wheels, and Chubby Mini 3 TON Scale Jack Stands (Z-S0731). Example items not included.

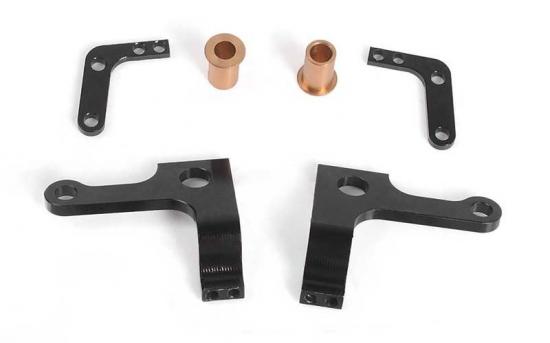

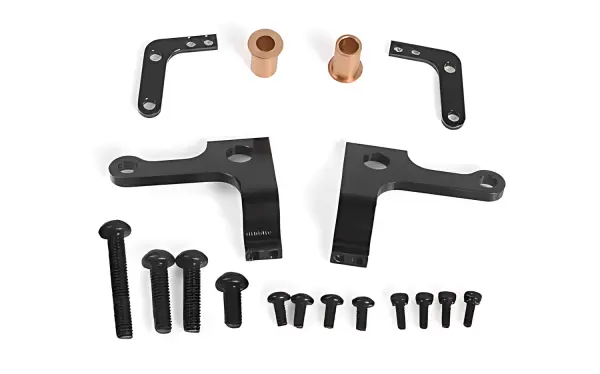

What’s Included

• 4x Mounts
• 2x Brass Knuckle Bushings
• 4x M1.6 x 4mm Steel Socket Head Cap Screws
• 4x M2 x 4mm Steel Button Head Cap Screws
• 2x M3 x 10mm Steel Button Head Cap Screws
• 1x M3 x 6mm Steel Button Head Cap Screw
• 1x M3 x 18mm Steel Button Head Cap Screw

Replacement Hardware

• Steel Button Head Cap Screws M3 x 10mm (Z-S0653)
• Steel Socket Head Cap Screws M1.6 x 4mm (Z-S1232)
• Steel Button Head Cap Screws M2 x 4mm (Z-S1096)
• Steel Button Head Cap Screws M3 x 6mm (Z-S0651)
• Steel Button Head Cap Screws M3 x 18mm (Z-S0657)

Instruction Manuals

• Download available from RC4WD.

Suggested Compatibility

• Yota II Ultimate Scale Cast Axle (Front) (Z-A0080)
