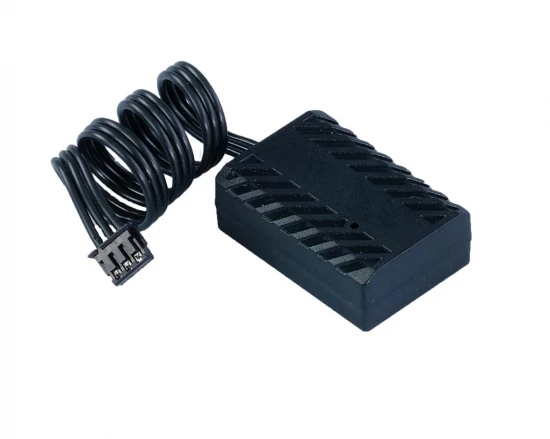

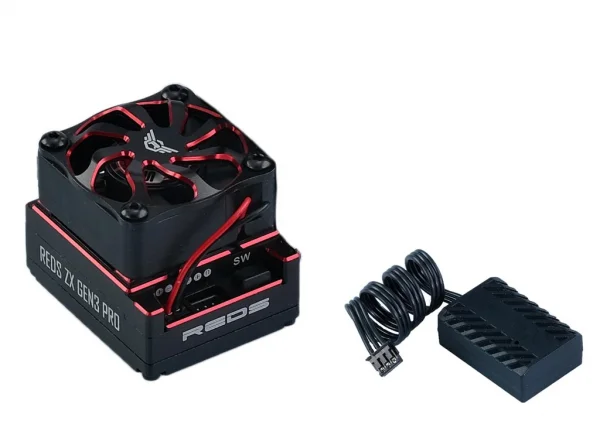

Reds ESC ZX Pro 160A 1:10 GEN3 + Bluetooth Module

The Reds ZX PRO GEN3 is a premium 1/10 competition ESC engineered for reliability and peak performance. Pairing advanced hardware with refined software, it delivers rapid response, precise control and robust protection. Supplied here as the Reds ESC ZX Pro 160A 1:10 GEN3 + Bluetooth Module (part number REDSPCO0019), it enables wireless setup via the Reds iOS/Android app with real‑time monitoring and data logging for race‑day insight.

A powerful 32‑bit microprocessor underpins lightning‑fast throttle and braking response, while the switch‑mode BEC provides up to 10A with adjustable output (5V–7.4V) to support high‑voltage servos. An aluminium case with integrated heat sink manages temperatures in demanding runs, and redesigned control algorithms enhance driveability lap after lap. Multiple safety protections and recognised racing compliance round out a true top‑tier speed controller.

Key Features

• 32‑bit microprocessor for exceptional processing speed and responsiveness
• Switch‑mode BEC delivering up to 10A with adjustable 5V–7.4V output
• Wireless connectivity via Reds iOS/Android app for easy setup, real‑time monitoring and data logging
• Aluminium case with heat sink for efficient heat dissipation and durability
• High power output with a 160A continuous rating for intense racing
• Redesigned algorithms for improved throttle control and braking precision
• Multiple protections: low voltage cut‑off, overheat and throttle signal loss
• Compliance with ROAR, BRCA and EFRA regulations

Specifications

• Current (Continuous): 160A
• Peak Current: 760A
• Input: 2–3S LiPo
• Supported Motors: 540 size, 2‑pole sensored brushless
• Suitable Motor: Over 3.5T
• BEC Output: 6V–7.4V @ 10A (switch‑mode, adjustable)
• Programming: Reds iOS and Android app
• Firmware Upgrade: Supported via iOS app
• Size: 37 × 38.2 × 31.5 mm
• Weight: 95 g (with wires)
• Waterproof: No

Suggested Compatibility

• 1/10 touring car and buggy platforms, stock and modified classes
• 2–3S LiPo power systems
• Sensored 540 size 2‑pole brushless motors over 3.5T

If you’re targeting consistent lap times and fine control under pressure, the REDS ZX PRO GEN3 160A offers a refined blend of power, tuning flexibility and reliability in a compact footprint. Part number REDSPCO0019.
