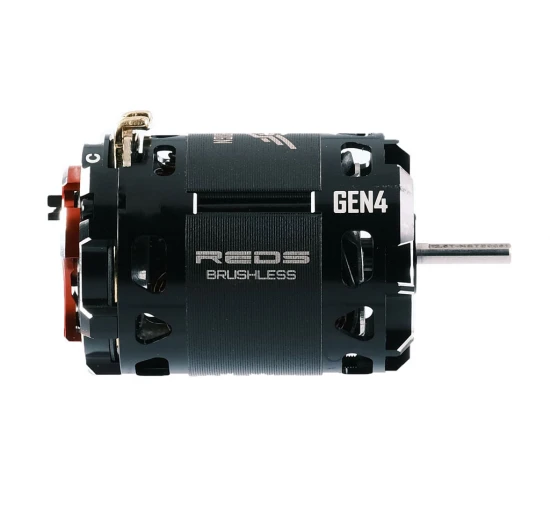

REDS VX4H 540 4.5T Brushless motor 2 poles sensored — image 1 of 3

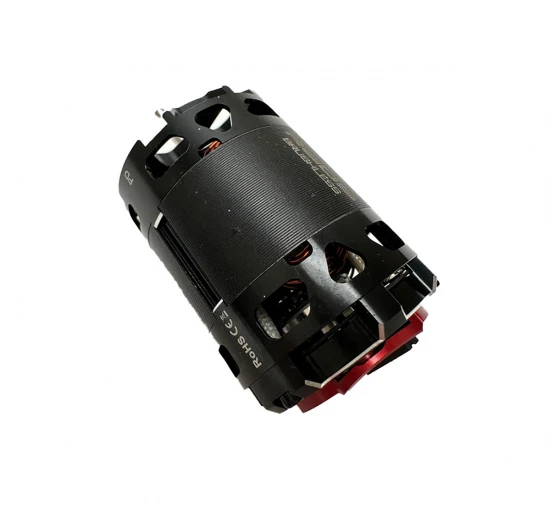

REDS VX4H 540 4.5T Brushless motor 2 poles sensored — image 2 of 3
REDS VX4H 540 4.5T Brushless motor 2 poles sensored — image 3 of 3
REDS VX4H 540 4.5T Brushless motor 2 poles sensored
REDS VX4H 540 4.5T Brushless motor 2 poles sensored
REDS VX4H 540 4.5T Brushless motor 2 poles sensored

REDS VX4H 540 4.5T Sensored Brushless Motor REDMTTE0050H

Brand: REDS

Part No: REDMTTE0050H

£99.16 RRP £104.38
Pre-Order

Finance options available at checkout.

Request Price Match Ask a Question Write a Review

Description

The REDS VX4H 540 4.5T sensored brushless motor, part number REDMTTE0050H, is a GEN4 1/10 electric motor with a 2-pole design. It is designed for controlled, consistent operation in competition applications, combining an optimised stator, low-resistance copper wire and a two-piece CNC-machined can to support electrical efficiency and heat dissipation.

The stator uses maximum low-resistance copper wire, low-resistance collector rings and gold-plated solder tabs. Together, these features are intended to reduce internal resistance and support higher RPM. The larger stator and revised can improve cooling compared with the previous REDS motor generation, while titanium screws help reduce iron losses.

Motor Features

A precision-balanced, high-temperature neodymium rotor provides the magnetic drive for the motor. Optional rotors are available separately to allow tuning for different track conditions. Optional ceramic bearings are also available for drivers seeking further changes to motor operation and durability under demanding conditions.

Extensive track testing is reported to have produced more consistent performance, lower operating temperatures and smoother, quieter running. Each motor is also available in a factory-selected version, offering a pre-selected setup for use out of the box. The Pro Stock version uses a super high-torque rotor with magnetic flux density reaching up to 1850 Gauss, along with a performance stator and titanium screws.

Specifications

  • Motor type: 1/10 electric brushless
  • Motor size: 540
  • Timing: 4.5T
  • Rotor design: 2-pole sensored
  • Rotor material: High-temperature neodymium
Free Shipping

On UK Orders over £100
Happy to Help

Helpful, friendly advice
28 Day Returns

Easy returns process
Secure Payments

Secured by Stripe

Specifications

Introducing the New Reds GEN4 1/10 Brushless Motors We are thrilled to announce the launch of our new GEN4 1/10 electric brushless motor, engineered to deliver superior performance and exceed the expectations of our customers and racing teams. The new VX GEN4 brings a host of advancements, enabling you to compete at the highest levels against the industry's top brands. Key Features: Optimized Stator Design: Utilizing new materials and an innovative design, the stator reduces magnetic losses, enhancing efficiency and heat dissipation. The new stator incorporates maximum low-resistance copper wire, providing very low internal resistance. This pure copper magnetic wire is combined with low-resistance collector rings and gold-plated solder tabs to guarantee maximum power and higher RPM. Enhanced Cooling Efficiency: The new 2-piece CNC-machined can, combined with a larger stator, offers increased cooling efficiency compared to previous generation REDS motors. Special Rotors: The precision-balanced neodymium high-temperature rotor increases performance, and optional rotors are available to help tune for different track conditions. Proven Reliability: Extensive track testing has demonstrated greater performance consistency, lower lap times, reduced operating temperatures, and smoother, quieter motor operation. High-Quality Components: Special titanium screws reduce iron losses, and optional ceramic bearings enhance performance and motor durability under extreme conditions. PRO STOCK Version: Pro Stock motors are assembled with super high torque rotors which increase magnetic flux density reaching up to 1850 Gauss, maximizing power and torque for lightning-fast acceleration. This variant also features a high-performance stator and titanium screws for unmatched performance. This motor represents a significant leap forward for drivers seeking speed, efficiency, and reliability in every competition. Stay tuned for more updates and official launch dates! Moreover, each motor is available in a factory-selected version, ensuring optimal setup and performance right out of the box.

Key Info:
  • Brand: REDS
  • Part No: REDMTTE0050H
  • Barcode: 761000972871
