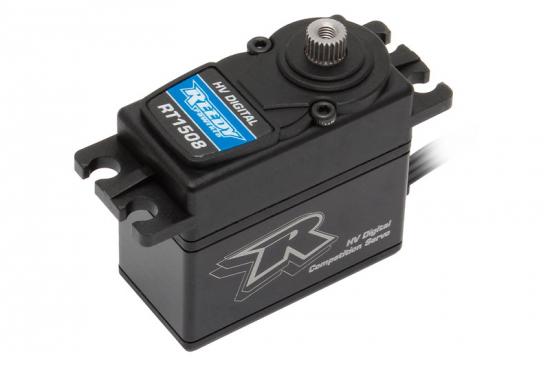

Reedy Rt1508 Digital HV Hi Torque Competition Servo
Brand: Reedy
Part No: AS27101
SORRY, THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.
Why not contact our team to see if an alternative is available?
Reedy’s HV Digital Competition Servos are race-proven and feature numerous enhancements including precision metal gears for added strength and smooth operation, and an advanced microprocessor that improves vehicle control and on-track performance. Its state-of-the-art aluminum mid case lowers operating temperatures for fade-free operation.High voltage compatibility means that LiPo RX batteries or increased ESC BEC output voltage can be used without fear of damaging sensitive internal components. Powerful motors, reliable electronics, and high voltage versatility, and a choice of hi-torque and hi-speed models make Reedy’s HV Digital Competition Servos the logical choice for a variety of racing classes and skill levels.Features
• Water and dust resistant
• Aluminum mid-case
• Powerful coreless motor
• Ultra-precise metal gears
• Dual ball bearings
• High-voltage compatible
• 25 tooth spline
| Specifications | RS1206 | RT1508 |
| Part # | 27100 | 27101 |
| Input (V) | 6.0 - 7.4 | 6.0V- 7.4 |
| Speed (sec/60°), 6.0V | 0.08 | 0.10 |
| Speed (sec/60°), 7.4V | 0.06 | 0.08 |
| Torque (kg-cm,/oz-in), 6.0V | 10.2/141.6 | 13.5/187.4 |
| Torque (kg-cm,/oz-in), 7.4V | 11.9/165.2 | 15.3/212.4 |
| Dimensions (mm) | 39.5 x 20.0 x 38.6 | 39.5 x 20.0 x 38.6 |
| Weight (g) | 61.6 | 61.6 |
| Spline | 25 | 25 |
