Reedy Micro Brushless Motor Sonic 1525 AS27504

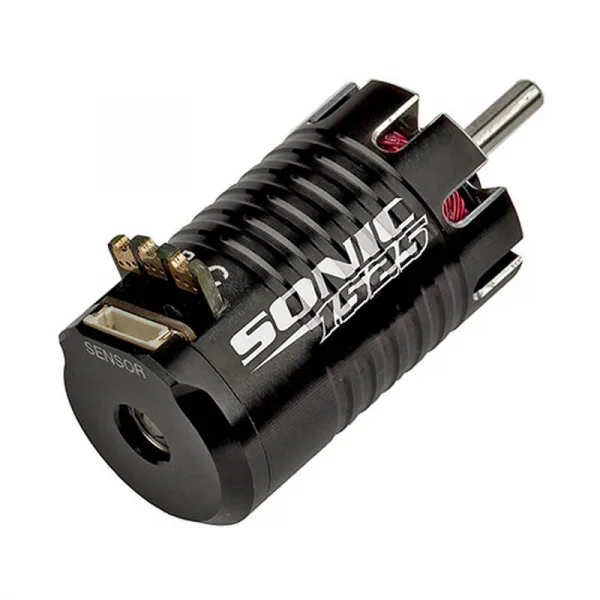

The Reedy Sonic 1525 3500Kv Micro Brushless Motor, part AS27504, is a sensored micro brushless motor for 1:28 and other micro competition vehicles. It uses brushless technology with a CNC-machined lightweight can, high-strength rotor and precision ball bearings. The motor is designed to provide precise throttle control, consistent power delivery and smooth operation in compact competition vehicles.

The CNC-machined can helps reduce operating temperature and overall motor weight. Its high-strength rotor supports consistent power delivery and braking, while the precision ball bearings allow high rotational speeds with reduced heat build-up. Sensored operation provides the throttle response expected for racing applications, making this motor a suggested choice for compatible micro competition vehicle setups.

Features

The Sonic 1525 combines a lightweight motor can with a high-strength rotor and precision ball bearings. Together with sensored operation, these features support smooth running, consistent braking and controlled throttle input. The motor is intended for compact applications where its small dimensions and 3500Kv specification suit the vehicle setup.

Specifications

• Maximum voltage: 8.4V (2S)
• Motor rating: 3500Kv
• Diameter: 15 mm
• Length: 25 mm
• Shaft diameter: 2 mm
• Weight: 17 g
