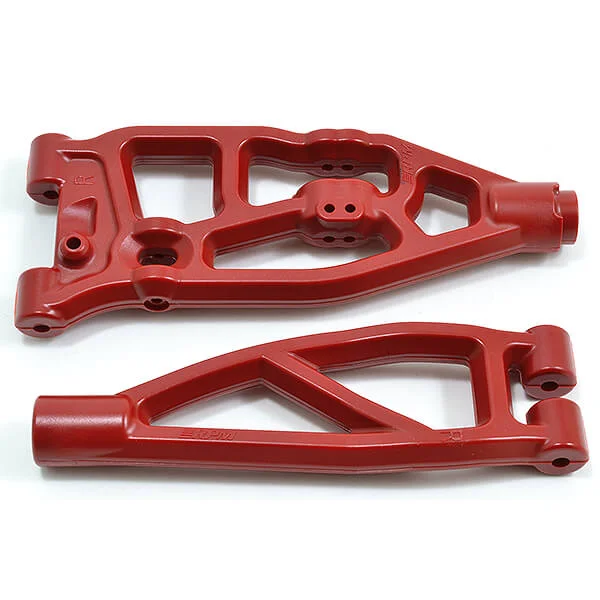

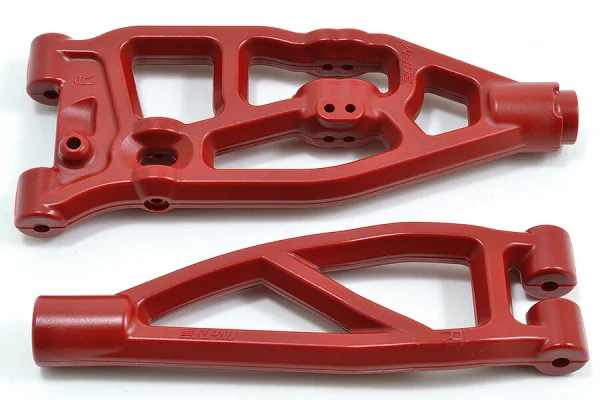

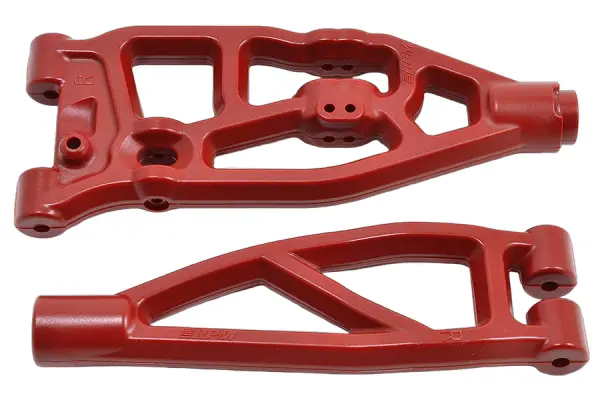

RPM ARRMA Right Front Arms Red 6S V5/EXB - RPM81609
Brand: RPM
Part No: RPM81609
In Stock: Usually ships same day
Finance options available at checkout.
Frequently Bought With
Other items customers often buy with the RPM Arrma Upper/Lower Right Front Arms - Red - 6S Kraton/Outcast/Fireteam
Description
Upgrade the right-front suspension of your ARRMA 6S platform with the RPM Arrma Upper/Lower Right Front Arms in red (RPM81609). Designed to accommodate V5/EXB geometry changes, these arms are beefier to reduce flex and sharpen handling. An additional outboard shock-mount option allows a lower ride height for a reduced centre of gravity and more confident cornering. Moulded from RPM’s engineering-grade nylon, they’re built for durability when conditions turn tough.
Design Highlights
- Thicker architecture: lower arms approx. 30% thicker, upper arms over 22% thicker for improved strength.
- Reduced flex for more predictable suspension performance and handling.
- Extra outboard shock mount to lower the suspension profile and centre of gravity.
- Caster spacer elimination and widened inner hinge area for a more stable upper arm.
- Moulded from a tough, engineering-grade nylon blend.
Features
- Stock replacement a-arms for V5 / EXB models
- Extra shock mount hole for added suspension versatility
- Fits most 6S version models
- Sold as one upper and one lower in each package
Suggested Compatibility
- V5 / EXB editions of ARRMA Kraton, Notorious, Talion, Fireteam & Outcast 6S.
- Reverse compatible with earlier models per manufacturer guidance.
Tech Notes
- Each package includes one upper and one lower right-front arm.
- One left and one right package is needed for each vehicle.
- Suggested replacement for ARRMA 330655 (upper) and ARRMA 330656 (lower).
Version Notes
- V5 & EXB: Suggested stock replacement for ARRMA 330655 and 330656.
- V4 & earlier: Requires 1 – ARRMA ARA713032 Shock Mount Pin and 1 – ARRMA ARA330645 End Cap; suggested to replace AR330218 & AR330219.
Secured by Stripe
RPM Arrma Upper/Lower Right Front Arms - Red - 6S Kraton/Outcast/Fireteam Manuals & Guides
Specifications
RPM 6S Front A-arms fit V5 / EXB editions of the ARRMA Kraton, Notorious, Talion, Fireteam & Outcast. The design modifications we incorporated accommodate changes made by ARRMA for V5 and EXB versions of these vehicles. However, they are reverse compatible for older models.
Beefier: Our A-arms are significantly beefier than our original 6S version A-arms. Lower A-arm support beams are 30% thicker while upper A-arms are more than 22% thicker. The added thickness not only improves durability and strength, it also reduces flex. Less flex equates to more predictable suspension performance and handling.
Extra Suspension Options: The lower A-arm has an added shock mount hole further outboard. This additional position provides a lower profile suspension set-up. The shocks lay down a little further, dropping the ride height for a lower center of gravity. A lower center of gravity equates to higher corner speeds.
Caster Clip Elimination: As for the upper A-arm, we eliminated the caster spacers. This gave us room to widen the arm at the inner hinge pin mount. The extra width creates more of an “A” shape, stabilizing the upper A-arm. A more stable A-arm improves steering and suspension performance while adding strength and durability.
All RPM A-arms are molded from our nearly indestructible blend of engineering grade nylons. Tough materials equate to performance you can rely on when the conditions are at their worst!
Tech Notes: RPM ARRMA Kraton, Talion, Notorious, Fireteam & Outcast A-arms are sold as one upper and one lower in each package. One left and one right package is needed for each vehicle. Our A-arms replace the upper arms from ARRMA 330655 and the lower arms from ARRMA 330656.
Version Notes:
V5 & EXB models: Stock replacement A-arms for ARRMA 330655 and ARRMA 330656.
V4 and earlier models: Requires 1 – ARRMA ARA713032 Shock Mount Pin & 1 – ARRMA ARA330645 End Cap. Replaces stock ARRMA AR330218 & AR330219.
- Stock replacement a-arms for V5 / EXB models
- Extra shock mount hole for added suspension versatility
- Fits most 6S version models
- Sold as one upper and one lower in each package
Key Info:
- Brand: RPM
- Part No: RPM81609
- Barcode: 672415816097
- Fitment: Option Part
Additional Categories:
