Savox 1256 Servo - 20Kg/cm - 0.15 Sec
Brand: Savox
Part No: SAV-SC1256TG
THIS ITEM IS DISCONTINUED AND NO LONGER AVAILABLE.
PLEASE SEE ITEM #SAV-SC1256TG+ AS A REPLACEMENT

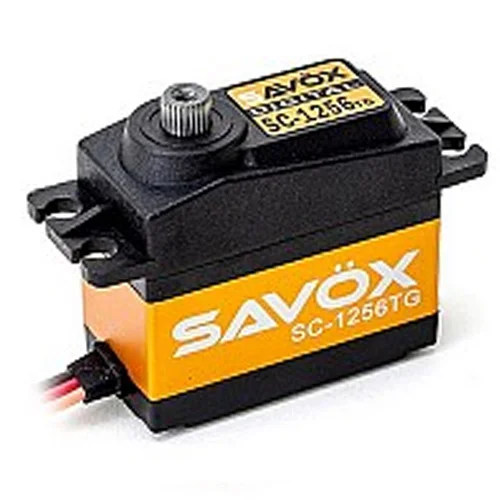

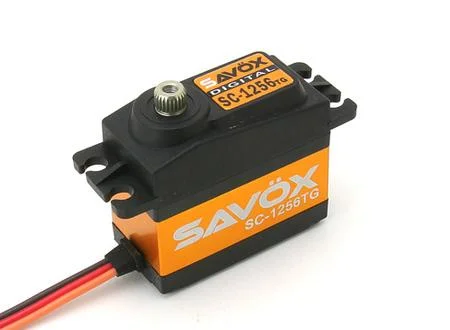

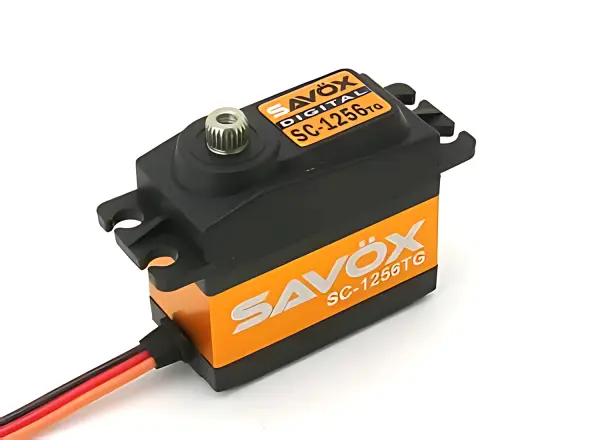

The Savox SC-1256TG (SAV-SC1256TG) is a high-torque, coreless digital servo delivering up to 20 kg-cm at 6.0V with a swift 0.15 sec/60°. Built with titanium/alloy gears and an aluminium heat-sink case, it combines strength, precision and efficient cooling in a standard-size footprint.
Key Features
- Powerful output: up to 20 kg-cm torque at its size
- Lightweight design, around 20% lighter than comparable units
- Coreless motor for smoother, faster and more efficient response
- Aluminium case helps maintain cool, consistent operation
- Precision titanium metal gears for durability and accuracy
Specifications
- Dimensions: 40.3 x 20 x 37.2 mm
- Weight: 52.4 g (weight excludes wires or horns)
- Speed (sec/60°): 0.18 @ 4.8V; 0.15 @ 6.0V
- Torque (kg-cm): 16 @ 4.8V; 20 @ 6.0V
- Gears: Titanium/Alloy
- Case: Aluminium heat sink
Suggested Compatibility
- 1/8th scale buggy steering
- Big foot trucks
- Crawler models
Secured by Stripe
SAVOX HIGH TORQUE CORELESS DIGITAL SERVO [email protected]
The new SC-1256 standard size coreless digital servo is leading edge technology with super high 12 bits resolution and super strong Titanium Gears.
Savox SC-1256TG Servo Features:
- Extremely powerful with 20kg-cm torque at its size
- Extraordinarily light in weight, 20% lighter than its kind in the field
- The Coreless motor inside has brought the output performance to the top level - smoother, faster and more efficient
- The metallic case design not only exudes an exquisite style but helps the operating to stay cool and smooth.
- Super strong and precise-made Titanium metal gear form as the solid framework of our servo. Our design will make “Crumbled Gear” history.
- Ideal for TOC, steering servo on 1/8th scale Buggy, Big Foot and Crawler.
Spec Check:
- Dimensions: 40.3 x 20 x 37.2mm
- Weight: 52.4g**
- Speed (sec/60°): @4.8v 0.18, @6.0v 0.15
- Torque (kg/cm): @4.8v 16, @6.0v 20
- Gear: Titanium/Alloy
- Case: Aluminium Heat Sink
**Weight listed does not include wires or horns.
Unsure which servo you need for your model?
Visit our Savox Servo Soultion Centre and find the ideal servo for your needs.
Key Info:
- Brand: Savox
- Part No: SAV-SC1256TG
- Barcode: 4710006990125
- Max Voltage: 6v (NiMh)
- Gear Material: Metal
Standard Shipping
£3.95 to most of the UK
Express Shipping
£6.95 to most of the UK
Worldwide Shipping
Available at checkout
Reviews
No specific product reviews yet, why not write one?WRITE A REVIEW
Questions & Answers
No you would need a low profile one like this SAV-SB2265MG
This would fit that car but is not waterproof you would be better looking at
SAV-SW1210SG then use this servo horn FTAR012BK
No you'd want a large scale servo for the DBXL-E
Savox use a 25t spline system
Yes these will run fine on 6v
Yes I believe so
Yes that would fit
Yes that should work well on a Savage
Yes that should fit
So the 1256 would be great as a truggy steering servo - but max voltage is 6v.
If you want something that can run 7.4v we'd go for say SAV-SB2270SG
Yes, this is standard size so should fit that no problem.
